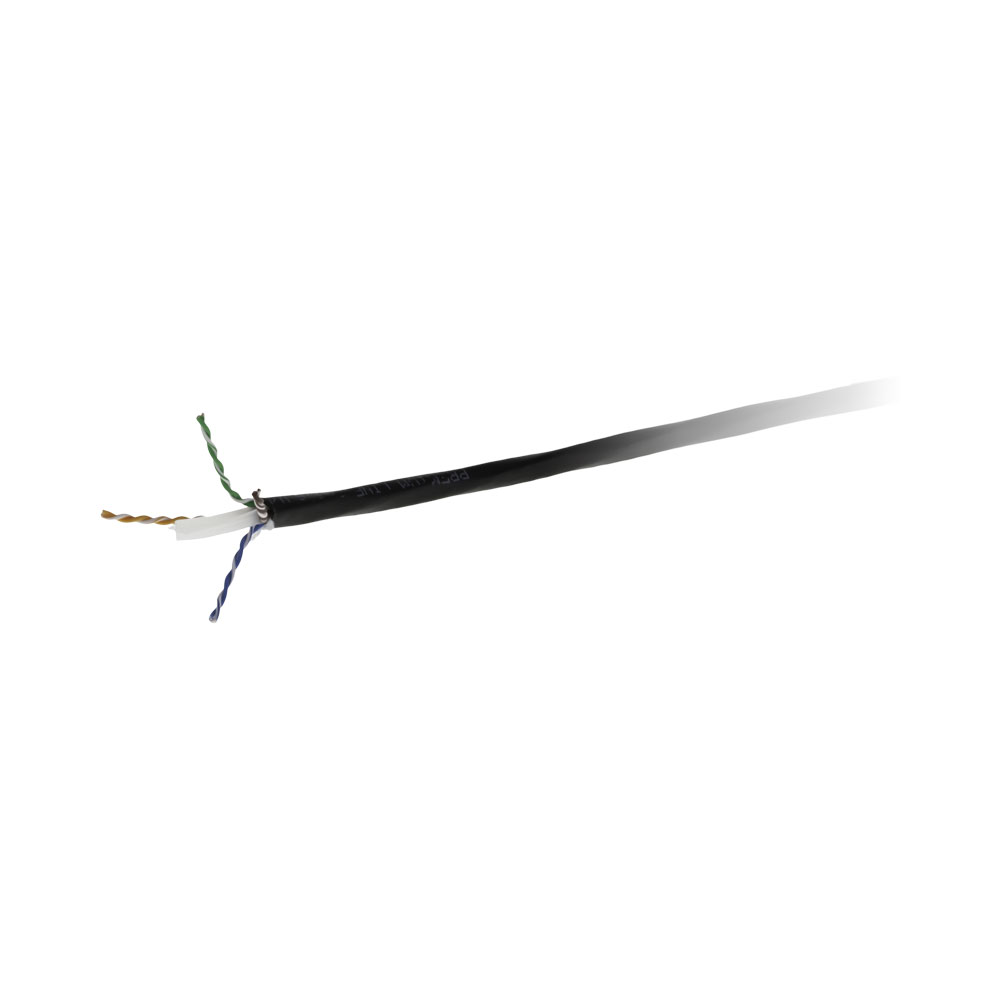

500M ROLL CAT6 OUTDOOR SOLID NETWORK CABLE BLACK

LinkQnet CAT6 Solid Outdoor Network Cable – Black (Sold per Meter or 500m Drum) The LinkQnet CAT6 Outdoor Network Cable is built for reliable, high-performance networking in demanding outdoor environments. Featuring solid 23AWG copper conductors and a UV-resistant double jacket, this cable delivers stable Gigabit data transmission while protecting against sunlight, weather and environmental exposure. Ideal for outdoor networking, surveillance systems and long-distance LAN installations, it ensures dependable connectivity where durability and performance matter most.

Key features:
• CAT6 Gigabit Performance – Supports high-speed Ethernet networking with up to 250MHz bandwidth • 23AWG Solid Copper Conductors – Ensures reliable signal transmission and stable network performance • UV-Resistant Outdoor Jacket – Black polyethylene sheath protects against sunlight and harsh outdoor conditions • Dual Jacket Construction – PVC inner sheath with additional outdoor PE layer for enhanced durability • Cross Divider Design – Reduces crosstalk and improves signal integrity between twisted pairs • Standards Compliant – Meets ISO 11801, TIA/EIA-568-C.2 and EN50173 structured cabling standards • Wide Operating Temperature Range – Reliable operation from -20°C to +70°C • Ideal for Outdoor Installations – Perfect for surveillance, outdoor networking and long-distance LAN deployments SPECIFICATIONS CONDUCTOR • 23AWG Solid Bare Copper (0.57mm) INSULATION • Polyethylene PAIR COLOURS • Blue / White-Blue • Green / White-Green • Orange / White-Orange • Brown / White-Brown PRIMARY SHEATH • PVC • Nominal OD: 6.1mm SECONDARY SHEATH • Black UV-Resistant Polyethylene • Nominal OD: 7.5mm CROSS DIVIDER • Polyethylene FIRE SAFETY RATING • IEC 60332-1 TEMPERATURE RANGE • Installation: 0~50°C • Operational: -20~70°C ELECTRICAL CHARACTERISTICS (AT 20°C) • DC Resistance: 80 Ohms/Km Max. • Resistance Unbalance: 2% Max. • Mutual Capacitance: 42 nF/km Max. • Capacitance Unbalance: 1000 pF/km Max. • Skew: 400 ns/km Max. • Velocity of Propagation: 68% (0.68 × 3 × 10⁸ m/s) • Characteristic Impedance (1–100MHz): 100 ±15 Ohms • Characteristic Impedance (100–250MHz): 100 ±(15 + 0.05 (f-100)) Ohms
