EASY FIBER LC SINGLE MODE FIBER OPTIC CONNECTOR

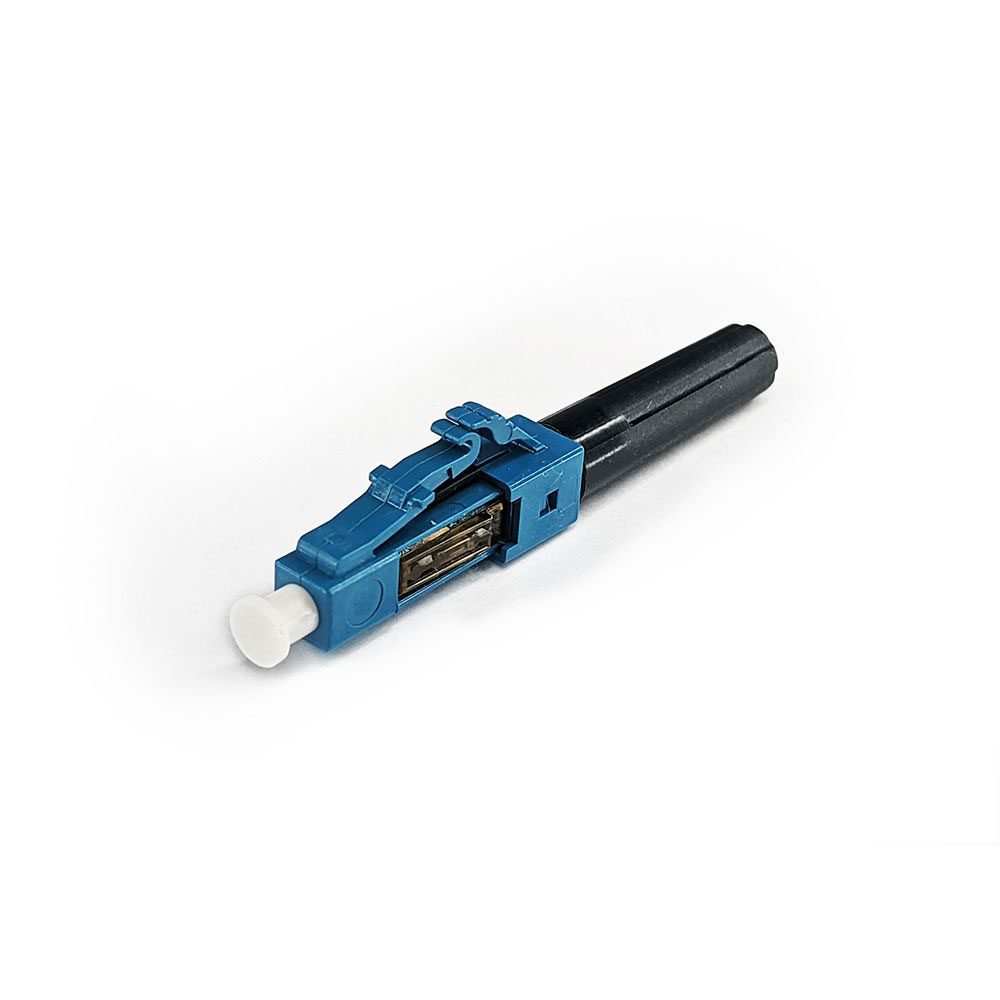

EasyFiber EF-CON-SM-LCZ Field-Assembly LC Single Mode Fiber Connector The Easyfiber Field‑Assembly LC Single Mode Fiber Connector is a field-installable LC single-mode fiber optic connector designed to make onsite termination quick and reliable without the need for epoxy, polishing, or specialized tools. It features a pre-polished LC UPC end face and is compatible with both single-mode (OS1 & OS2) and common multimode fibers (OM2, OM3, OM4) as well as 250 μm, 900 μm, and 2.0 mm cable formats, including distribution and zip-cord styles. The connector includes a built-in verification window and a self-centering alignment groove to help ensure correct fiber placement, and its “one-click” button mechanism enables fast termination – typically in around two minutes – making it ideal for network installations, repairs, and upgrades where field termination is needed.

Key features:
• LC type connectors • Pre-polished for UPC • Compatible with single mode (OS1 & OS2) & multimode (OM2, OM3 & OM4) cable • Compatible with 250μm, 900μm & 2.0mm cable, including distribution and zip-cord formats • No proprietary tools required • No epoxy, crimping or polishing required • Built-in verification window showing proper termination • Self-centering alignment groove for easy & reliable insertion of the fiber optic strand • Built-in button for one click termination & locking jig release • Average termination time around two minutes • Re-usable (five or less termination cycles recommended)
