FANVIL A11 5W POE+ OUTDOOR SIP AUDIO INTERCOM

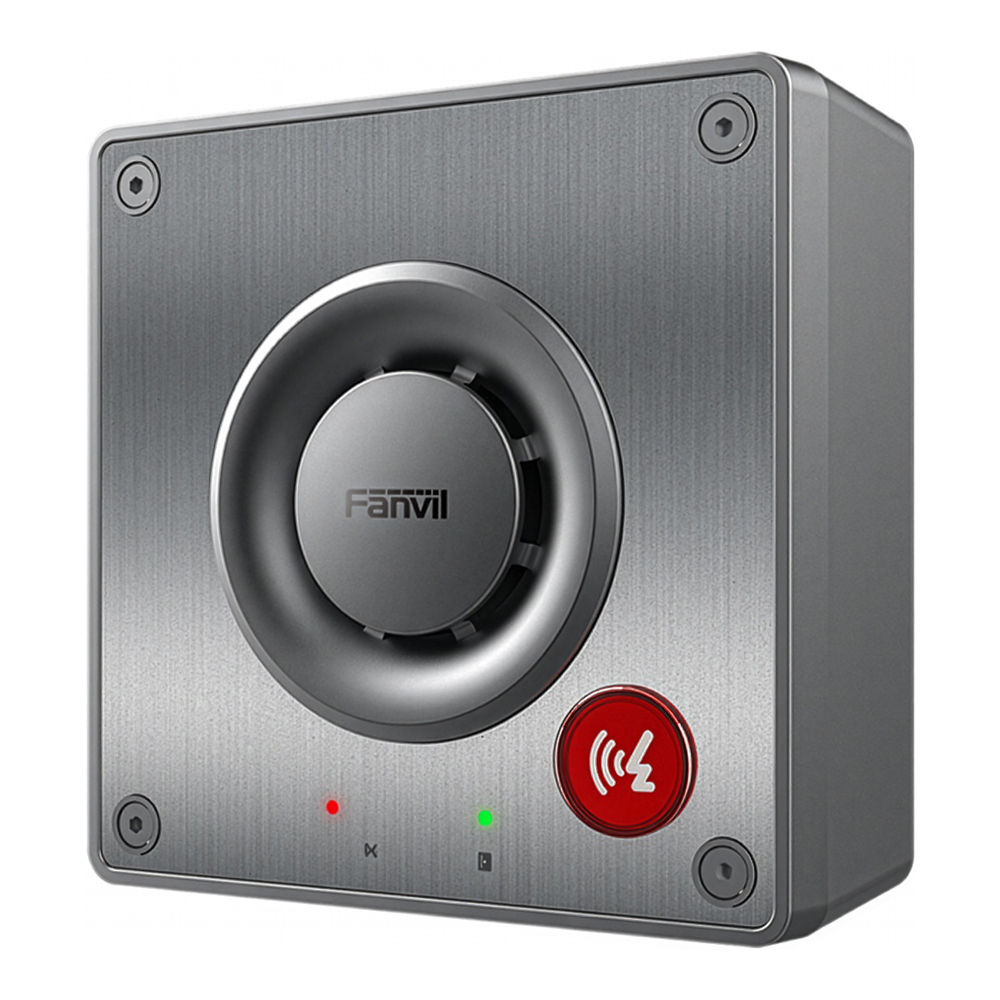

Fanvil A11 5W PoE+ Outdoor SIP Audio Intercom Powerful Outdoor Communication for Harsh and Noisy Environments. The Fanvil A11 is a rugged outdoor SIP audio intercom designed for industrial facilities, access points, public spaces and other demanding environments. Its 5W high-power speaker and turbo sound chamber deliver clear, powerful audio, while dual microphones with intelligent AEC, ANR, AGC and AVC processing help maintain natural two-way communication in noisy surroundings. A remote pickup range of up to 5m supports effective voice capture across larger areas. The stainless steel front panel and aluminium-alloy body provide IP66 weather protection and IK10 vandal resistance. With PoE+, dual SIP lines, multicast broadcasting, microSD storage, relay control, alarm inputs and line-level audio output, the A11 integrates communication, broadcasting and security functions in one compact device.

Key features:
• 5W High-Power Speaker – Turbo sound chamber design delivers clear and powerful audio in noisy outdoor environments • Dual-Microphone Noise Reduction – Advanced microphone processing improves voice clarity during two-way communication • Intelligent Audio Processing – AEC, ANR, AGC and AVC algorithms help reduce echo, background noise and volume fluctuations • Up to 5m Voice Pickup – Captures speech from a greater distance for flexible installation in industrial and public areas • Full-Duplex Hands-Free Audio – Enables natural two-way conversations without push-to-talk operation • IP66 Weather Protection – Dustproof and water-resistant construction for exposed outdoor installations • IK10 Vandal Resistance – Rugged housing helps protect the intercom against impact and deliberate damage • Stainless Steel and Aluminium Construction – Provides corrosion resistance and durability in demanding environments • Dual SIP Lines – Supports two independently configurable SIP accounts • PoE+ Connectivity – Combines network data and power through a single Ethernet cable • Programmable Call Button – Supports speed dial, intercom, multicast, IP broadcasting and other configurable functions • Multicast and MP3 Broadcasting – Supports live announcements and stored audio playback • microSD Card Support – Enables local audio storage, recording and preset broadcast content • Integrated Relay Output – Supports compatible electric locks, alarms and other access-control equipment • Dual Alarm Inputs – Connects switches, door contacts, infrared probes, vibration sensors and other input devices • Line-Level Audio Output – Connects to an active speaker or external amplifier for expanded sound coverage • Flexible Installation – Supports standard wall mounting or optional flush mounting with the EX611 bracket SPECIFICATIONS GENERAL • SIP Lines: 2 • Programmable Keys: 1 • Voice Pickup Range: up to 5m • Speaker Output: 5W • Speakerphone: Full-Duplex Hands-Free • Local Storage: microSD Card, up to 256GB • Call Functions: Call, Answer, Reject, Call Waiting, Speed Dial and Auto Answer • Broadcast Functions: Multicast, Dynamic Multicast and MP3 Broadcasting AUDIO • Wideband Codecs: G.722 and Opus • Narrowband Codecs: G.711a/u, G.729, iLBC, G.723 and G.726 • Audio Processing: AEC, ANR, AGC and AVC • DTMF: In-Band, RFC2833 and SIP INFO • Microphones: Dual-Microphone Array • Audio Output: 1× Line-Level Output • Line-Out Impedance: 1,000Ω NETWORK • Ethernet Port: 1× 10/100Mbps RJ45 • Network Modes: IPv4, IPv6 or IPv4 and IPv6 • IP Configuration: Static IP, DHCP or PPPoE • SIP: SIP v1 and SIP v2 • SIP Transport: UDP, TCP or TLS • Media Security: SRTP • VPN: L2TP and OpenVPN • Network Features: VLAN, LLDP, QoS and 802.1X • Provisioning: HTTP, HTTPS, DHCP Option 66, SIP PnP and TR-069 • Management: Web Portal, Syslog, Configuration Import/Export and Firmware Upgrade INTERFACES • Relay Output: 1× Short-Circuit Output • Relay Rating: Up to 30V DC 2A or 125V AC 0.5A • Active Switching Output: 12V DC 500mA • Short-Circuit Inputs: 2 • Tamper Alarm Switch: 1 • Audio Output: 1× 2-Pin Terminal • DC Input: 1× 2-Pin Terminal • Storage Slot: 1× microSD Card Slot POWER • PoE Standard: IEEE 802.3at PoE+, Class 4 • DC Input: 12~24V DC 2A • PoE+ Power Consumption: 1.38~9.1W • DC Power Consumption: 0.83~7.4W • Power Priority: PoE Takes Priority When PoE and DC Power Are Connected Simultaneously PHYSICAL • Protection Rating: IP66 • Vandal Resistance: IK10 • Front Panel Material: Stainless Steel • Housing Material: Aluminium-Alloy • Installation: Wall-Mounted or Flush-Mounted • Dimensions With Wall Bracket: 100.95 × 100 × 45mm • Working Temperature: -40~70°C • Storage Temperature: -40~80°C • Working Humidity: 10~95% NOTES • The A11 is an audio-only intercom and does not include a built-in camera • The EX611 flush-mounted bracket is an optional accessory sold separately • A compatible PoE+ switch or 12~24V DC 2A power supply is required • The IP66 and IK10 ratings apply to the device housing
