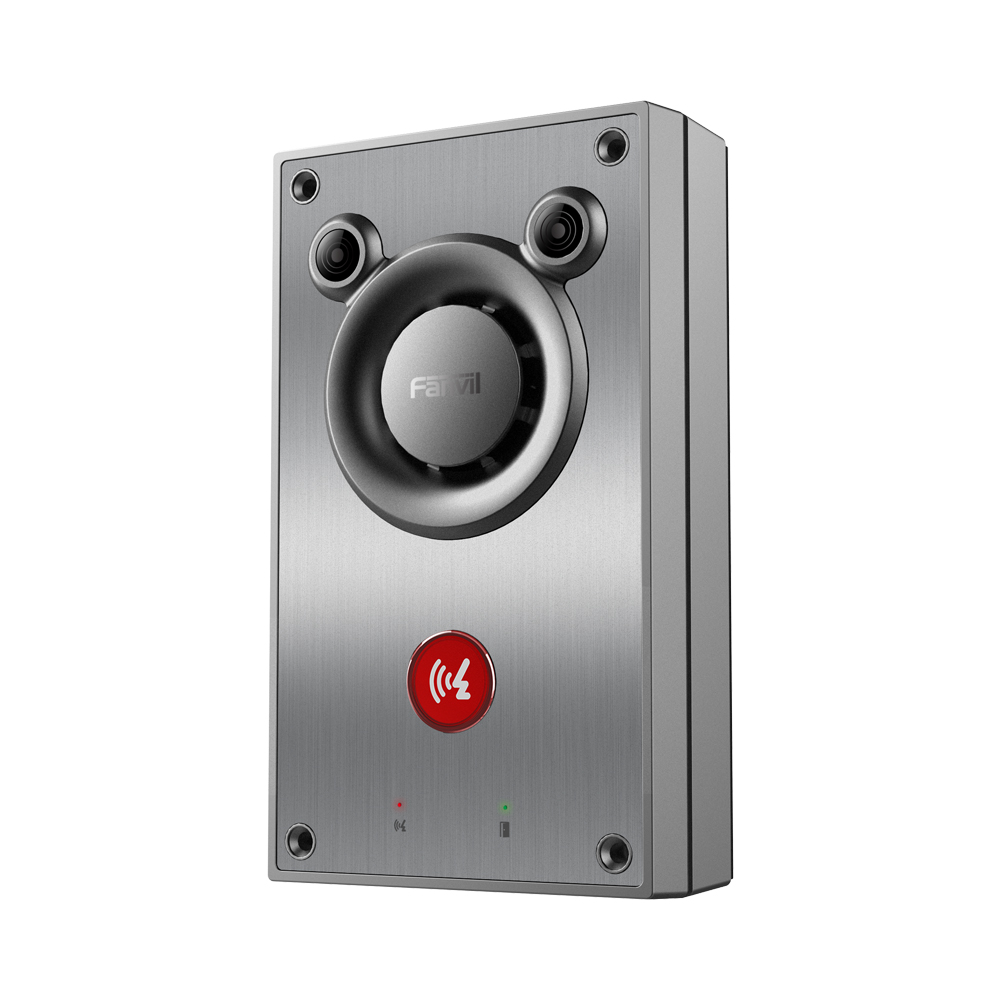

FANVIL A12 OUTDOOR AUDIO INTERCOM WITH 10W SPEAKER

Fanvil A12 Outdoor Audio Intercom with 10W Speaker Fanvil A12 audio intercom is a brand-new device featuring a built-in 10W speaker and a unique turbo sound chamber design, delivering impressive audio performance. It utilises Fanvil’s advanced dual-microphone noise reduction technology and voice enhancement algorithms, ensuring clear audio capture even in noisy environments. Additionally, it combines a stainless steel panel with an integrated aluminium-alloy structure, making it not only aesthetically pleasing but also corrosion-resistant, and suitable for various harsh environments.

Key features:
• Excellent Sound Quality – With a unique turbine cavity design, bringing extraordinary audio • Intelligent Audio – Equipped with AEC, ANR, AGC, AVC speech algorithms to ensure clear communication in complex environments • Loud Sound – 10W Speaker, 90dB hands-free call and 100dB broadcast – sound shock • Remote Pickup – Remote pickup can reach up to 5m and accurately capture every word • Self-Check Function – Voice loop self-check, simplifies maintenance and reduces cost • Recording Broadcast – Built-in SD card slot supports recording and preset broadcast – flexible and diverse • Stylish and Durable – Stainless steel panel with an aluminium-alloy structure, corrosion resistance and up to IK10 anti-theft standard • Protection Grade – IP66 Waterproof and dustproof grade, suitable for all kinds of harsh environment • Friendly Interaction – Large 27mm backlit button, dual status indicator (call, control), intuitive and friendly operation • High Compatibility – Compatible with SIP-based mainstream IP PBX / softswitch / IMS platforms, such as Asterisk, Broadsoft, 3CX, Metaswitch, Elastix, Avaya, etc • Alarm Light – Built-in 1× wet node output, can drive the external alarm light • Rich Interfaces – Audio line output, short circuit input / output, Wiegand, USB, RS485, to meet diverse needs SPECIFICATIONS SYSTEM • OS: Linux • Appearance: Front Shell – Stainless Steel, Bottom Shell – Aluminium-Alloy • DSS Key: 1× • Dimensions: 205 × 120 × 47mm • SIP Lines: 2× • Tamper-Proof: Yes • Third-Party IP Camera Integration: Supported • Auto-Provisioning: DHCP / TR069 / SIP PnP • ONVIF: Supported • Call LED: Yes • Door LED: Yes AUDIO AND VIDEO • HD Audio: Yes • Wideband Codec: G.722, Opus • Broadcast Codec: G.722, Opus, MP3 • Narrowband Codec: G.711A/U, G.729A/B, iLBC, G.723.1, G.726-32K • Microphone: 2× • Microphone Pickup Distance: up to 5m • Power Amplifier: 10W Class D • Speaker Power: 10W • Full Duplex (1m): 90dB • Half Duplex (1m): 100dB • Broadcast (1m): 100dB • Acoustic Echo Cancellation: Yes • Noise Reduction: Yes INTERFACES • PoE: PoE+ • DC Power: Supported • TF Card Slot: SD Card (Max. 256GB) • Audio Interface: 1× Audio Output (1KΩ) • Relay: 2× (Max. DC 30V 2A, AC 125V 0.5A) • Short-Circuit Output: 2× (1× Wet-Node) • Short-Circuit Input: 2× • RS485 Interface: 1× • Ethernet Port: 1× RJ45 • USB Interface: 1× • Installation: Flush-Mounted / Wall-Mounted PROTECTION AND ENVIRONMENT • Protection Rating: IP66, IK10 • Operating Temperature: -40~70°C
