FANVIL I504W SIP INDOOR STATION 7INCH WIFI

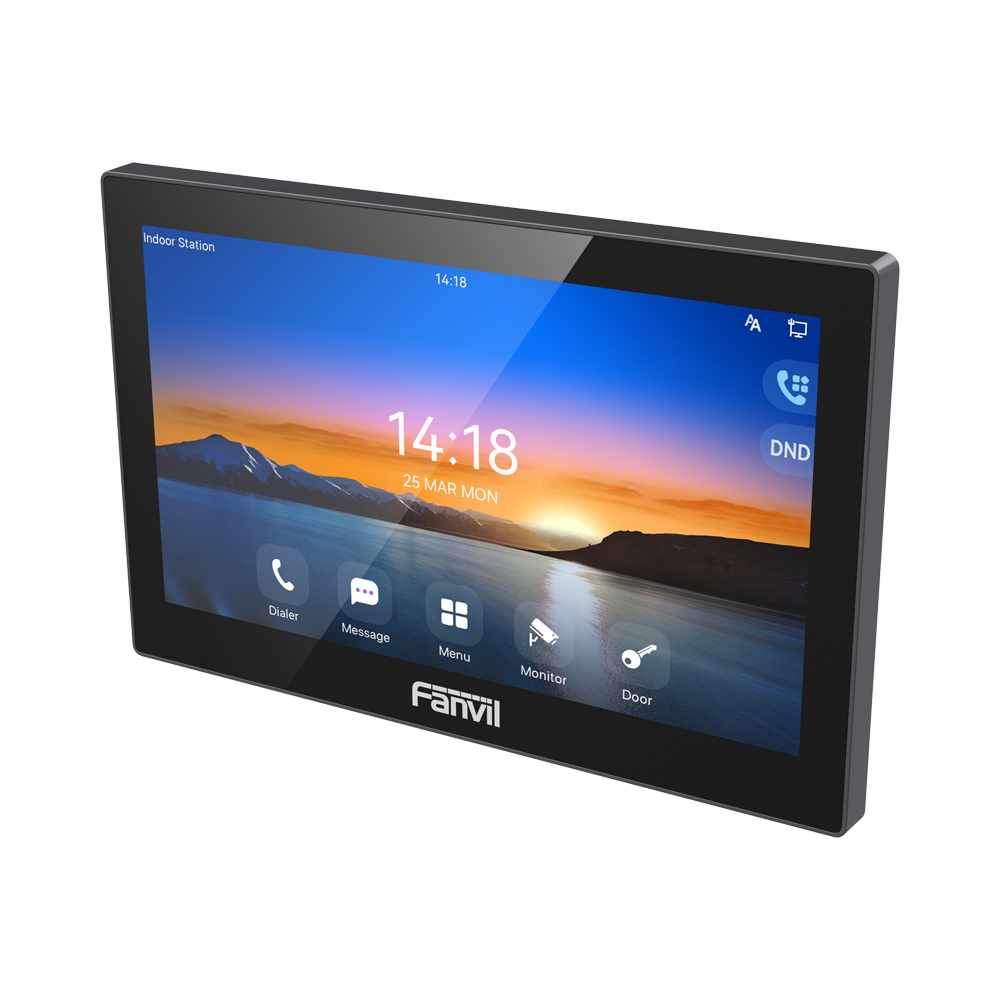

Fanvil I504W SIP Indoor Station The i504W is a 7-inch touch screen indoor station, featuring a stylish design and intuitive UI. With a variety of expansion interfaces, it easily connects with security devices for features like two-way intercom, remote door opening, and alarms. Perfect for residential communities, villas, office buildings, and more, it delivers a safe and convenient living experience.

Key features:
• 7‑inch capacitive colour touch‑screen (1024×600) for intuitive operation • Built‑in Wi-Fi support (2.4 GHz & 5 GHz) in the “W” version, giving wireless installation flexibility • PoE (Power over Ethernet) support and also external DC power option for flexible setups • Multiple sensor and security interfaces: alarm inputs, doorbell input, RS485, etc – enabling integration into security systems • High‑quality audio via a 2W speaker and acoustic echo cancellation (AEC) for hands‑free calls • Video and intercom support: can monitor third‑party IP cameras, support remote door unlocking, etc SPECIFICATIONS • Panel / Body Material: ABS plastic • Screen: 7‑inch colour capacitive touch screen, resolution 1024×600 • Speaker: 2W built‑in • Wi-Fi (i504W): 2.4 GHz / 5 GHz • Network: 10/100 Mbps Ethernet adaptive • 8 alarm inputs • 1 short‑circuit output • 1 door‑bell input • RS‑485 interface (reserved) for extended integration • PoE: 802.3af; power consumption ~3.65‑6.64W • External adapter: DC12V/1A; consumption ~2.71‑5.53W • Temperature: ‑10 °C to 50 °C • Storage temperature: ‑40 °C to 80 °C • Humidity: 10%‑90% non‑condensing • Audio Codec support: Narrowband (G.711a/u, G.723.1, G.726, G.729AB, iLBC), Wideband (G.722, Opus) • Video support: Hardware decoding H.264 / H.265 optional; resolution up to 1080p
