IECLOCK FEMALE KETTLE LOCKABLE CONNECTOR – RIGHT-ANGLED AND REWIREABLE

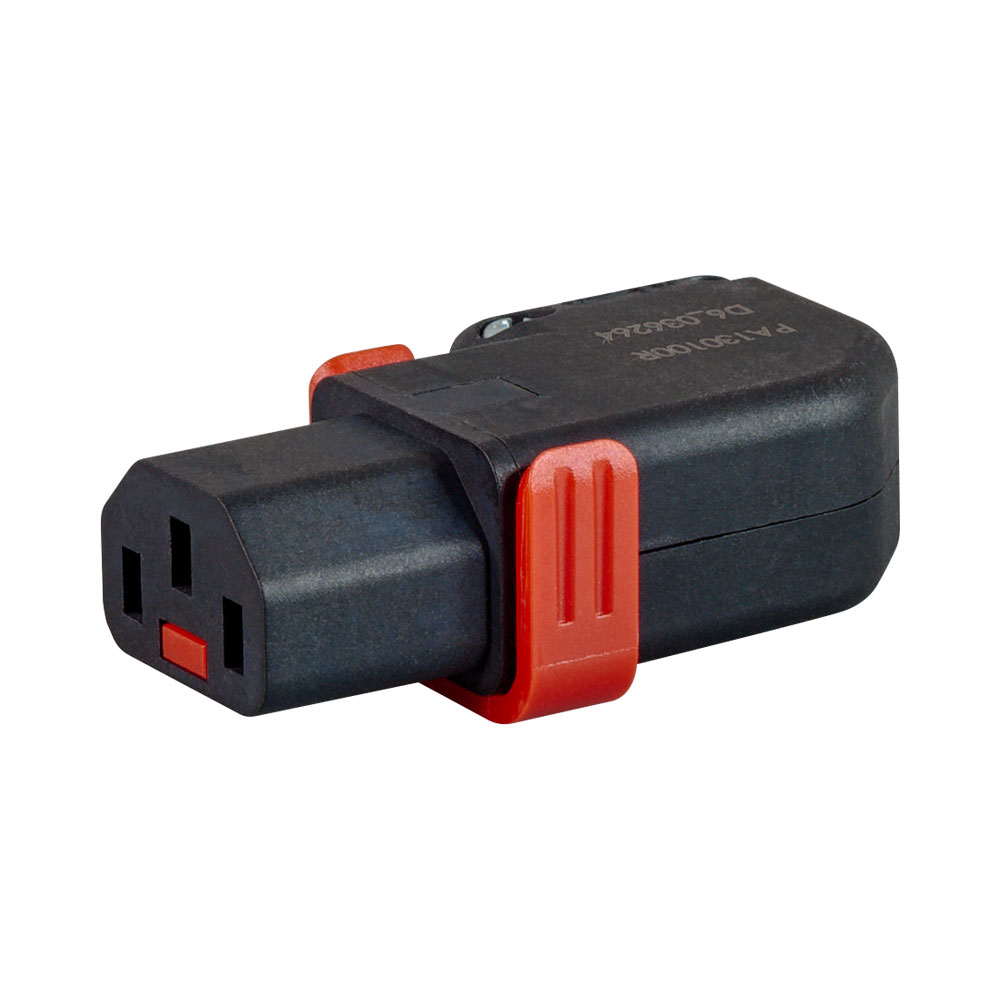

IECLock Female Kettle Lockable Connector – Right-Angled and Rewireable Lock it in. Power with confidence. The LinkQnet IEC Female Kettle Lockable Connector is built for secure, vibration-resistant power connections in demanding IT and AV environments. Its lock-in mechanism prevents accidental disconnections, while the angled, rewireable design ensures a clean fit in tight spaces – ideal for racks, PDUs and critical equipment.

Key features:
• Lockable IEC C13 Connector – Prevents accidental power loss • Right-Angled Design – Perfect for tight rack and cabinet installations • Rewireable Construction – Easy cable termination and maintenance • Anti-Vibration Locking Mechanism – Stays connected in high-movement environments • Easy-Grip Release Tab – Quick, safe disconnection when needed • Dual-Screw Housing Design – Slotted and cross-head screws allow easy installation with common tools • Cold-Condition Rated Appliance Inlet – Designed for reliable performance in low-temperature environments SPECIFICATIONS Electrical Ratings • Rated Current and Voltage: 10A Max. @250V • Dielectric Strength: 1.5kV Max. • Withdrawal Force: >100N Materials • Outer Body and Chassis: Nylon (PA66), LSZH, RAL9004 Signal Black • Cable Restraint: Nylon (PA66) • Housing Screws and Cable Restraint Screws: Steel, Nickel Plated • Lock Pivot Lever: Polycarbonate • Red Handle: Polycarbonate LSZH, RAL3020 Traffic Light Red • Terminal Block and Sliding Terminal: Brass • Terminal Screws: Steel, Yellow Passivated • Spring and Locking Blade: Spring Steel (Locking Blade Zinc Plated) Terminal and Mechanical • Terminal Capacity: 3-Core Cable, 1.5mm² Typical (up to 2.5mm² Max.) • Torque Values: Terminal Screws: 0.4Nm, Strain Relief Clamping Screws: 0.3Nm • Flammability Rating: Equivalent to UL94V-0 • Protection Class: Suitable for Class I Appliances, Complies with IEC EN 61140 Environmental • Ambient Operating Temperature: 25°C • Cold Condition Use: Suitable for Cold Environments Physical Dimensions • Overall Length: 60.4mm • Body Width: 30.1mm • Body Height: 21.1mm • Connector Face Width: 22.7mm • Pin Section Length: 21.1mm Standards and Compliance • EN 60320-1:2015 (KEMA-KEUR File: 35-102059) • UL 60320-1 (UL File E475619) • CSA C22.2 No. 60320-1-11 • AS/NZS 60320.1 (SAA File 151920)
