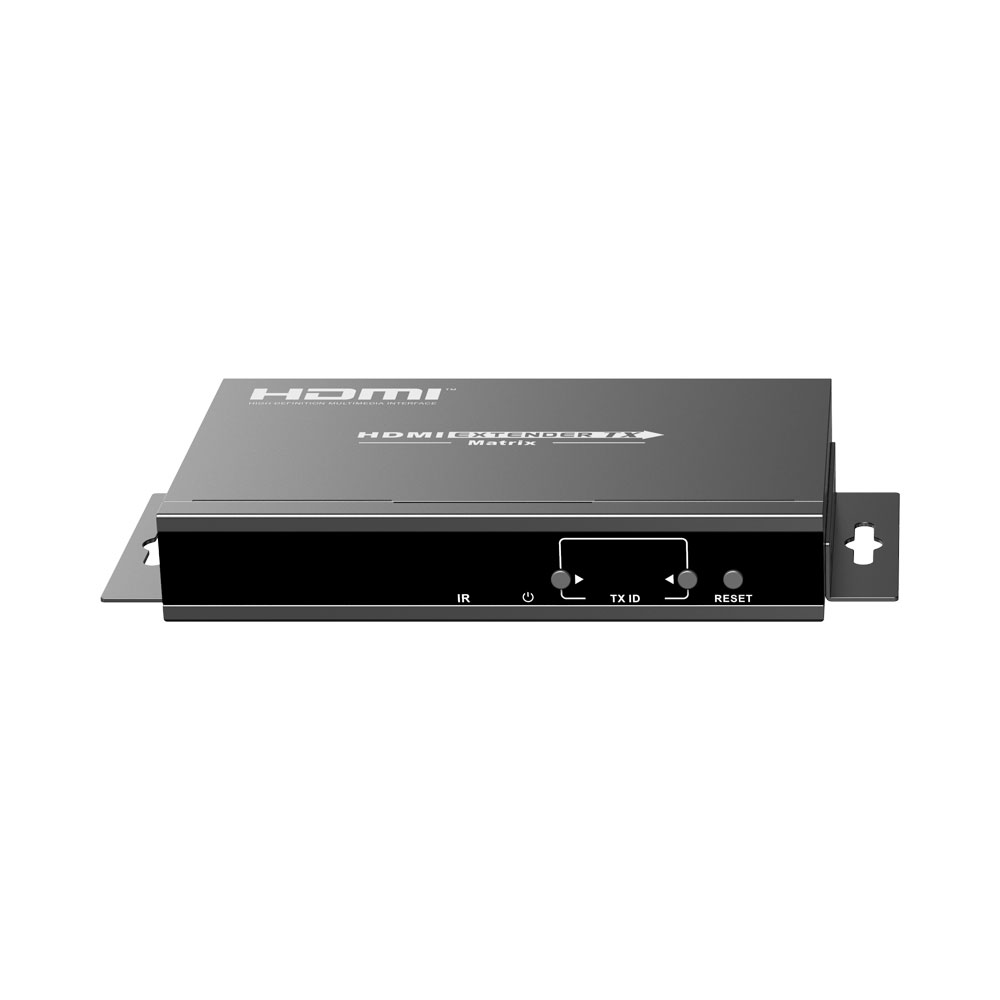

LENKENG 120M HDBITT HDMI EXTENDER MATRIX KIT

Lenkeng LKV383MATRIX-V4 120m HDMI Matrix Over IP Extender Kit This HDMI Extender Matrix includes a transmitter unit(TX) and a receiver unit(RX). It allows for the distribution and switching of high definition video/audio signal by this product and off-the-shelf IGMP switch. It applies advanced technology over IP (HDbitT), and the resolution supported is up to 1080p @60Hz full HD. It can also used in a point-to-point connection, the distance is up to 120 meters. It is widely applied in digital signage advertisement, control room, command centers, entertainment and exhibition center; safety monitoring system, etc.

Key features:
SPECIFICATIONS • HDMI signal: HDMI1.3,compliant to HDCP • Network Bandwidth: 18Mbps • Supported Resolution: 480i @60Hz, 480p @60Hz, 576i @50Hz, 576p @50Hz, 720 p@50/60Hz, 1080 i@50/60Hz, 1080 p@50/60Hz • Audio Format: PCM • TMDS signal: 0.7-1.2Vp-p • DDC signal: 5Vp-p • Remote Control: Supported • IR Pass-Back: Supports 20~60KHz IR devices • Matrix Configuration: Up to 100 source signals can be connected and switched to infinite output • Power Supply: 5V 2A • Power Consumption: TX＜4W, RX＜4W • Weight: TX: 260g, RX: 250g Each • Protection: Lightning Protection, Surge Protection and ESD Protection • Dimensions: 133.8 (L) x 83.8 (W) x 23.8mm (H) • Working Temperature: 0~60°C • Storage Temperature: -20~70°C • Relative Humidity: 0~95% (No Condensation) • Colour: Black
