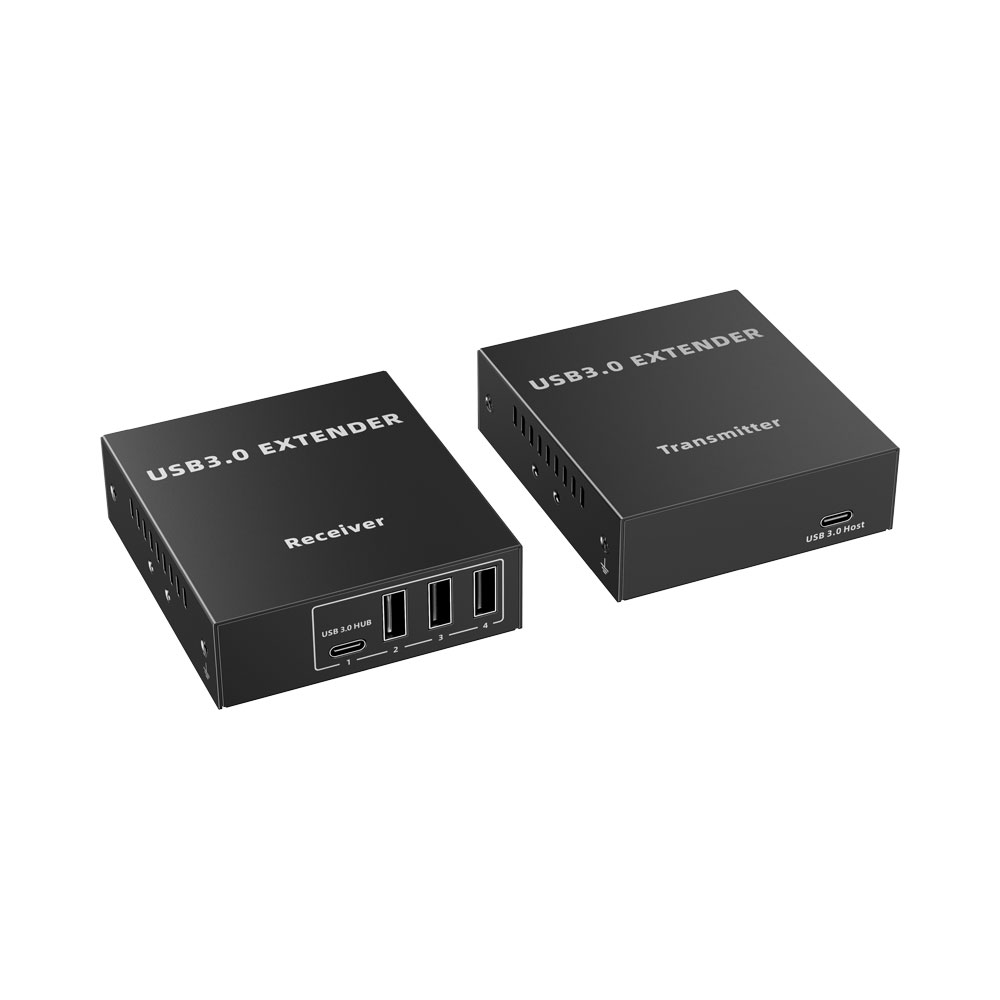

LENKENG USB3.0 EXTENDER FOR USB SIGNAL

LENKENG LKV300USB 50m 4-Port USB3.0 Extender Extend Your USB Devices Across Long Distances – Fast and Reliable The LKV300USB transforms a single USB port into a powerful, long-range USB hub – extending full USB3.0 connectivity up to 50m over CAT6 (or up to 90m over CAT6A) with 4× downstream ports (3× USB Type-A plus 1× USB Type-C). Smooth 5Gbps data transfer keeps peripherals like external drives, printers, cameras and keyboards performing at top speed even far from your PC. The unit is plug-and-play – no driver installation needed – and draws power from the source, so setup is simple. Built-in robust metal housing with ESD, surge and lightning protection, the extender delivers stable, industrial-grade performance – ideal for offices, server rooms, studios or workstations where remote USB access matters.

Key features:
• 3× USB Type-A and 1× USB Type-C • Data Transmission Rate up to 5Gbps • up to 50m Over CAT6 • up to 90m Over CAT6A • Powered by Source SPECIFICATIONS General / Connectivity • Ports: 3× USB Type-A plus 1× USB Type-C (On Receiver Side) • Data Transmission Rate: up to 5Gbps (USB3.0 SuperSpeed) • Extension medium: Single CAT6 / CAT6A Network Cable • Maximum Extension Distance: up to 50m Over CAT6, up to 90m Over CAT6A • Hot-plug / plug-and-play: Yes – No Driver Needed • Backward Compatibility: Supports USB2.0 and USB1.1 Devices Power / Supply • Power supply (Receiver): DC 12V 3A • Power Consumption (TX + RX): ≤8W Physical and Material • Housing / Material: Metal (Black) • Dimensions (Approx): 85 × 76 × 25mm • Weight: Transmitter 168g, Receiver 178g Safety and Protection • Built-In Protection: ESD Protection, Lightning Protection, Surge Protection • ESD Specs: Contact Discharge ±4kV, Air Discharge ±8kV (Meets IEC61000-4-2 Standard)
