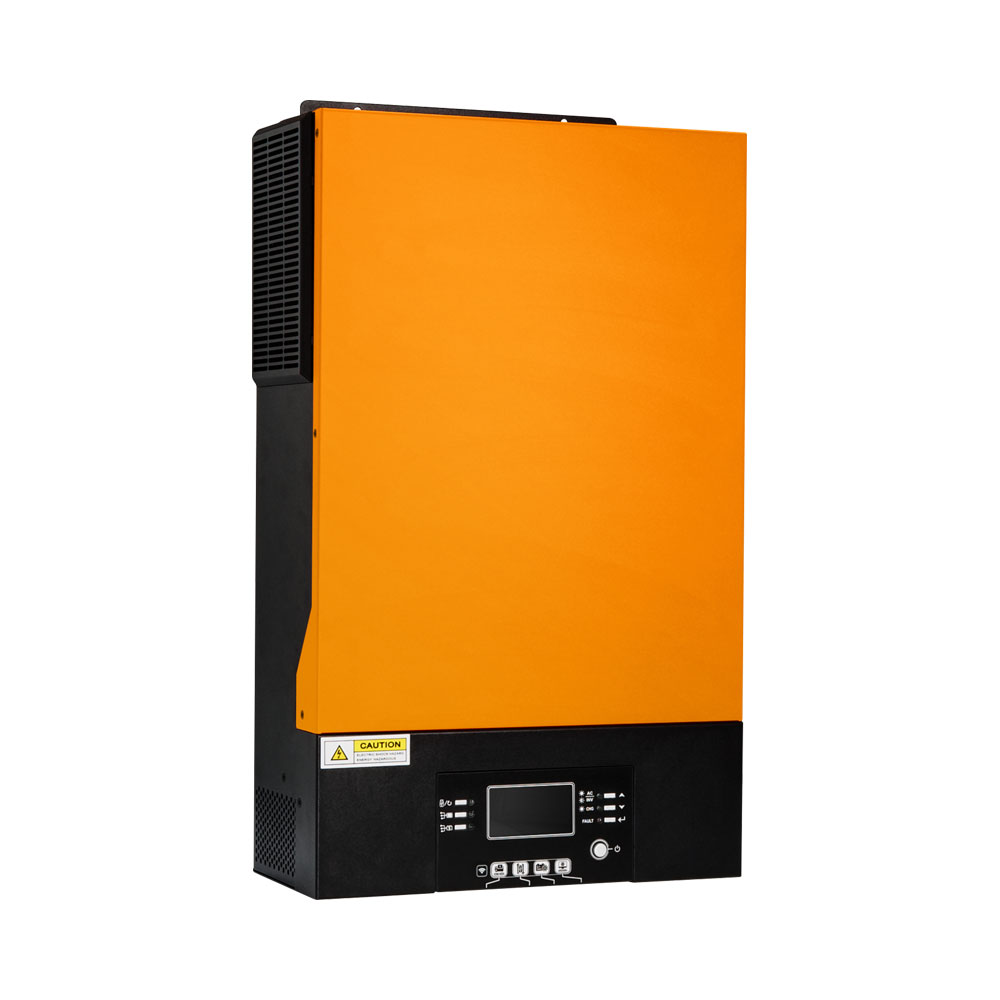

LINKQNET 5KW PF1 48VDC 6000W HV MPPT SOLAR UPS INV

LinkQnet 5KW PF1 48VDC 6000W HV MPPT Solar True Online Inverter with Parallel Kit – No Transfer The LinkQnet range of multi-functional inverter solutions offers a wide variety of applications and power options. These inverters are specifically designed to withstand the challenges of the African power grid and environmental conditions. Installation must be carried out by a qualified electrician or certified solar solution provider, in accordance with SANS 10142-1 standards. If you are not qualified, Linkqage will gladly refer you to one of our many registered installers. Common applications for multi-functional inverters include basic power backup during load shedding, solar power generation and storage for home or office use, as well as backup power for sensitive electronic equipment. Each LinkQnet inverter solution integrates an AC-DC charger, DC-DC solar charger, and DC-AC inverter into one compact unit, simplifying installation and saving valuable space.

Key features:
• Peak Power: 5000VA • RMS Power: 5000W • AC Voltage: 230V • DC Voltage: 48V (Battery Required) • Transfer Time: Zero • AC Charge: 100A • SCC Type: MPPT • Ideal SCC Voltage: 120V – 450V DC • Max PV OC Voltage: 500V DC • Max SCC Power: 6000W • SCC Charge: 100A • Max. Combined Charge: 100A • Parallel Capable: Yes – Parallel Built-In for Up to 9 Units • Communication: USB / RS-232 / RS485 (BMS) • Direct Bluetooth: No • Wi-Fi Option: Yes (Installed) • 3G Option: Yes • SNMP Option: Yes • Battery Types: Flooded, AGM, GEL, Li-Ion, Custom • BMS Support: Yes
