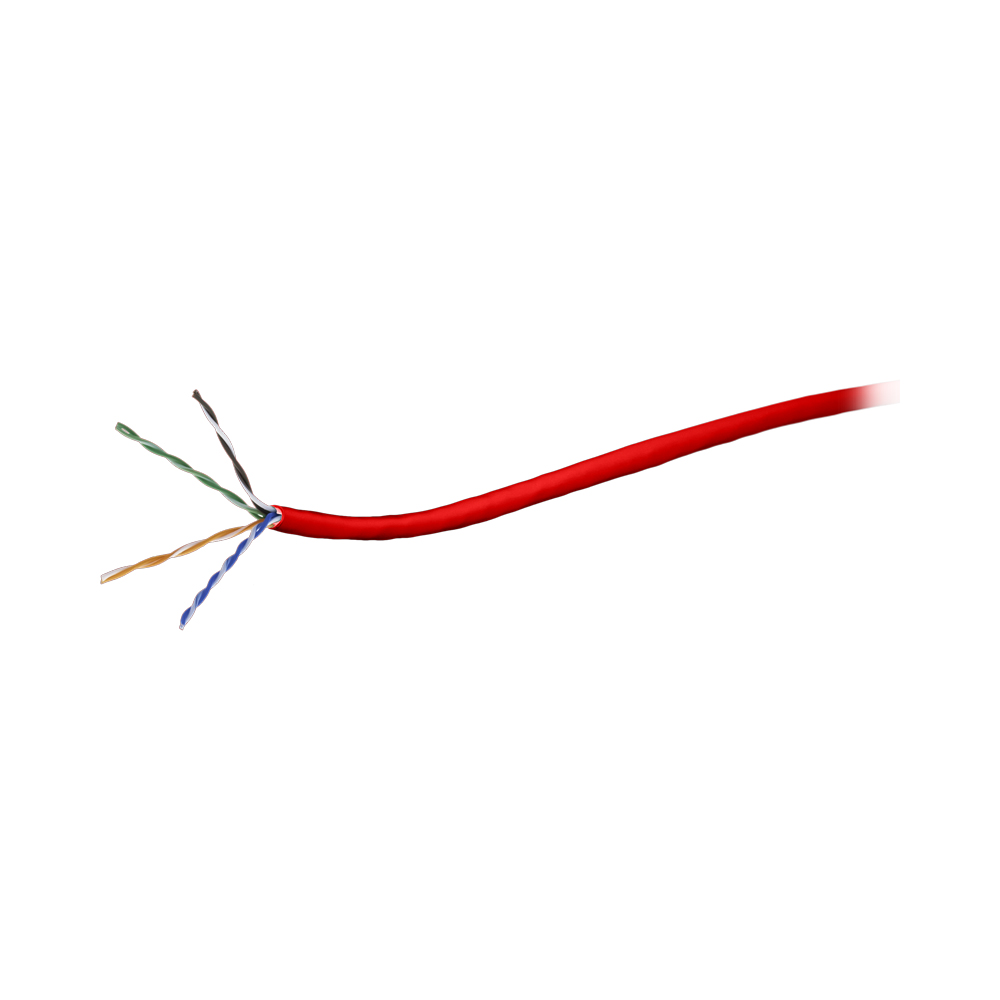

LINKQNET CAT5E UTP SOLID NETWORK CABLE – RED (SOLD PER METER OR 500M DRUM)

LinkQnet CAT5e UTP Solid Network Cable – Red (Sold per Meter or 500m Drum) The UTP Cat5e Network Cable is engineered for reliable, high-performance structured cabling in modern LAN environments. Built with solid 24 AWG copper conductors and precision-twisted pairs, it delivers stable Gigabit Ethernet connectivity with reduced crosstalk and excellent signal integrity. Designed to meet international cabling standards, this cable is ideal for office networks, patch panels, switches, IP devices, and general data installations, ensuring dependable performance for both commercial and residential networking projects.

Key features:
• Category 5e Performance – Supports high-speed Ethernet networking for reliable LAN connectivity • 24AWG Solid Copper Conductors – Ensures stable signal transmission and consistent network performance • Four Twisted Pair Design – Minimises crosstalk and interference for cleaner data signals • Standards Compliant – Meets ISO 11801, TIA/EIA 568-C.2 and EN50173 structured cabling standards • Durable PVC Jacket – Provides protection and flexibility for structured cabling installations • Wide Operating Temperature Range – Reliable performance from -20°C to +70°C SPECIFICATIONS CONDUCTOR • 24AWG Solid Bare Copper (0.511mm) INSULATION • Polyethylene PAIR COLOURS • Blue / White-Blue (0.95mm) • Green / White-Green (0.95mm) • Orange / White-Orange (0.91mm) • Brown / White-Brown (0.91mm) SHEATH • PVC • Nominal OD: 5.2mm FIRE SAFETY RATING • IEC 60332-1 TEMPERATURE RANGE • Installation: 0~50°C • Operational: -20~70°C ELECTRICAL CHARACTERISTICS (AT 20°C) • DC Resistance: 93.8 Ohms/km Max. • Resistance Unbalance: 2% Max. • Mutual Capacitance: 56 nF/km Max. • Capacitance Unbalance: 1000 pF/km Max. • Skew: 450 ns/km Max. • Velocity of Propagation: 68% (0.68 × 3 × 10⁸ m/s) • Characteristic Impedance: 100 Ohms ±15% (1~100MHz)
