LONGSPAN POE CAMERA UNIT

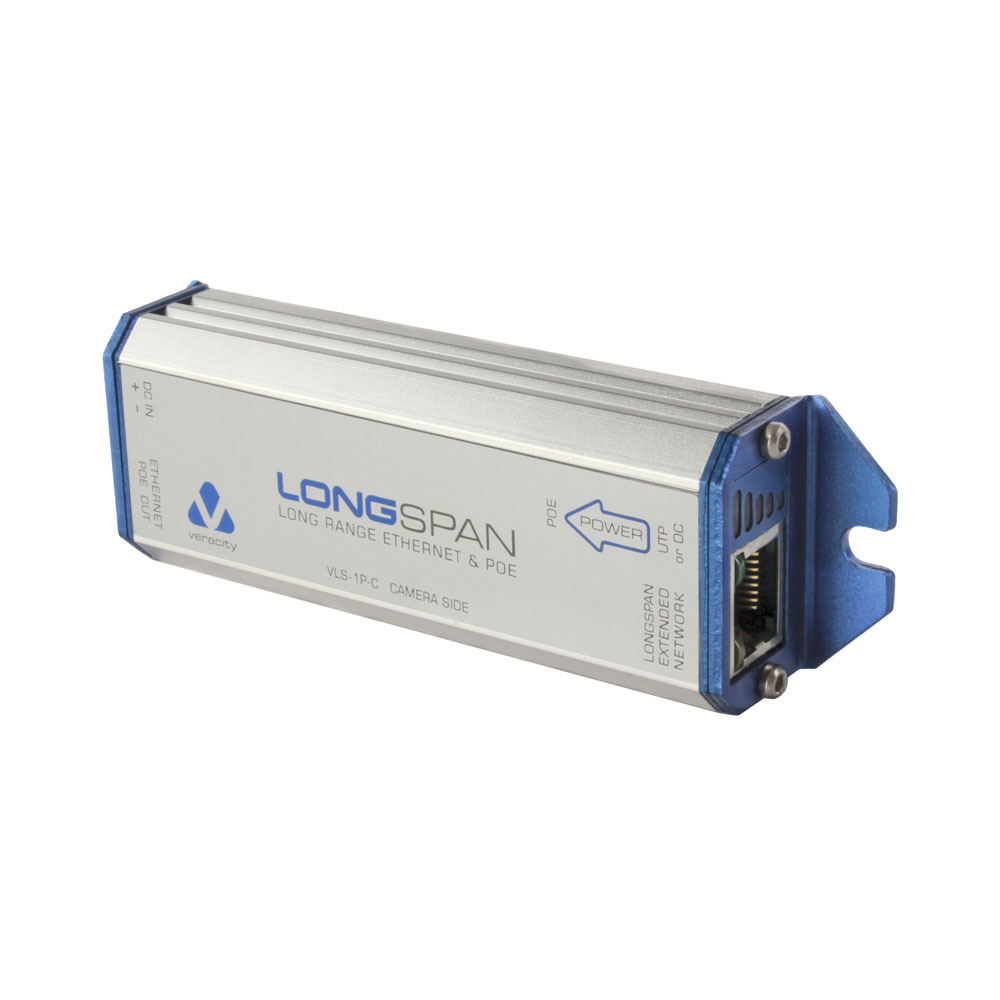

Veracity VLS-1P-C LONGSPAN PoE Camera Unit Long-Range Ethernet and PoE for Remote IP Cameras The Veracity VLS-1P-C LONGSPAN Camera Unit connects directly to an IP camera and works with the LONGSPAN base unit to transmit Ethernet and PoE over extended lengths of standard CAT5e or CAT6 cable. It enables reliable network connectivity and power delivery to cameras located far beyond the normal Ethernet distance limit.

Key features:
• Camera-Side LONGSPAN Device – Connects directly to IP cameras for extended-distance installations • Full-Bandwidth Ethernet – Supports 100Base-TX Ethernet up to 820m using standard network cable • PoE and PoE+ Delivery – Provides up to 25W of power to connected IP cameras • Plug-and-Play Operation – Automatically optimises performance without manual configuration • SAFEVIEW LED Diagnostics – Displays link status and available power for easy installation • Ideal for Remote Surveillance Deployments – Perfect for long cable runs in security and monitoring SPECIFICATIONS POWER • PoE Out (Camera): IEEE 802.3af (PoE) or IEEE 802.3at (PoE+) LONGSPAN INTERFACE • Connector: RJ45 • Cable: CAT6, CAT5e, CAT3 or Other 1/2/4-Pair UTP • Wiring: Patch Wiring Recommended, Other Wiring Auto-Corrected • Rate: 200Mbps (100Mbps Full-Duplex) up to 820m (CAT6) • Rate: 20Mbps (10Mbps Full-Duplex) up to 1050m (CAT6), Auto-Adapts ETHERNET INTERFACE • Connector: RJ45 • Cable: Patch or Crossover, Auto-Detected • Rate: 100Base-TX or 10Base-T, Full-Duplex with Auto-Negotiation LED INDICATORS • Ethernet RJ45: Yellow – Link/Activity, Green – Power Good • LONGSPAN Link RJ45: Yellow – Link/Activity, Green – 10/100Mbps • PoE: Power Available (5/10/15/20/25W) • PoE and Link Status: Green/Amber, Diagnostic Codes (Red) PHYSICAL / ENVIRONMENTAL • Dimensions: 120 × 36 × 23mm (Including Brackets) • Weight: 100g • Operating Temperature: -40~70°C • Relative Humidity: Up to 85% Non-Condensing • Compliance: FCC, CE, RoHS, UL, UKCA, BS EN 50121-4 (Rail + Metro)
