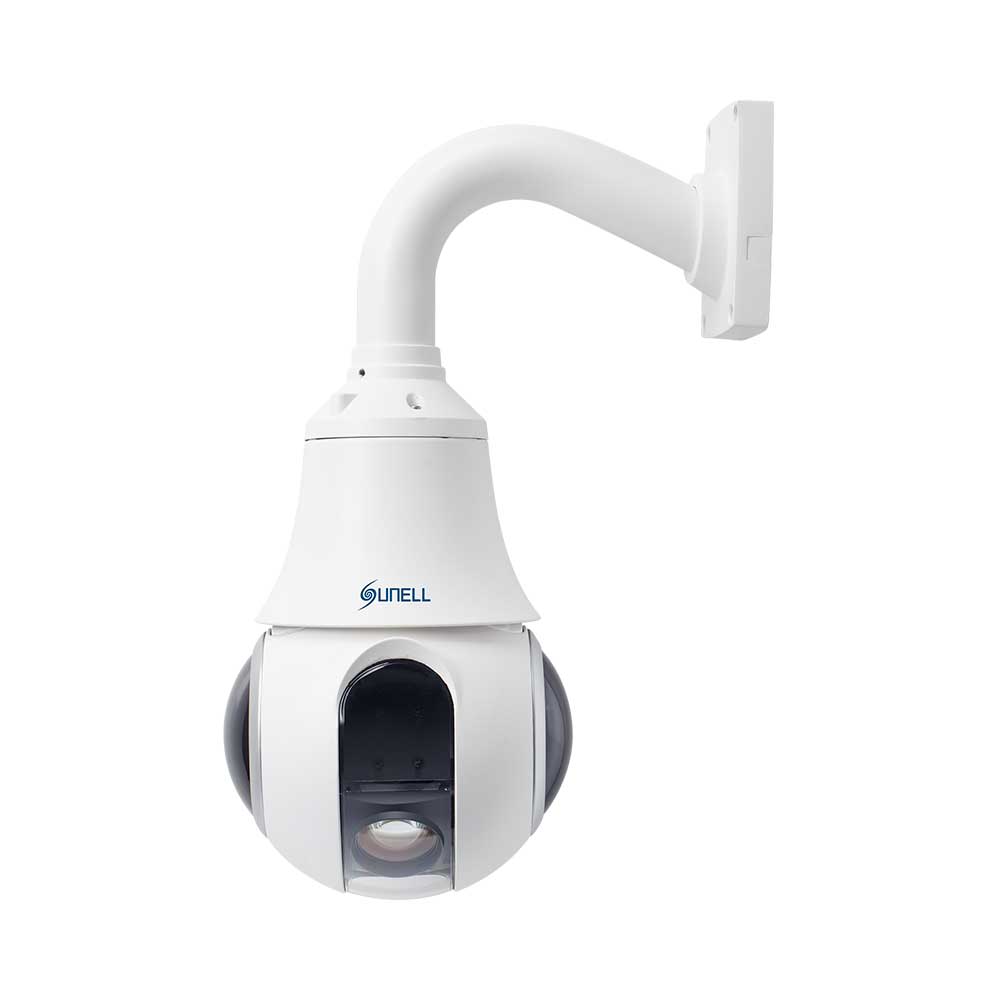

SUNELL MINI PTZ, 5MP, 12X, SDR, POE+

Sunell SN-IPS5950CDR-Z12-WO 5MP 12x Optical PoE+ Mini PTZ Camera

Key features:
• 1/2.8″ progressive scan CMOS • 12x optical zoom,16x digital zoom • 5MP(2560×1920)@25/30fps • Multiple streams • 3D DNR, WDR, ICR, IVS, Defog • Auto tracking • Smart IR range up to 80m • IP66 SPECIFICATIONS Camera • Image Sensor: 1/2.8″ Progressive Scan CMOS • Effective Pixels: 2560(H) x 1920(V) • Electronic Shutter: Auto/Manual, 1/5-1/20,000s • Min. Illumination: Colour: 0.01 Lux @(F1.2,AGC ON), B/W: 0 Lux @(IR LED ON) • S/N Ratio: 55dB • Day/Night: Auto(ICR) / Day / Night / Timing • Wide Dynamic: WDR (120dB) • IR Range: up to 80m • IR On/Off Control: Auto/ Manual • IR LEDs: 6pcs Lens • Focal Length: 4.7~56.4mm • Max. Aperture: F1.6~F3.0 • Angle of View: H: 60.9°~6.43°, V: 40.1°~4.1° • Optical Zoom: 12x • Digital Zoom: 16x • Focus Control: Auto/Manual PTZ • Pan/Tilt Range: Pan: 0° ~ 360° endless, Tilt: -10° ~ +90° • Manual Control Speed: Pan: 0.1° ~180° /s, Tilt: 0.1° ~90° /s • Preset Speed: Pan: 180° /s, Tilt: 90° /s • Presets: 300 • PTZ Mode: 6 Track, 12 Tour, 12 Scan, • Speed Setup: Auto/Manual (0-8) • Power up Action: Support • Idle Motion: Activate Preset/ Scan/ Tour/ Track if there is no command in the specified period Video • Compression: H.265, H.264, MJPEG • Max. Resolution: 5MP (2560×1920) • Streaming Capability: 3 Streams • Stream /Stream 1: 2560×1920/2048×1536/1280×960 @25/30fps • Frame Rate: Stream 2: D1/VGA/640×360/CIF/QVGA @25/30fps • Stream 3: VGA/CIF/QVGA @25/30fps • Bit Rate Control: CBR/VBR • Bit Rate: Stream1: 200kbps~12Mbps • Stream 2: 100kbps~6Mbps • Stream 3: 100kbps~3Mbps • Image Enhancement: HLC / BLC / Anti-shake / Defog / WDR (120dB) • White Balance: Auto/Tungsten/Fluorescent/Daylight/Shadow/Manual • Gain Control: Auto/Manual • Noise Reduction: 2D/3D DNR • Smart IR: Support • Mirror: Support • Aisle Mode: Support • Region of Interest: Off / On (8 Zone) • Motion Detection: Off / On • Privacy Masking: Off / On (4 Area, Rectangle) Audio • Compression: G.711, RAW_PCM • Bit Rate: 8kbps (G.711), 16kps (RAW_PCM) Network • Protocols: IPv4/IPv6, 802.1x, HTTP, HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, ARP, SNMP • Interoperability: ONVIF, SDK, CGI • Streaming Method: Unicast • Max. User Access: 10 Users • Edge Storage: NAS • Local PC for instant recording • MicroSD Card: up to128GB • Web Viewer: <IE11, Chrome, Firefox • Management Software: SunView • Smart Phone: iOS, Android Intelligence • Auto Tracking: Support • IVS: Perimeter, Single Virtual Fence, Double Virtual Fences, Loiter, Multi Loiter, Object Left, Object Removed, Abnormal Speed, Converse, Illegal Parking, Signal Bad Interface • Ethernet: 1 Ethernet (10/100 Base-T) RJ-45 Connector • Audio: 1ch Input, 1ch Output • Alarm: 2ch Input, 1ch Output • RS485: N/A • CVBS Output: N/A • Reset Button: Yes (Built-in) Electrical • Power Supply: AC24V/PoE+ (IEEE 802.at) • Power Consumption: Less than 25W • Operating Temperature: Starting Temperature: -40°C ~ 60°C, Working Temperature:-55°C ~ 60°C, • Operating Humidity: Less than 90% RH • Ingress Protection: IP66, TVS4000V • Certifications: CE/FCC • Casing: Metal • Dimensions (L × W × H): 146.6 × 139.3 × 218.3mm • Net Weight: 1.5kg
