SYNOLOGY NETWORK CAMERA TC500 APAC

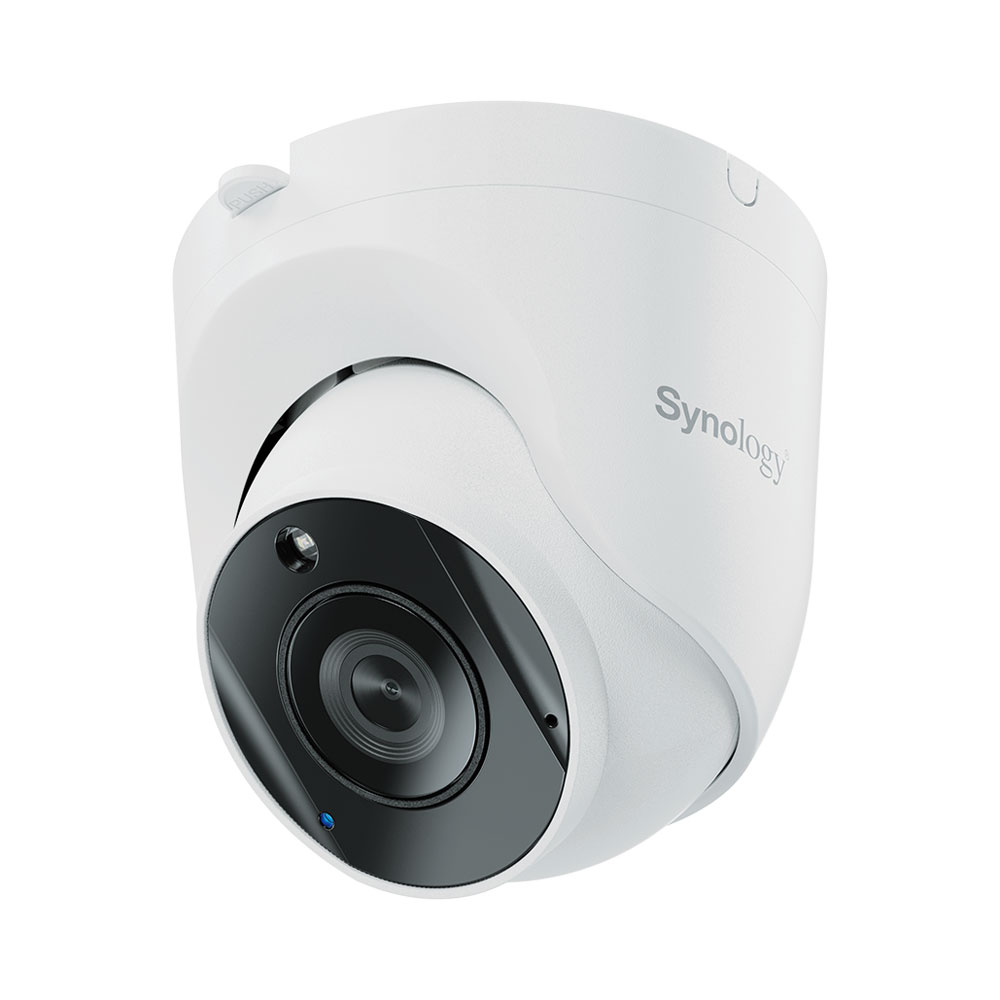

Synology TC500 5MP Wide-Angle Turret Network Camera AI-Powered Camera for Integrated Smart SurveillanceSynology cameras are designed to pair with Surveillance Station, providing unparalleled ease of use thanks to quick and easy setup, batch configuration, and seamless firmware updates. They feature camera-based AI that enhances Surveillance Station deployments with smart capabilities. The TC500 is a versatile IP67 rated 5MP wide-angle AI camera suitable for both indoor and outdoor use. Boasting a high resolution of 2880 × 1620 @30FPS, 110° horizontal wide-angle view and night vision capability. The TC500 captures all the details you need.

Key features:
• Crisp Video, Night and Day – 5MP sensor with wide-angle lens, recording @30FPS, and high-power IR LED for 30m of night vision • Edge AI Detection and Search – On-camera AI powers people and vehicle detection, intrusion detection and instant search • No Device License Required – Camera requires no Surveillance Station Device License or activation • Failover Edge Recording – Supports failover recording onto microSD, in case of network failure • Security and Compliance – Suitable for sensitive applications thanks to HTTPS/SRTP support and US NDAA/TAA compliance SPECIFICATIONS Hardware SPECIFICATIONS Optical Image Sensor: 1/2.7″ IR LED Wavelength: 850nm Max. IR Distance: 30m (0.001 lux) Shutter Speed: 1/16000 s to 1/30 s Day & Night: Automatically Removable Infrared-Cut Filter Lens Lens Type: Fixed Focal Focal Length: 2.8mm Field of View: 110° H, 56° V, 132° D (LDC ON) DORI: D: 60m, O: 24m, R: 12m, I: 6m Aperture: F1.8 Video Max. Video Resolution: 2880×1620 @30FPS Multi-Exposure HDR: Yes DNR: 3DNR, 2DNR Audio Microphone: Yes I/O Ethernet: 1× RJ45 10M/100M Ethernet Port Reset: Yes On-Board Storage: 1× MicroSD Card Slot, Support Micro SDHC/SDXC Card up to 128GB Supported File Format: exFAT Note: SD card is not included Power Supply IEEE 802.3af Type 1 Class 3 or 12V DC Note: Compatible DC power adapter: 12V/1A (Ø2.1mm) The product does not include a PoE switch or a 12V DC power adapter. Please purchase separately. General Form Factor: Turret Dimensions: Ø97×88mm Weight: 387g Temperature Operating Condition: Starting Temperature: -30°C to 50°C Operating Temperature: -30°C to 50°C (IR Off) Operating Temperature: -30°C to 40 °C (IR On) Operating Humidity: 5%~95% (Non-Condensing) Storage Condition: Storage Temperature: -40°C to 60°C Storage Humidity: 5%~95% (Non-Condensing) Certifications FCC, CB, IC, CE, UKCA, BSMI, VCCI, RCM, KC, JATE Environment: REACH Compliant, WEEE Compliant, ROHS Compliant Waterproof: IP67 Vandal: IK10 NDAA Compliant: Yes TAA Compliant: Yes Warranty: 3-Years Software SPECIFICATIONS Video & Audio Main Stream: 2880 × 1620 @30FPS; 2560 × 1440 @30FPS; 2304 × 1296 @30FPS; 1920 × 1080 @30FPS; 1280 × 720 @30FPS Sub Stream: 1920 × 1080 @15FPS; 1280 × 720 @30FPS Video Format: H.264, H.265 Bitrate Control: VBR, MBR Audio Compression: G.711 Audio Denoise: Yes Image Adjustment: Brightness, Contrast, Sharpness, Saturation, White Balance, Exposure Control, High Dynamic Range (HDR), 3D/2D Noise Reduction, 50/60 Hz Flicker Reduction, Day/Night Mode, Overlay Day/Night Mode: Auto, Day, Night, Schedule Video Orientation: Mirror, Flip, Rotation (0°, 90°, 180°, 270°) Privacy Mask: Removeable/Unremovable Mode, up to 5 zones Max RTSP Connections: 4 Analytics Event Analytics: Audio Detection, Tampering Detection, Motion Detection People & Vehicle: People Detection, Vehicle Detection, Crowd Detection, Loitering Detection Intrusion: One-Way or Two-Way Instant Search: Motion, Vehicle, People Security IP Filter: Auto Block, Allow/Block list Connection Management: Yes Firmware Update: Automatically Update to the Important Version, Automatically Update to the Latest Version, Manual Upload Signed Firmware: Yes HTTPS: Yes SRTP: Yes Storage Management Storage: SD Card & Synology NAS SD Card Recording Mode: Event Analytics, Disconnected with NAS Note: SD Card capacity under 128GB is tested by Synology Camera Web Interface Liveview: Yes Network: Auto Block, Allow/Block List, Connection Management, Fixed IP/DHCP System: Reset, Restart, Manual Firmware Upgrade, DST, Time Zone, NTP Server Camera Log Export: Yes Supported Browsers: Google Chrome Supported Language: English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文 Software Requirement Surveillance Station: Surveillance Station 9.1 or Higher Surveillance Station Client: Surveillance Station Client Version 2.1.0 or Higher DS Cam: Android DS cam 3.7.0 or Higher, iOS DS cam 5.6.0 or Higher Camera Tool: 1.0.0 Note: Built-in Surveillance Device License
