TP-LINK 10/100MBPS WDM MEDIA CONVERTER

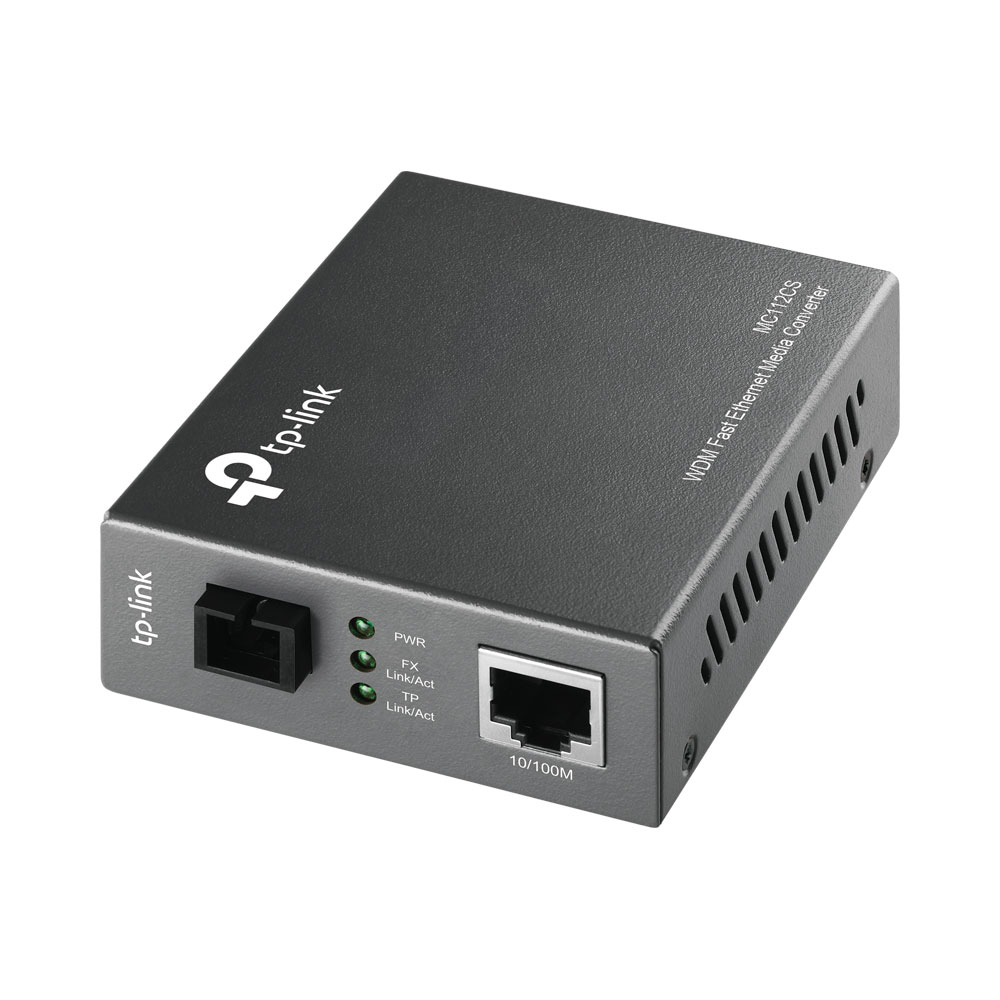

TP-Link Omada MC112CS 10/100Mbps WDM Media Converter Long-Distance Fibre Connectivity with Efficient WDM Technology. The TP-Link MC112CS WDM Media Converter provides reliable conversion between 10/100Mbps Ethernet and single-mode fibre using WDM (Wavelength Division Multiplexing) technology. By transmitting and receiving data over a single fibre strand, it simplifies fibre deployment while maintaining stable long-distance network performance.

Key features:
• Fast Ethernet Media Conversion – Converts 10/100Mbps Ethernet to single-mode fibre for extended network connectivity • WDM Technology – Transmits and receives data over a single fibre strand to simplify fibre infrastructure • Long-Range Fibre Transmission – Supports fibre distances up to 20km • Auto-Negotiation Support – Automatically detects optimal speed and duplex settings • Reliable Data Transmission – IEEE 802.3x flow control ensures stable and efficient network performance • Plug-and-Play – Simple installation with no configuration required SPECIFICATIONS STANDARDS AND PROTOCOLS • IEEE 802.3 • IEEE 802.3u • IEEE 802.3x BASIC FUNCTION • Auto-Negotiation of Half-Duplex / Full-Duplex Transfer Mode • Full Duplex Flow Control (IEEE 802.3x) • Half Duplex Flow Control (Back Pressure) • WDM Transmission on a Single Fibre • Extends Fibre Distance up to 20km PORTS • 1× 100M SC/PC Port • 1× 10/100M RJ45 Port (Auto MDI/MDIX) WAVE LENGTH • TX: 1310nm • RX: 1550nm NETWORK MEDIA 10BASE-T • UTP CAT3, 4, 5 Cable (Max. 100m) • EIA/TIA-568 100Ω STP (Max. 100m) NETWORK MEDIA 100BASE-TX • UTP CAT5, 5e Cable (Max. 100m) • EIA/TIA-568 100Ω STP (Max. 100m) NETWORK MEDIA 100BASE-FX • Single-Mode Fibre LED INDICATORS • PWR • Link/Act DIMENSIONS (W × D × H) • 94.5 × 73 × 27mm POWER SUPPLY • External Power Supply MAX. POWER CONSUMPTION • 2.4W SAFETY AND EMISSION • FCC • CE • RoHS
