TP-LINK 1000MBPS RJ45 – GBIT CHASSIS ONLY

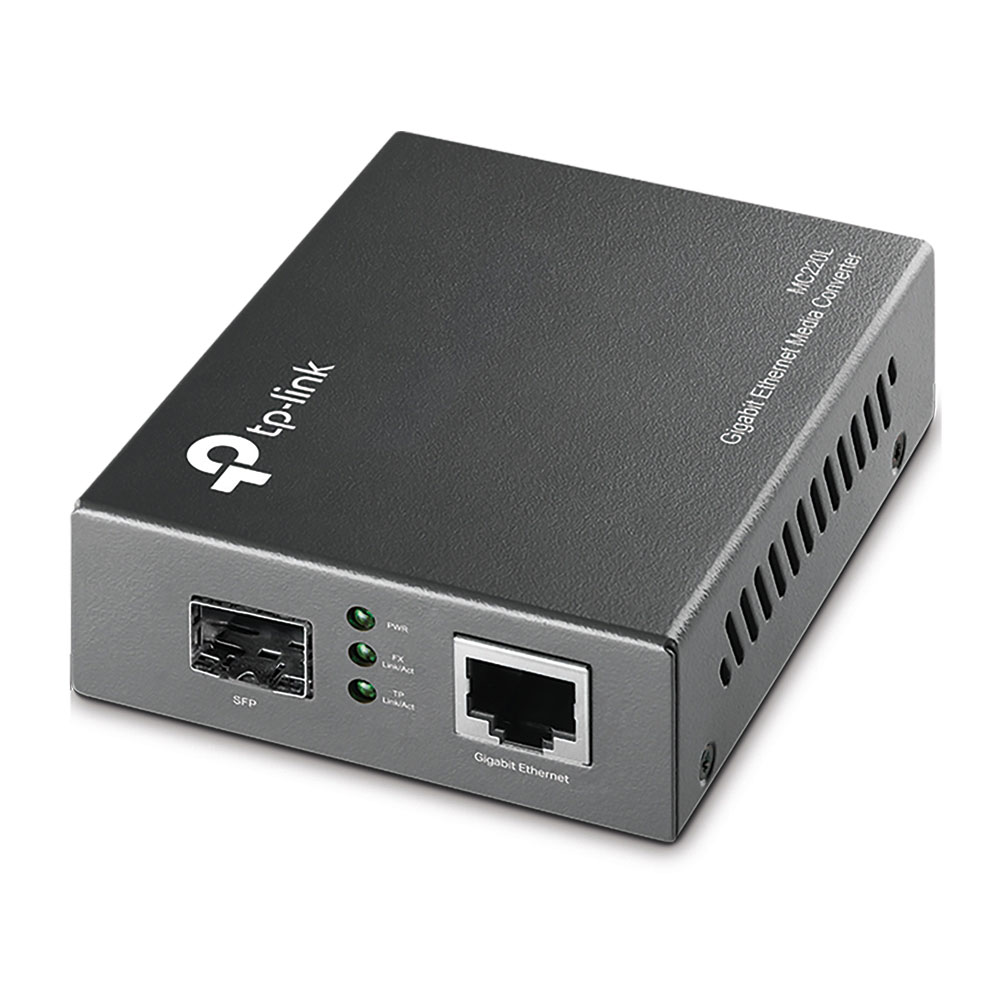

TP-Link Omada MC220L Gigabit SFP Media Converter Flexible Gigabit Fibre Connectivity with SFP Expansion. The TP-Link MC220L Gigabit SFP Media Converter provides a flexible solution for converting Gigabit Ethernet to fibre using interchangeable SFP modules. Designed for adaptable network deployments, it allows administrators to select the appropriate SFP module for multi-mode or single-mode fibre connections. With automatic speed negotiation, Plug-and-Play installation and support for long-distance fibre transmission, the MC220L is ideal for enterprise networks, campuses and data centre environments requiring scalable fibre connectivity.

Key features:
• Gigabit Ethernet Connectivity – 10/100/1000Mbps Auto-Negotiation RJ45 port with Auto-MDI/MDIX support • Auto-Negotiation Support – Automatically selects Half-Duplex or Full-Duplex transfer mode for optimal performance • IEEE Standards Compliance – Fully compliant with IEEE 802.3ab and IEEE 802.3z standards • Hot-Swappable SFP Port – FX port supports hot-swappable SFP modules for flexible fibre deployment • Flexible Fibre Distance – Maximum transmission distance depends on the installed SFP module SPECIFICATIONS STANDARDS AND PROTOCOLS • IEEE 802.3i • IEEE 802.3u • IEEE 802.3ab • IEEE 802.3z BASIC FUNCTION • Auto-Negotiation of Half-Duplex / Full-Duplex Transfer Mode • Maximum Transmission Distance Depends on the Inserted SFP Module PORTS • 1× 1000M SFP Port • 1× 10/100/1000M RJ45 Port (Auto MDI/MDIX) WAVE LENGTH • Depends on the Used SFP Module NETWORK MEDIA 1000BASE-X • Multi-mode / Single-mode SFP Module NETWORK MEDIA 1000BASE-T • UTP CAT5, 5e Cable (Max. 100m) • EIA/TIA-568 100Ω STP (Max. 100m) LED INDICATORS • PWR • Link/Act DIMENSIONS (W × D × H) • 94.5 × 73 × 27mm POWER SUPPLY • External Power Adapter MAX. POWER CONSUMPTION • 1.7W SAFETY AND EMISSION • FCC • CE • RoHS
