TP-LINK 5-PORT 100M DT SWITCH WITH 4-PORT POE

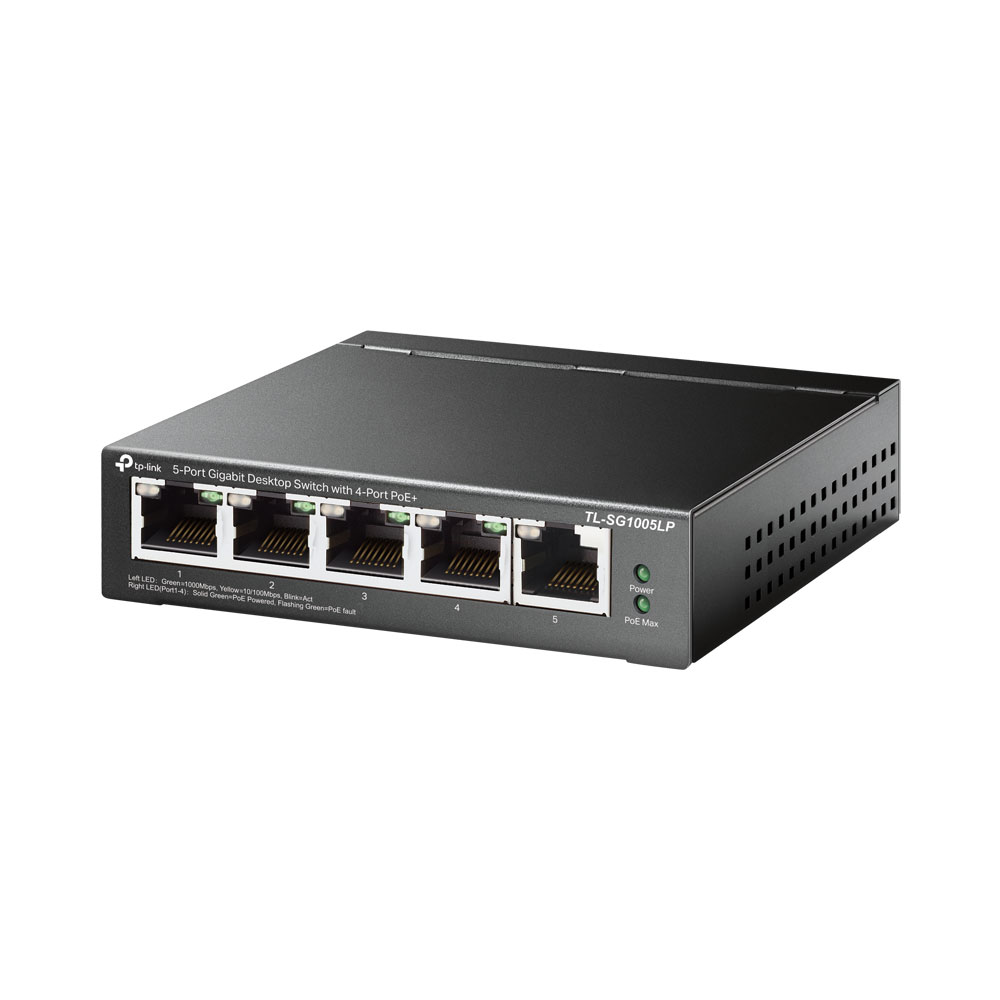

TP-Link TL-SG1005LP 5-Port Gigabit Desktop Switch with 4-Port PoE+Professional 5-Port Gigabit Switch with 4 PoE+ Ports The TL?SG1005LP is an unmanaged Gigabit Ethernet switch that supports Power over Ethernet (PoE+) on four of its ports. It is designed for small office / home setups where you want to supply power and data over one cable to devices like IP cameras, access points, IP phones, etc., while also supporting full gigabit speeds.

Key features:
• 5x 10/100/1000Mbps RJ45 ports • With four PoE+ ports, transfers data and power on one single cable • Works with IEEE 802.3af/at compliant PDs • 802.1p/DSCP QoS enable smooth latency-sensitive traffic • Supports PoE Power up to 30W for each PoE port • Supports PoE Power up to 40W for all PoE ports • Plug and play, no configuration and installation required SPECIFICATIONS HARDWARE FEATURES • Interface: 5× 10/100/1000Mbps RJ45 Ports • AUTO Negotiation • AUTO MDI/MDIX • Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • Fan Quantity: Fanless • External Power Supply: External Power Adapter (Output: 53.5 VDC / 0.81 A) • Packet Forwarding Rate: 7.44 Mpps • PoE Ports (RJ45): Standard: 802.3 af/at compliant • PoE Ports: Ports 1–4 • Power Supply: 40 W • Mac Address Table: 2K • Jumbo Frame: 16 KB • Switching Capacity: 10 Gbps • Dimensions (W x D x H): 99.8 × 98 × 25mm • Max Power Consumption: 4.12 W (220/50 Hz. no PD connected) • 47.5 W (220/50 Hz. with 40 W PD connected) • Max Heat Dissipation: 14.05 BTU/h (no PD connected) • 161.98 BTU/h (with 40 W PD connected) SOFTWARE FEATURES • Advanced Features: Compatible With IEEE 802.3af/at Compliant PDs • Mac Address Auto-Learning And Auto-Aging • IEEE 802.3x Flow Control • 802.1p/DSCP QoS • IGMP Snooping • Transfer Method: Store-And-Forward OTHERS • CertificationFCC, CE, RoHS • Environment: Operating Temperature: 0–40°C • Storage Temperature: -40–70°C • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
