TP-LINK 5-PORT GIGABIT DESKTOP SWITCH

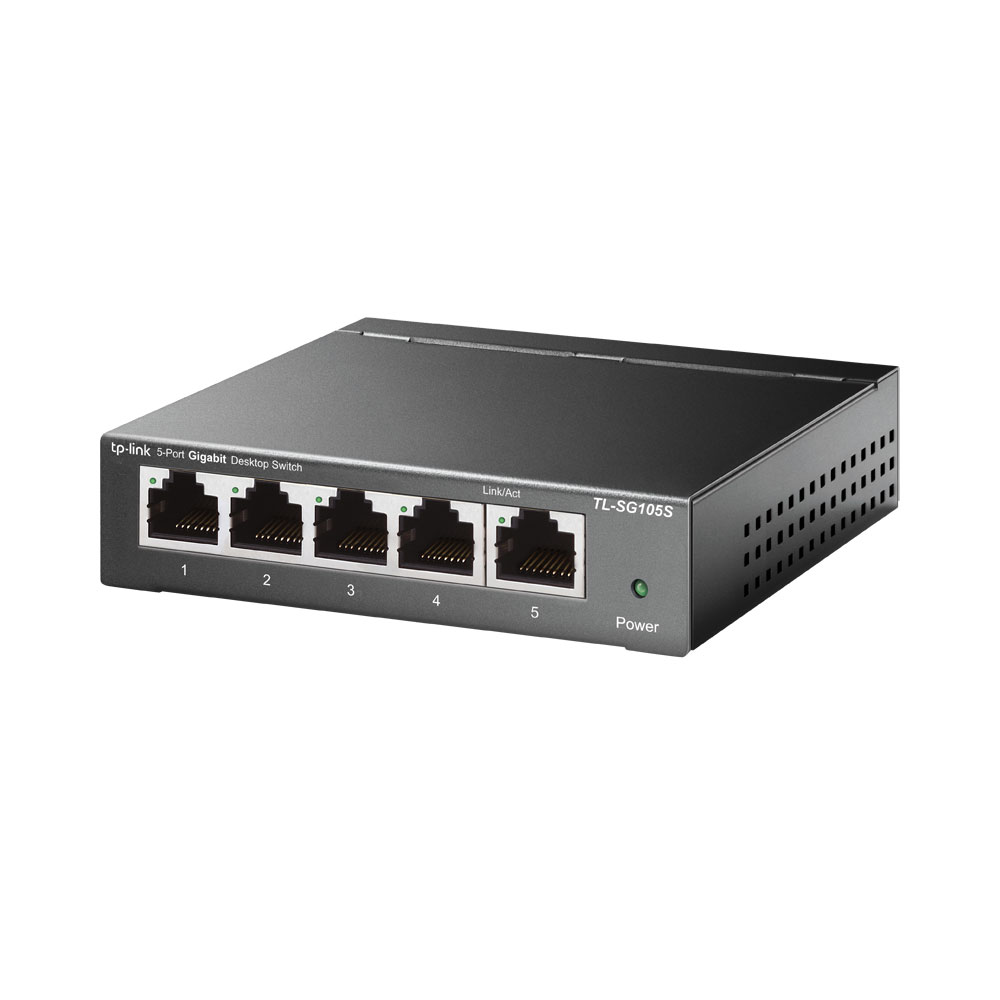

TP-Link TL-SG105S 5-Port 10/100/1000Mbps Desktop Switch The TL?SG105S is an unmanaged desktop (or wall?mountable) Gigabit switch with 5 RJ?45 ports. It offers plug?and?play operation – no configuration required.

Key features:
• 5x 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX • Green Ethernet technology saves power consumption • IEEE 802.3x flow control provides reliable data transfer • Steel housing, desktop or wall-mounting design • Support 802.1p/DSCP QoS and IGMP Snooping function • Plug and play, no configuration needed SPECIFICATIONS HARDWARE FEATURES • Standards and Protocols: IEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p • Interface: 5 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports • Fan Quantity: Fanless • Power Consumption: Maximum: 2.3W (220V/50Hz) • External Power Supply: External Power Adapter (Output: 5VDC / 0.6A) • LED Indicator: System Power • Link/Act indicators per port built into each RJ-45 port • Dimensions (W x D x H): 100 x 98 x 25mm • Max Heat Dissipation: 7.83 BTU/h PERFORMANCE • Packet Forwarding Rate: 7.4Mpps • MAC Address Table: 2K • Packet Buffer Memory: 1Mb • Jumbo Frame: 16KB SOFTWARE FEATURES • Advanced Features: Green Technology • 802.3X Flow Control • 802.1P/DSCP QoS (for V2 and later version) • IGMP Snooping • Transfer Method: Store and Forward OTHERS • Certification: CE, FCC, RoHS • Environment: Operating Temperature: 0°C~40°C • Storage Temperature: -40°C~70°C • Operating Humidity: 10% ~ 90% non-condensing • Storage Humidity: 5%~90% non-condensing
