TP-LINK AC1200 WIRELESS MU-MIMO GIGABIT

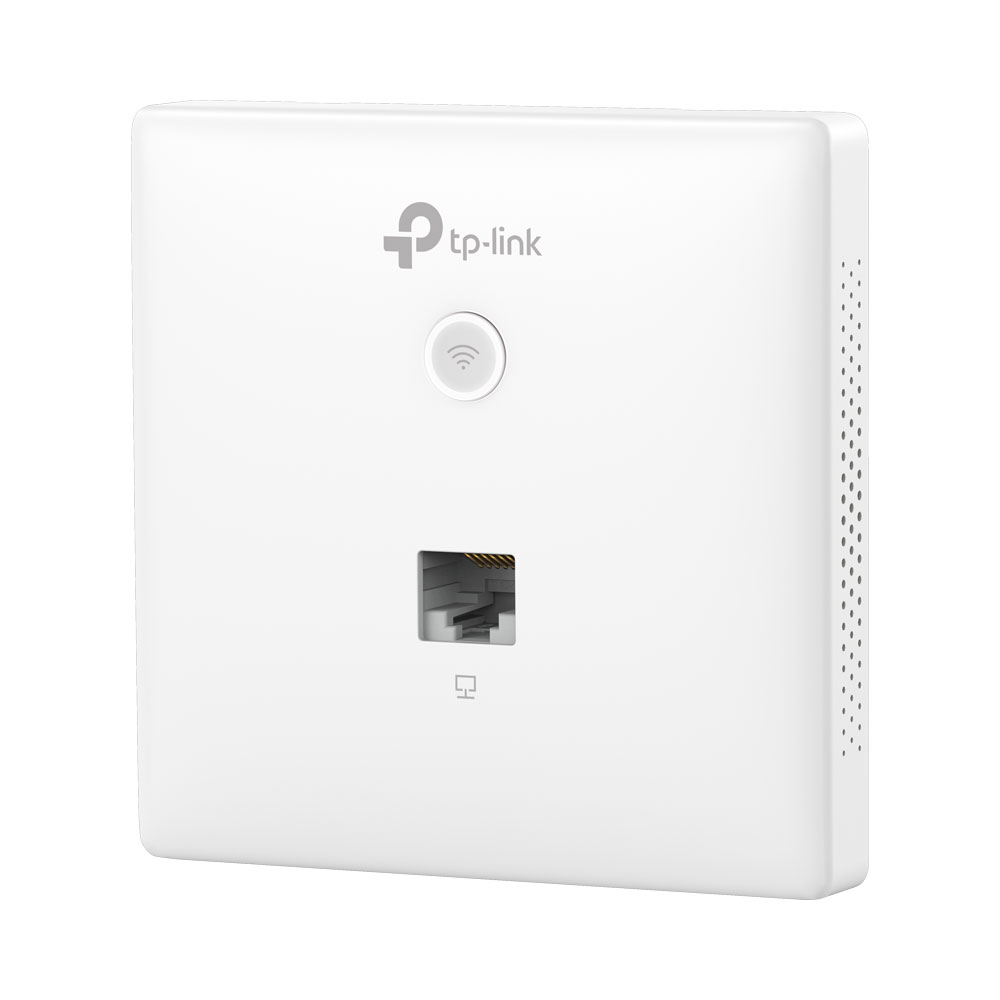

TP-Link Omada EAP230-Wall AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point Unprecedented 11mm Thin Design. In-Room Wi-Fi. Enterprise Control. The TP-Link EAP230-Wall delivers AC1200 dual-band Wi-Fi with MU-MIMO technology in a compact wall-plate design. Perfect for hotels, offices and student residences, it provides dedicated, high-speed connectivity to every room without visible clutter. Integrated with Omada SDN for centralised cloud management, seamless roaming and effortless scalability, it?s a smart, professional solution for structured in-room networking.

Key features:
• 802.11ac Wave 2 Technology – Enables multiple users to access the internet simultaneously with improved efficiency • Designed For Multi-Room Environments – Ideal for hotels, offices and dormitories with individually separated rooms • Discreet Wall-Plate Design – Matches the size and shape of a light switch or power outlet for seamless integration • Centralised Cloud Management – Access and manage your network anytime, anywhere • Omada App Control – Simple and convenient network management from your mobile device SPECIFICATIONS HARDWARE FEATURES • Interface: 1× Gigabit Uplink Port, 1× 10/100/1000Mbps Downlink Port • Button: LED/Wi-Fi Button, Reset • Power Supply: 802.3af/802.3at PoE • Power Consumption: 7W • Dimensions: 86.8 × 86.8 × 30.2mm • Antennas: 2× Dual-Band Internal Antennas – 2.4GHz: 2× 4dBi – 5.0GHz: 2× 3.6dBi • Mounting: Wall-Plate Mounting • Hardware Watchdog: Yes WIRELESS FEATURES • Wireless Standards: IEEE 802.11a/b/g/n/ac • Frequency: 2.4GHz and 5.0GHz • Signal Rate: – 5.0GHz: up to 867Mbps – 2.4GHz: up to 300Mbps • SSIDs: Up to 16× SSIDs (8× per Band) • MU-MIMO: Yes • Band Steering: Yes • Beamforming: Yes • QoS (WMM): Yes • Load Balance: Yes • Rate Limit: Yes • Wireless Schedule and Reboot Schedule: Yes • Wireless Statistics: Based on SSID/AP/Client WIRELESS SECURITY • Captive Portal Authentication • Access Control • Wireless MAC Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Local LAN Port-Based VLAN • Rogue AP Detection • 802.1X Support • Encryption: 64/128/152-bit WEP, WPA/WPA2-Enterprise, WPA-PSK/WPA2-PSK TRANSMISSION POWER • CE: – ≤20dBm (2.4GHz, EIRP) – ≤23dBm (5.0GHz, EIRP) MANAGEMENT • Omada Cloud Access: Yes • Omada App: Yes • Omada Cloud Controller: Yes • Omada Controller Software: Yes • Centralised Management: Omada Cloud-Based Controller, OC300, OC200, Omada Software Controller • Email Alerts: Yes • LED On/Off Control: Yes • Management MAC Access Control: Yes • SNMP: v1, v2c • System Logging: Local/Remote Syslog • SSH: Yes • Web-Based Management: HTTP/HTTPS • L3 Management: Yes • Multi-Site Management: Yes • Management VLAN: Yes • Zero-Touch Provisioning: Yes (via Omada Cloud-Based Controller) CERTIFICATION • CE • RoHS
