TP-LINK AC1200 WIRELESS MU-MIMO GIGABIT

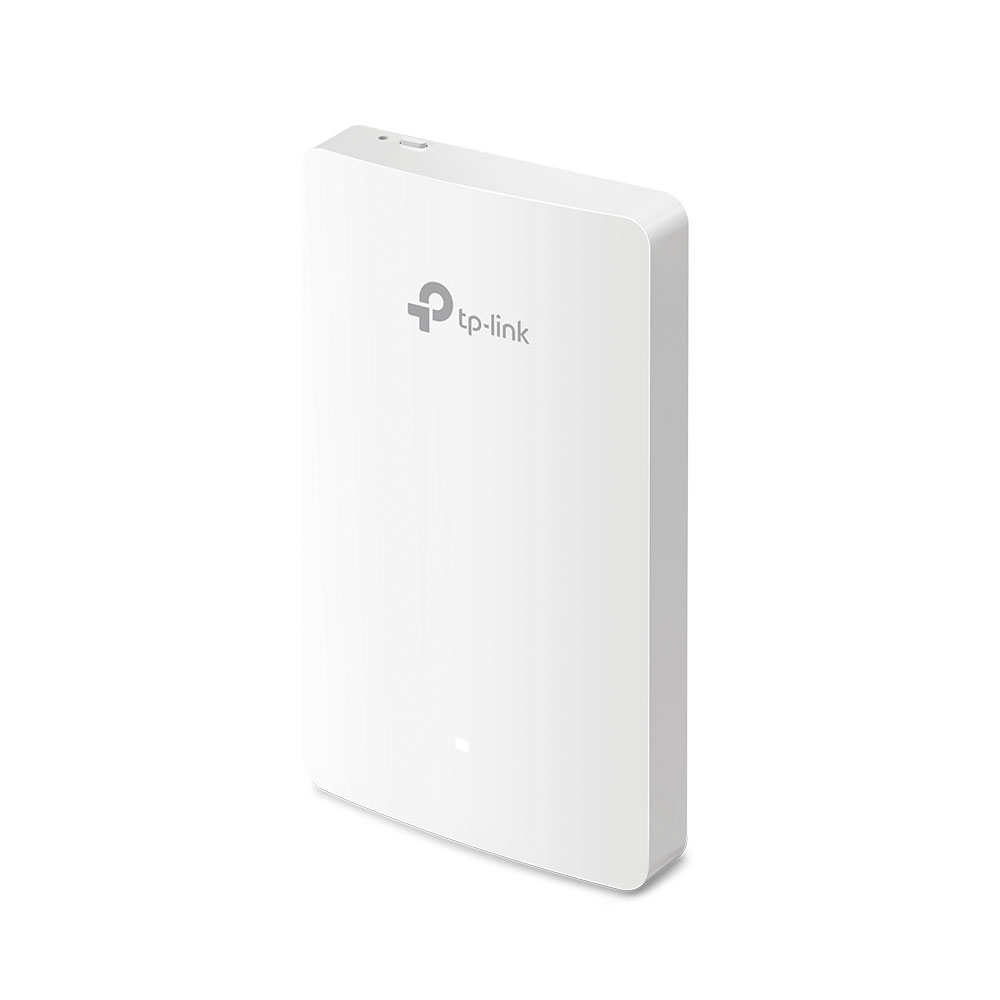

TP-Link Omada EAP235-Wall AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point Ultra-Slim. High-Performance. Built For In-Room Networking. The TP-Link EAP235-Wall delivers AC1200 dual-band Wi-Fi with 2?2 MU-MIMO in a sleek 15mm wall-plate design that blends seamlessly into hotels, offices and student residences. Equipped with 4? Gigabit Ethernet ports including PoE pass-through, it powers both wireless and wired devices from a single installation point. Integrated with Omada SDN for centralised cloud management, seamless roaming and enterprise-grade security, it?s a professional solution for scalable, in-room connectivity.

Key features:
• Elegant Ultra-Slim Design – 15mm Low-profile construction blends seamlessly into hotels, hospitals, offices and dormitories • Easy Installation with PoE Support – Mounts into standard EU or US wall junction boxes with PoE for flexible deployment • 4× Gigabit Ethernet Ports – 1× Uplink plus 3× Downlink ports, with PoE pass-through on one downlink port to power wired devices • AC1200 Dual-Band Wi-Fi – 802.11ac Wave 2 with 2×2 MU-MIMO delivers speeds up to 1,200Mbps for high-density environments • Omada SDN Integration – Cloud management and Omada App support for centralised control and easy monitoring • Enterprise-Grade Security – Advanced wireless protection to reduce network security threats • Secure Guest Network – Supports Facebook Wi-Fi/SMS authentication and multiple secure access options SPECIFICATIONS HARDWARE FEATURES • Interface: 1× Gigabit Uplink Port, 3× 10/100/1000Mbps Downlink Ports (1× PoE Out, up to 13W with 802.3at Input) • Physical Security Lock: Yes • Button: Reset • Power Supply: 802.3af/802.3at PoE • Power Consumption: 9.8W (24.4W with PoE Out) • Dimensions: 143 × 86 × 20mm • Antennas: 2× Dual-Band Internal Antennas – 2.4GHz: 2× 4dBi – 5.0GHz: 2× 4dBi • Mounting: Wall-Plate Mounting WIRELESS FEATURES • Wireless Standards: IEEE 802.11a/b/g/n/ac • Frequency: 2.4GHz and 5.0GHz • Signal Rate: – 5.0GHz: up to 867Mbps – 2.4GHz: up to 300Mbps • SSIDs: up to 16× SSIDs (8× per Band) • MU-MIMO: Yes • Band Steering: Yes • Beamforming: Yes • QoS (WMM): Yes • Load Balance: Yes • Rate Limit: Yes • Reboot Schedule and Wireless Schedule: Yes • Wireless Statistics: Based on SSID/AP/Client WIRELESS SECURITY • Captive Portal Authentication • Access Control • Wireless MAC Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Local LAN Port-Based VLAN • Rogue AP Detection • 802.1X Support • Encryption: 64/128/152-bit WEP, WPA/WPA2-PSK, WPA/WPA2-Enterprise TRANSMISSION POWER • CE: ≤20dBm (2.4GHz, EIRP), ≤23dBm (5.0GHz, EIRP) • FCC: ≤21dBm (2.4GHz), ≤21dBm (5.0GHz) MANAGEMENT • Omada Cloud Access: Yes • Omada App: Yes • Omada Cloud Controller: Yes • Omada Controller Software: Yes • Centralised Management: Omada Cloud-Based Controller, OC300, OC200, Omada Software Controller • Email Alerts: Yes • LED On/Off Control: Yes • Management MAC Access Control: Yes • SNMP: v1, v2c • System Logging: Local/Remote Syslog • SSH: Yes • Web-Based Management: HTTP/HTTPS • L3 Management: Yes • Multi-Site Management: Yes • Management VLAN: Yes CERTIFICATION • CE • FCC • RoHS ENVIRONMENT • Operating Temperature: 0~40°C • Storage Temperature: -40~70°C • Operating Humidity: 10~90% RH (Non-Condensing) • Storage Humidity: 5~90% RH (Non-Condensing)
