TP-LINK AC1750 DUAL BAND WIRELESS AC ACCESS POINT

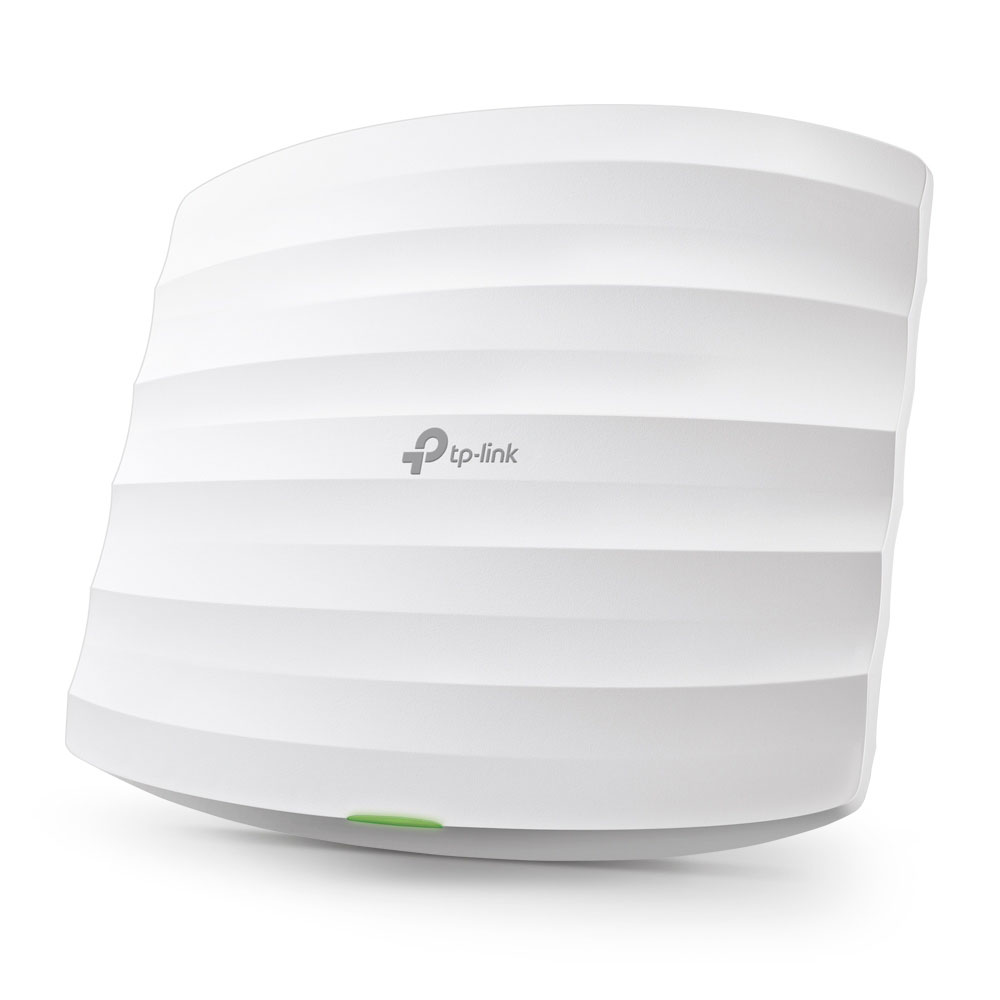

TP-Link EAP245 AC1750 Dual Band Wireless MU-MIMO Gigabit Ceiling Mount Access Point This dual-band access point delivers combined Wi-Fi speeds of up to 1750 Mbps, with 450 Mbps on the 2.4 GHz band and 1300 Mbps on the 5 GHz band for high-performance connectivity. It supports seamless roaming to keep video calls and streams uninterrupted as users move between locations. With free cloud-based centralized management and the Omada app, network setup and control are effortless from anywhere. Power over Ethernet (802.3at/802.3af) enables flexible and cost-effective installation, while the secure guest network offers multiple authentication options including SMS, Facebook Wi-Fi, and voucher login. Advanced wireless security and management VLAN support provide enhanced protection and control. Band steering intelligently directs devices to the faster 5 GHz band, and load balancing ensures smooth, stable connections even in high-density environments.

Key features:
• Simultaneous 450Mbps on 2.4GHz and 1300Mbps on 5GHz totals 1750Mbps Wi-Fi speeds • Supports Seamless Roaming so even video streams and voice calls are unaffected as users move between locations • Free cloud centralised management and Omada app for ultra convenience and easy management • Support Power over Ethernet(802.3at/802.3af) for convenient and affordable installation • Secure guest network along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies • Band Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections • Load balance ensures large numbers of users have smooth network experiences in high density business networks • Supports management VLAN for an enhanced network management HARDWARE FEATURES • Interface: 2 × Gigabit Ethernet (RJ-45) Port (One port supports IEEE802.3af PoE and Passive PoE) • Physical Security Lock: Yes • Button: Reset • Power Supply: 802.3af/A PoE, 48V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included) • Power Consumption: 12.3 W • Dimensions ( W x D x H ): 205.5 × 181.5 × 37.1mm • Antenna Type: Internal Omni, 2.4GHz: 3* 3.5dBi, 5GHz: 3*4dBi • Mounting: Ceiling /Wall Mounting (Kits included) WIRELESS FEATURES • Wireless Standards: IEEE 802.11ac/n/g/b/a • Frequency: 2.4GHz and 5GHz • Signal Rate: 5GHz: Up to 1300Mbps, 2.4GHz:Up to 450Mbps • Wireless Functions: Multiple SSIDs (Up to 16 SSIDs, 8 for each band), Enable/Disable Wireless Radio, Automatic Channel Assignment, Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM), MU-MIMO, Seamless Roaming Band Steering, Load Balance, Airtime Fairness, Beamforming, Rate Limit, Reboot Schedule, Wireless Schedule, Wireless Statistics based on SSID/AP/Client • Wireless Security: Captive Portal Authentication, Access Control, Wireless Mac Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping • Rogue AP Detection, 802.1X Support, 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK • Transmission Power: CE: ≤20dBm(2.4GHz), ≤23dBm(5GHz), FCC: ≤24dBm(2.4GHz), ≤24dBm(5GHz) MANAGEMENT • Omada App: Yes • Centralised Management: Omada Software Controller, OC200 • Cloud Access: Yes (Through Omada Software Controller or OC200) • Email Alerts: Yes • LED ON/OFF ControlYes • Management MAC Access Control: Yes • SNMP: Yes • System Logging Local/Remote Syslog: Local/Remote Syslog • SSH: Yes • Web-based Management: HTTP/HTTPS • L3 Management: Yes • Multi-site Management: Yes • Management VLAN: Yes OTHERS • Certification: CE, FCC, RoHS • System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux
