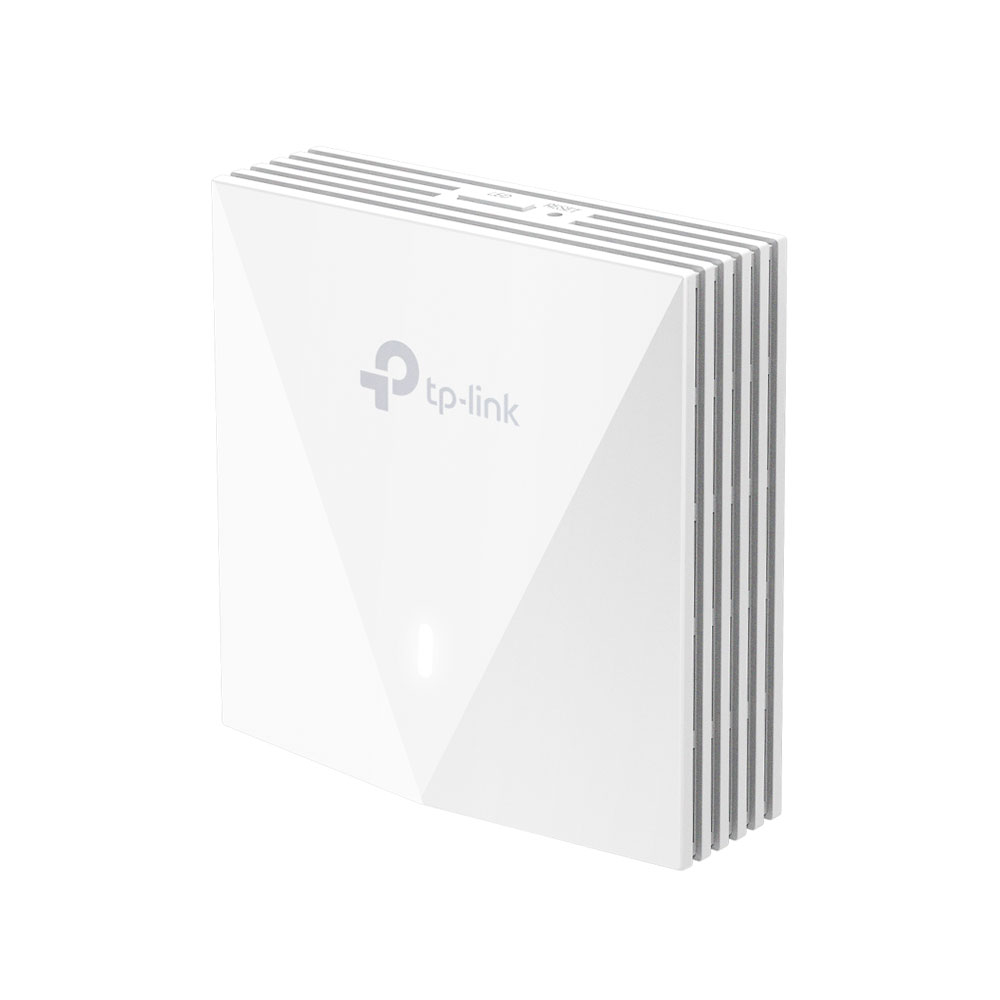

TP-LINK AX3000 WALL PLATE WI-FI6 ACCESS POINT

TP-Link EAP650-Wall AX3000 Wi-Fi 6 Wall Plate Access Point Powerful In-Room Wi-Fi 6 with Wired Flexibility. The TP-Link EAP650-Wall delivers ultra-fast AX3000 dual-band Wi-Fi 6 in a compact wall-plate design, perfect for hotels, offices and student residences. With multiple Gigabit ports and PoE support, it provides both high-speed wireless and reliable wired connectivity from a single installation point. Integrated with Omada SDN for centralised cloud management, seamless roaming and enterprise-grade security, the EAP650-Wall makes it easy to deploy scalable, high-performance networks across multiple rooms and locations.

Key features:
• Blazing-Fast AX3000 Wi-Fi 6 Speeds – Simultaneous 574Mbps on 2.4GHz and 2,402Mbps on 5.0GHz totals 2,976Mbps Wi-Fi speeds • Higher Network Efficiency – Deliver data to more devices at the same time with less lag • Complete In-Room Wi-Fi Coverage – Guaranteed strong signals and corner-to-corner Wi-Fi coverage • Gigabit Port – Connect wired devices with one downlink gigabit port • Centralised Cloud Management – Integrates into Omada SDN for cloud access and remote management • Secure Guest Network – Implement multiple authentication options (SMS/Voucher) packed with high-quality wireless security technologies • Easy Installation and PoE Support – Easy-to-install design, compatible with 86mm and EU standard junction box and 802.3af/at PoE support SPECIFICATIONS HARDWARE FEATURES • Interface: – 1× Gigabit Uplink Port – 3× 10/100/1000Mbps Downlink Ports (1× PoE Out Supported) • Physical Security Lock: Yes • Button: Reset • Power Supply: 802.3af/802.3at PoE • Power Consumption: 12.5W (Without PoE Out) • Dimensions: 143 × 86 × 20mm • Antennas: Internal Dual-Band Antennas – 2.4GHz: 2× 4dBi – 5.0GHz: 2× 5dBi • Mounting: Wall-Plate Mounting WIRELESS FEATURES • Wireless Standards: IEEE 802.11ax/ac/n/g/b/a • Frequency: 2.4GHz and 5.0GHz • Signal Rate: – 5.0GHz: up to 2402Mbps – 2.4GHz: up to 574Mbps • 1024-QAM: Yes • OFDMA: Yes • MU-MIMO: Yes • HE160: Yes • SSIDs: up to 16× SSIDs (8× per Band) • Seamless Roaming: Yes • Omada Mesh: Yes • Band Steering: Yes • Load Balance: Yes • Airtime Fairness: Yes • Beamforming: Yes • QoS (WMM): Yes • Rate Limit: Yes • Reboot Schedule and Wireless Schedule: Yes • Wireless Statistics: Based on SSID/AP/Client WIRELESS SECURITY • Captive Portal Authentication • Access Control • Wireless MAC Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Local LAN Port-Based VLAN • Rogue AP Detection • 802.1X Support • Encryption: WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise TRANSMISSION POWER • CE: ≤20dBm (2.4GHz, EIRP), ≤23dBm (5.0GHz, EIRP) • FCC: ≤25dBm (2.4GHz), ≤25dBm (5.0GHz) MANAGEMENT • Omada App: Yes • Centralised Management: Omada Cloud-Based Controller, OC300, OC200, Omada Software Controller • Cloud Access: Yes (Through OC300, OC200, Omada Cloud-Based Controller or Omada Software Controller) • Email Alerts: Yes • LED On/Off Control: Yes • Management MAC Access Control: Yes • SNMP: v1, v2c, v3 • System Logging: Local/Remote Syslog • SSH: Yes • Web-Based Management: HTTP/HTTPS • L3 Management: Yes • Multi-Site Management: Yes • Management VLAN: Yes • Zero-Touch Provisioning: Yes (Requires Omada Cloud-Based Controller) CERTIFICATION • CE • FCC • RoHS ENVIRONMENT • Operating Temperature: 0~40°C • Storage Temperature: -40~70°C • Operating Humidity: 10~90% RH (Non-Condensing) • Storage Humidity: 5~90% RH (Non-Condensing)
