TP-LINK OMADA AX3000 WIFI6 AP ULTRA

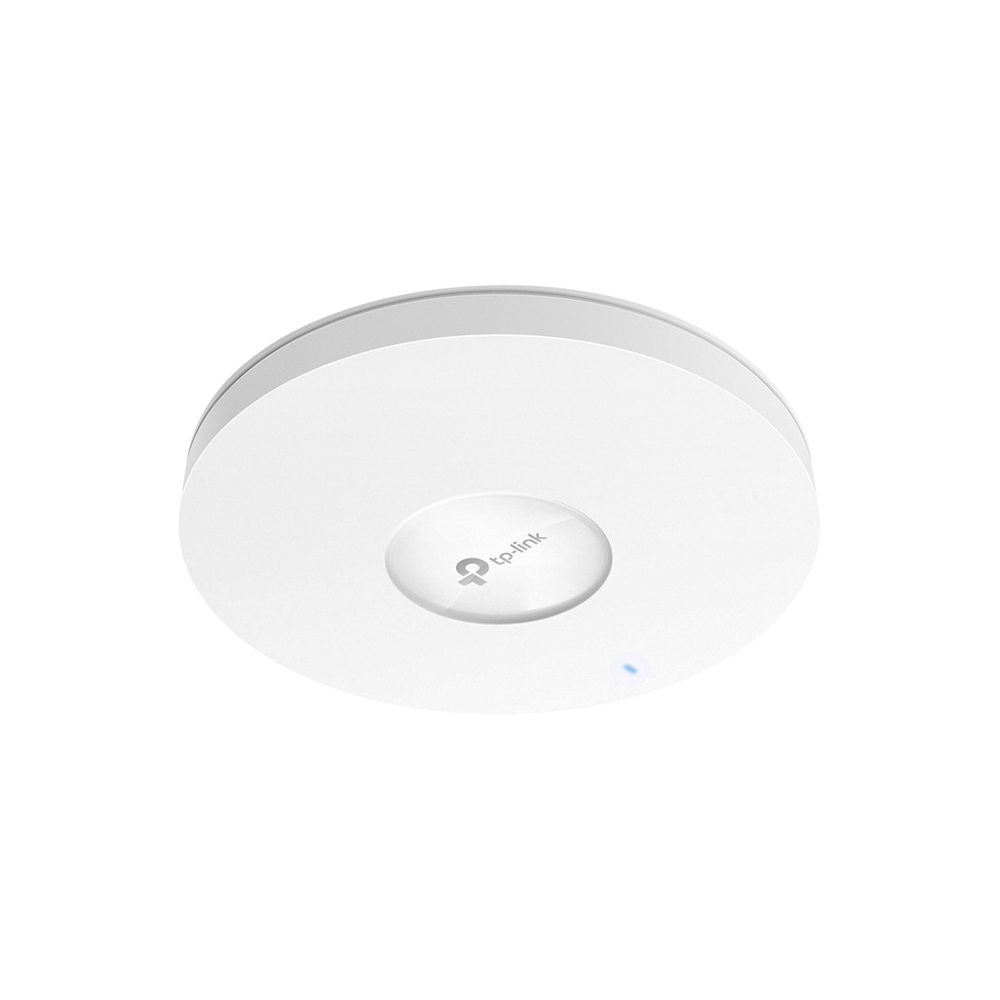

TP-Link Omada EAP653 UR AX3000 Ceiling Mount Wi-Fi 6 Access Point More antennas with high transmission power offer robust and extensive wireless coverage. Always have full coverage for your office.

Key features:
• Ultra-fast Wi-Fi 6 speeds: 2402Mbps on 5GHz t+ 574Mbps on 2.4GHz • Ultra-range wireless coverage by more antennas with higher transmit power • Supports Wi-Fi 6 technologies, such as HE160, 1024-QAM, etc • Advanced Features: Omada Mesh, Seamless Roaming, etc • PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter not included) • Ultra-Slim Design: Φ6.3in × 1.3in elegant design brings more agility • Integrates with the Omada SDN platform for centralized management SPECIFICATIONS HARDWARE FEATURES • Interface: 1× Gigabit PoE+ Port • Button: Reset • Power Supply: – 802.3at PoE – 12V DC / 1.5 A (Power Adapter IS NOT included) – 48V Passive PoE • Max. Power Consumption: 14.2W • Dimensions ( W x D x H ): 160 × 160 × 33.6mm • Antenna: Internal Omni – 2.4GHz: 2× 5dBi – 5GHz: 3× 5dBi • Mounting: – Ceiling /Wall Mounting (Kits included) – Junction Box Mounting WIRELESS FEATURES • Coverage: 185m² • Concurrent Clients: 250+ • Wireless Standards: IEEE 802.11ax/ac/n/g/b/a • Frequency: 2.4GHz and 5GHz • Signal Rate: – 5GHz: Up to 2402Mbps – 2.4GHz: Up to 574Mbps WIRELESS FUNCTIONS • 1024-QAM • 4× Longer OFDM Symbol • OFDMA • Multiple SSIDs (Up to 16 SSIDs, 8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • MU-MIMO(2G: 2*2 MU-MIMO DL/UL; 5G:2*2 MU-MIMO DL/UL) • HE160 (160 MHz Bandwidth) • Seamless Roaming(802.11k/v/r)§ • Omada Mesh • Band Steering • Load Balance • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client WIRELESS SECURITY • Captive Portal Authentication • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise TRANSMISSION POWER • CE: – <20 dBm(2.4 GHz, EIRP) – <23 dBm(5 GHz, Band1 & Band2, EIRP) – <29 dBm(5 GHz, Band3, EIRP) • FCC: – <26 dBm (2.4 GHz) – <27 dBm (5 GHz) MANAGEMENT FEATURES • Omada App: Yes • CentraliSed Management: – Omada Hardware Controller (OC300) – Omada Hardware Controller (OC200) – Omada Software Controller – Omada Cloud-Based Controller • Cloud Access: Yes Requiring the use of OC300, OC200, Omada Cloud-Based Controller or Omada Software Controller • Email Alerts: Yes • LED ON/OFF Control: Yes • Management MAC Access Control: Yes • SNMP: v1, v2c, v3 • System Logging Local/Remote Syslog: Local/Remote Syslog • SSH: Yes • Web-based Management: HTTP/HTTPS • L3 Management: Yes • Multi-site Management: Yes • Management VLAN: Yes • Zero-Touch Provisioning: Yes Requiring the use of Omada Cloud-Based Controller OTHERS • Certification: CE, FCC, RoHS • System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux • Environment: – Operating Temperature: 0–40 °C (32–104 ℉) – Storage Temperature: -40–70 °C (-40–158 ℉) – Operating Humidity: 10–90% RH non-condensing – Storage Humidity: 5–90% RH non-condensing Note: DC adapter is not included in the package, and is sold separately.
