TP-LINK OMADA BEAM BRIDGE 5 UR KIT 5.0GHZ 867MBPS 15KM ULTRA-RANGE OUTDOOR PTP WIRELESS BRIDGE

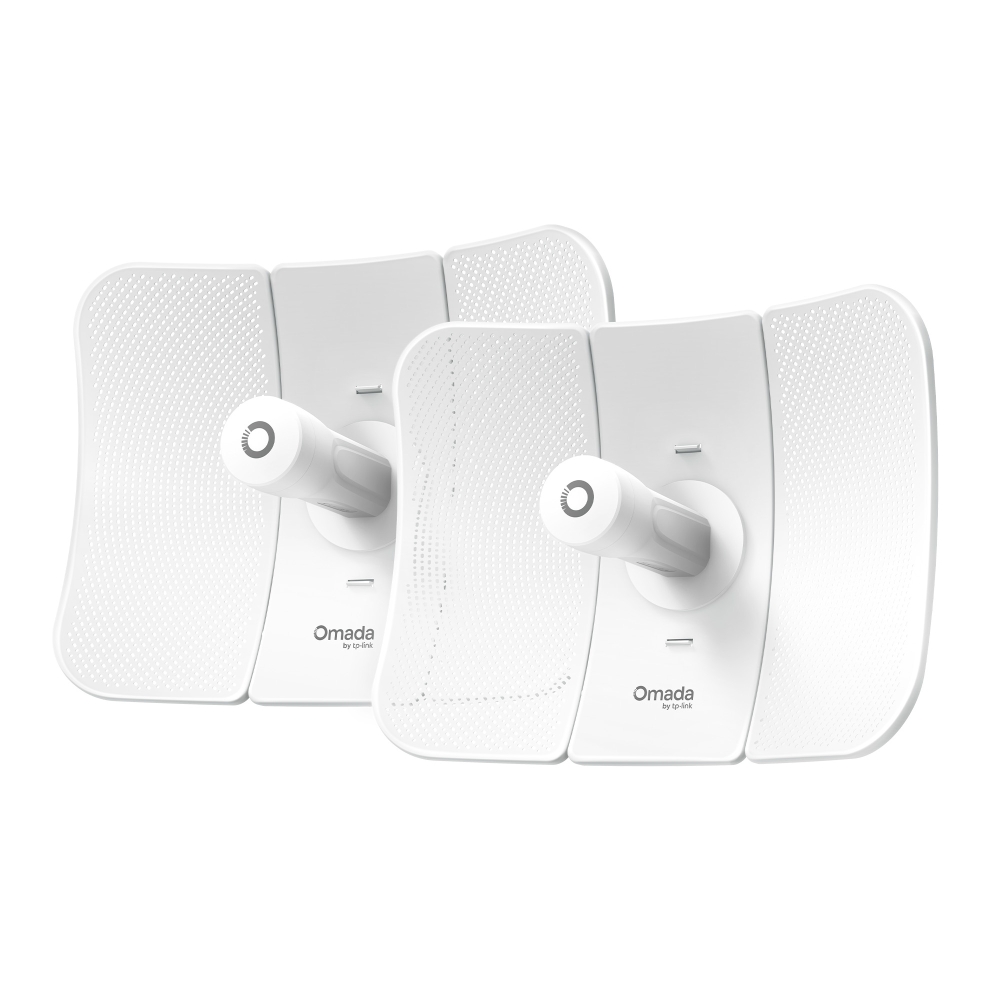

TP-Link Omada Beam Bridge 5 UR KIT 5.0GHz 867Mbps 15km Ultra-Range Outdoor PtP Wireless Bridge Ultra-Range Wireless Connectivity for Remote Outdoor Locations. The TP-Link Omada Beam Bridge 5 UR KIT creates a high-speed point-to-point network link across distances up to 15km, providing a practical alternative where installing fibre or Ethernet cabling is difficult. The kit contains two preconfigured 5.0GHz bridges that automatically pair after power-up, simplifying deployment between remote buildings, cameras, construction sites, farms, substations and other distributed facilities. Each bridge combines 23dBi dual-polarised directional antennas with up to 867Mbps wireless performance, app-guided alignment, signal LEDs and installation speed testing. A Gigabit PoE input supports 802.3af or 24V/48V passive PoE, while IP65 weather resistance, 6kV surge protection and a -40~70°C operating range support demanding outdoor installations. Standalone and Omada SDN management provide local or centralised monitoring and configuration.

Key features:
• Up to 15km Transmission – Creates ultra-range point-to-point network links between remote locations • Preconfigured Two-Unit Kit – Includes a Main AP and Client AP that automatically pair after power-up • Up to 867Mbps Wireless Performance – Provides high-speed 5.0GHz connectivity for data, video and network extension • 23dBi Directional Antennas – Concentrate the wireless signal for stable long-distance communication • App-Guided Alignment – Displays real-time signal strength to help optimise bridge positioning • Installation Speed Testing – Verifies link performance through the Omada app during setup • LED Signal Indicators – Provide immediate visual assistance when aligning the two bridge units • Flexible PoE Support – Accepts IEEE 802.3af or 24V/48V passive PoE through the Gigabit Ethernet port • Outdoor-Ready Construction – Features IP65 weather resistance, 6kV surge protection and Class 16 wind resistance • Main and Client Role Switch – Allows each bridge to be assigned as the Main AP or Client AP • Omada SDN Integration – Supports centralised cloud management, remote monitoring and batch deployment • Pole-Mounting System – Includes the hardware required for secure outdoor pole installation SPECIFICATIONS WIRELESS • Wireless Application: Point-to-Point Wireless Bridge • Frequency Band: 5.0GHz • Wireless Standards: IEEE 802.11a/n/ac • Maximum Wireless Rate: Up to 867Mbps • Maximum Transmission Distance: Up to 15km • Channel Bandwidth: 20MHz, 40MHz and 80MHz • Wireless Configuration: 2×2 MIMO with 2 Spatial Streams • Antenna Type: Dual-Polarised Directional MIMO • Antennas per Bridge: 2× 23dBi • Horizontal Beamwidth: 9° • Vertical Beamwidth: 7° • Maximum Associated Stations: 8 BRIDGE FUNCTIONS • Pairing: Preconfigured Automatic Pairing • Device Roles: Main AP and Client AP • Role Selection: Physical Role Switch • Antenna Alignment: Omada App and LED Signal Indicators • Installation Speed Test: Yes • Automatic Channel Selection: Yes • Channel Optimisation: Yes • Rate Limiting: Yes • Guest Network: Yes CONNECTIVITY • Ethernet Interface per Bridge: 1× Gigabit RJ45 PoE Input Port • Supported Ethernet Speeds: 10Mbps, 100Mbps and 1Gbps • Maximum Ethernet Cable Length: 100m • Reset Button: Yes • Status Indicators: System, LAN and 4× Signal Strength LEDs POWER • PoE Input per Bridge: IEEE 802.3af PoE or 24V/48V Passive PoE • IEEE 802.3af Pin Assignment: Pins 1 and 2, Pins 3 and 6 • Passive PoE Pin Assignment: Positive Pins 4 and 5, Negative Pins 7 and 8 • Included Power Supply: 24V Passive PoE Adapter • Maximum Power Consumption per Bridge: 15.8W • Idle Power Consumption per Bridge: 2.87W MANAGEMENT • Standalone Management: Web Interface and Omada App • Centralised Management: Omada Central, Omada Hardware Controller and Omada Software Controller • Cloud Access: Yes, with a Compatible Omada Controller • Zero-Touch Provisioning: Yes • Remote Monitoring: Yes • Batch Provisioning: Yes • Management Protocols: SNMP and SSH • Configuration Backup and Restore: Yes • Email Alerts: Yes • LED Control: Yes SECURITY • Wireless Encryption: Yes • VLAN Support: Yes • Rogue Access Point Detection: Yes • MAC Filtering Capacity: Up to 4,000 Entries • Management VLAN: Yes PHYSICAL • Dimensions per Bridge (W × D × H): 366 × 280 × 207mm • Weight per Bridge: 1.1kg • Mounting Unit Weight: 48g • Mounting Method: Pole Mounting • Colour: White • Assembly Required: Yes PROTECTION AND ENVIRONMENTAL • Weather Resistance: IP65 when Correctly Pole Mounted • Ethernet Surge Protection: 6kV • ESD Protection: 30kV Air Discharge and 4kV Contact Discharge • Wind Resistance: Class 16 • Operating Temperature: -40~70°C • Storage Temperature: -40~70°C • Operating Humidity: 10~90% Non-Condensing • Storage Humidity: 5~90% Non-Condensing • Maximum Operating Altitude: Up to 2,000m COMPLIANCE • Certifications: CE, FCC and RoHS NOTES • Installation must be completed by a certified professional in accordance with local frequency, output-power and Dynamic Frequency Selection requirements • Shielded CAT5e or higher network cable with a grounding conductor is recommended for lightning and ESD protection • Omada SDN centralised and remote management requires a compatible Omada controller
