TP-LINK WIRELESS BRIDGE 5GHZ INDOOR/OUTDOOR

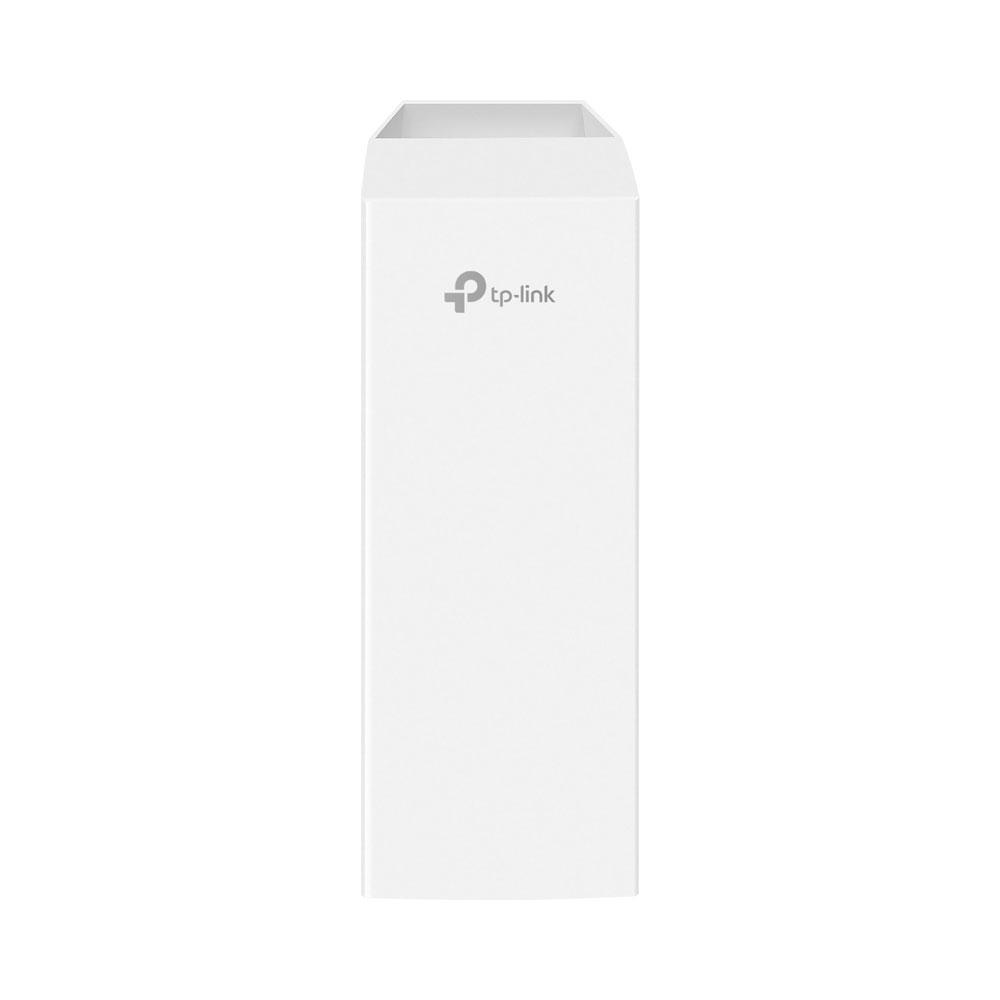

TP-Link Omada EAP215-bridge KIT 5.0GHz 867Mbps Long-Range Indoor/Outdoor Wireless Bridge Long-Range Speed. Reliable Outdoor Links. The TP-Link Omada EAP215-Bridge KIT delivers 867Mbps 5.0GHz 802.11ac performance with stable long-distance transmission up to 5km. Designed for indoor and outdoor deployment, it provides secure, high-speed point-to-point connectivity for CCTV backhaul, remote buildings and site extensions. With IP65 weatherproof protection, 6kV lightning resistance and Omada SDN support, it?s a robust, centrally managed solution for professional wireless bridging.

Key features:
• 867Mbps 802.11ac Performance – Delivers up to 867Mbps on the 5.0GHz band for high-speed wireless bridging • Extended 5km Long-Range Transmission – Engineered for reliable long-distance outdoor connectivity • Auto-Pairing With Agile LEDs – Simplifies deployment with quick pairing and visual alignment indicators • 3× Gigabit Ethernet Ports – Connect multiple high-speed IP cameras or network devices • Omada SDN Supported – Enables remote and centralised cloud-based management • IP65 Weatherproof With 6kV Lightning Protection – Built for stable all-weather outdoor operation SPECIFICATIONS HARDWARE FEATURES INTERFACE • 3× Gigabit Ethernet Ports BUTTON • Reset POWER SUPPLY • 12V DC • 24V Passive PoE (Adapter Included) POWER CONSUMPTION • 11.5W DIMENSIONS (W × D × H) • 79 × 60 × 224mm ANTENNA • Internal 2× Dual-Polarised Directional MIMO Antennas • 5.0GHz: 11dBi • Beamwidth: 35° Horizontal, 35° Vertical WEATHERPROOF ENCLOSURE • IP65 MOUNTING • Pole Mounting (Accessories Included) WIRELESS FEATURES COVERAGE • up to 5000m WIRELESS STANDARDS • IEEE 802.11a/b/g/n/ac FREQUENCY • 5.0GHz SIGNAL RATE • Up to 867Mbps WIRELESS FUNCTIONS • Mesh • 5G 2×2 MU-MIMO (DL) • Load Balance • Beamforming • Seamless Roaming (802.11r) • Airtime Fairness • Multiple SSIDs: 8 • Wireless Statistics • Wireless Schedule • Reboot Schedule • RADIUS Accounting • MAC Authentication • Static IP / Dynamic IP WIRELESS SECURITY • VLAN Support • Access Control • Rogue AP Detection • Captive Portal Authentication • Maximum MAC Filters: 4,000 • WPA-Personal / Enterprise • WPA2-Personal / Enterprise TRANSMISSION POWER CE • <23dBm (5.0GHz Band 1/2, EIRP) • <30dBm (5.0GHz Band 3, EIRP) FCC • <22dBm (5.0GHz Band 1/4) MANAGEMENT • Omada App • Restore and Backup • Firmware Update via Web • NTP CENTRALISED MANAGEMENT • Omada Hardware Controller (OC300, OC200) • Omada Software Controller • Omada Cloud-Based Controller CLOUD ACCESS • Yes (Requires OC300, OC200, Omada Software Controller or Omada Cloud-Based Controller) • LED On/Off Control • Management MAC Access Control • SNMP v1/v2c/v3 • SSH • Web-Based Management CERTIFICATION • CE • FCC • RoHS ENVIRONMENT • Operating Temperature: -40~70°C • Storage Temperature: -40~70°C • Operating Humidity: 10~90% Non-Condensing • Storage Humidity: 5~90% Non-Condensing
