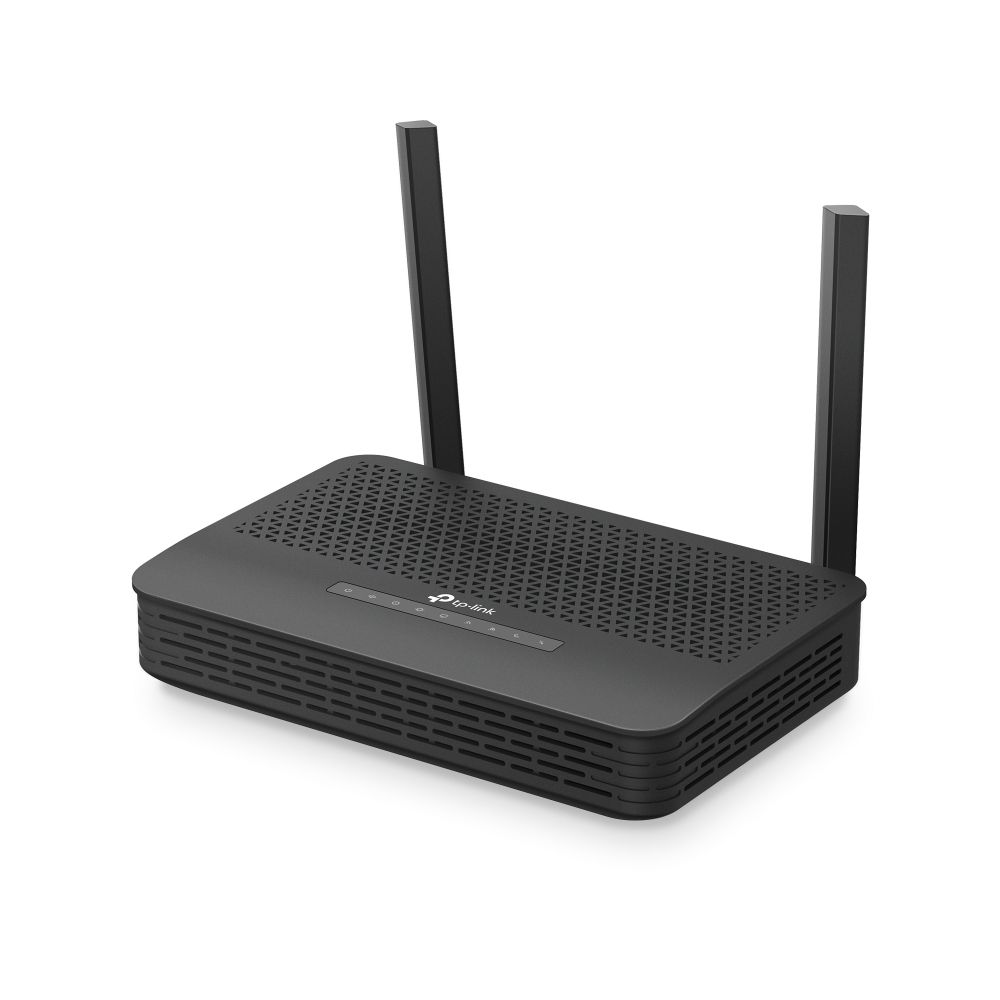

TP-LINK XX530V AX3000 DUAL-BAND WI-FI 6 GPON ROUTER WITH VOIP

TP-Link XX530v AX3000 Dual-Band Wi-Fi 6 GPON Router with VOIP High-Speed GPON, Wi-Fi 6 and VoIP in One Service Provider Router. The TP-Link XX530v is an AX3000 dual-band Wi-Fi 6 GPON router designed for high-speed fibre, voice and home networking deployments. Compliant with ITU-T G.984 GPON standards, it supports GPON data rates up to 2.488Gbps downstream and 1.244Gbps upstream for fast fibre connectivity. Dual-band Wi-Fi 6 delivers up to 2,402Mbps on 5.0GHz and 574Mbps on 2.4GHz, while OFDMA, MU-MIMO, Beamforming and EasyMesh support help improve wireless performance across connected homes. With Gigabit Ethernet ports, 1× FXS phone port, 1× USB2.0 port, VoIP support and Aginet remote management, the XX530v is ideal for ISP fibre and voice service deployments.

Key features:
• AX3000 Dual-Band Wi-Fi 6 – Delivers up to 2,402Mbps on 5.0GHz and 574Mbps on 2.4GHz • GPON Fibre Connectivity – Supports ITU-T G.984 GPON with up to 2.488Gbps downstream and 1.244Gbps upstream • VoIP Telephony – Includes FXS phone port support for voice services • Full Gigabit Ports – Provides 1× Gigabit WAN/LAN port and 3× Gigabit LAN ports • USB2.0 Port – Supports Samba, FTP and DLNA server functions • EasyMesh Support – Helps create a unified mesh network with compatible EasyMesh devices • Seamless Roaming – Supports IEEE 802.11k/v/r for smoother movement across compatible mesh networks • OFDMA and MU-MIMO – Improves Wi-Fi efficiency for multiple connected devices • Beamforming Technology – Focuses wireless signal towards connected devices for improved reliability • Aginet Remote Management – Supports Aginet App, OMCI, TR-069, TR-098 and TR-181 management • IGMP Support – Supports IGMP Proxy V1/V2/V3 and IGMP Snooping for multicast services • Multi-SSID Support – Creates multiple wireless networks for different users or services • VPN Server Support – Supports PPTP VPN, IPSec VPN and OpenVPN • Quality of Service – Hardware QoS and flow classification help prioritise network traffic SPECIFICATIONS • GPON Standard: ITU-T G.984, Class B+ • GPON Speed: 2.488Gbps Downstream, 1.244Gbps Upstream • GPON Port: 1× SC/APC GPON Port • GPON Distance: 0~20km Max. • GPON Wavelength: 1,490nm Downstream, 1,310nm Upstream • GPON Transmitting Power: 0.5~5dBm • GPON Receiving Sensitivity: -27dBm • GPON Saturated Power: -8dBm • Transmitter: DFB Laser • Receiver: PIN-TIA • Wireless Standard: IEEE 802.11a/n/ac/ax 5.0GHz, IEEE 802.11b/g/n/ax 2.4GHz • Wi-Fi Speed: AX3000 • 5.0GHz Speed: Up to 2,402Mbps • 2.4GHz Speed: Up to 574Mbps • Frequency: 2.4GHz and 5.0GHz • Interfaces: 1× 10/100/1000Mbps WAN/LAN Port, 3× 10/100/1000Mbps LAN Ports, 1× USB2.0 Port, 1× FXS Port, 1× SC/APC GPON Port • Antennas: 2× High-Performance External Dual-Band Antennas, 1× Internal 5.0GHz Antenna • Buttons: Power On/Off Button, WPS/Wi-Fi Button, Reset Button • Mesh: EasyMesh, IEEE 802.11k/v/r, Self-Healing, Seamless Roaming • Wireless Functions: Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics • Wireless Schedule: Supports 2.4GHz and 5.0GHz Wireless Schedule • Wireless Security: WPA-PSK, WPA2-PSK, WPA/WPA2 Mixed Mode, 802.1x WPA2 Enterprise • Protocols: IPv4, IPv6 • Advanced Functions: VoIP, Parental Controls, Port Forwarding, TX Beamforming, MU-MIMO, IGMP Proxy, IGMP Snooping, Airtime Fairness, Band Steering, Multi-SSID, Wi-Fi Schedule • USB Functions: Samba, FTP, DLNA Server • Management: Local Management, Remote Management, Aginet App, OMCI, TR-069, TR-098, TR-181 • Quality of Service: Hardware QoS, Flow Classification • VPN Server: PPTP VPN, IPSec VPN, OpenVPN • Dynamic DNS: TP-Link, DynDNS, NO-IP • Firewall Security: DoS, IPv4 SPI Firewall, IPv6 Firewall, IP And MAC Address Binding, Access Control • DHCP: Server, DHCP Client List, Address Reservation • External Power Supply: 12V 1.5A • Dimensions: 203 × 139.4 × 45.7mm • Operating Temperature: 0~40°C • Storage Temperature: -40~60°C • Certification: CE NOTES • GPON service must be provisioned by a compatible service provider • VoIP functionality depends on service provider configuration and SIP/voice service availability
