VIGI SP9030 INTELLIGENT SOLAR POWER SUPPLY SYSTEM WITH 90W PANEL AND 30AH LITHIUM BATTERY

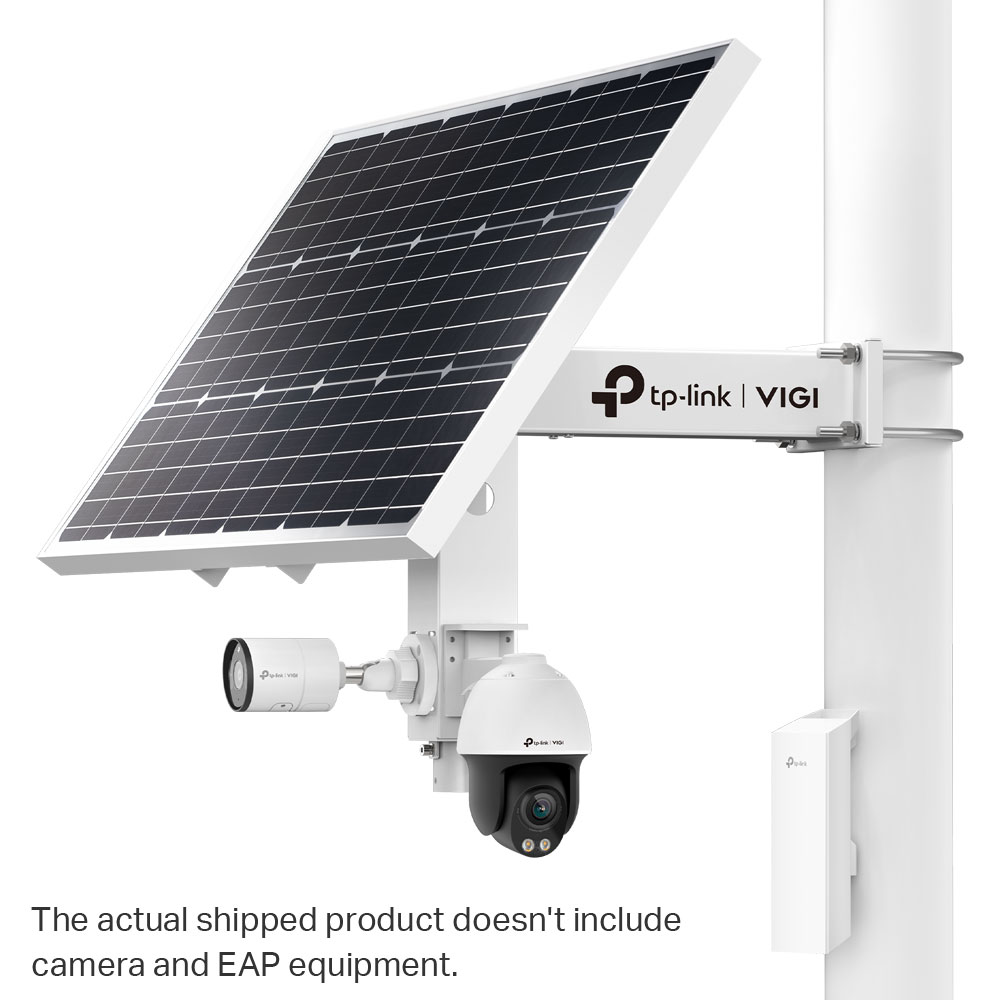

VIGI SP9030 Intelligent Solar Power Supply System with 90W Panel and 30Ah Lithium Battery Reliable Solar Power Beyond the Grid. The VIGI SP9030 provides a practical solar-powered energy solution for outdoor surveillance cameras, wireless bridges and other compatible network equipment where conventional electrical wiring is difficult or unavailable. Its 90W Grade-A monocrystalline solar panel works with an MPPT charging controller and a 31.2Ah lithium battery to improve charging efficiency and maintain dependable operation. Supporting intelligent auxiliary heating extends battery charging and discharging performance in low-temperature environments, while six selectable panel angles support more effective positioning for available sunlight. Three DC power outputs accommodate compatible equipment and built-in monitoring provides battery, load and power-consumption information. Remote and local management functions simplify system monitoring, firmware maintenance and troubleshooting, while the IP66-rated construction and corrosion-resistant mounting components support demanding outdoor installations.

Key features:
• Off-Grid Outdoor Power – Supplies compatible surveillance and networking equipment where mains power is unavailable • High-Efficiency Solar Panel – Uses a 90W Grade-A monocrystalline panel with 21.6% conversion efficiency • High-Capacity Lithium Battery – Provides a precise rated capacity of 31.2Ah at 10.8V • Efficient MPPT Charging – Optimises available solar energy and improves charging efficiency compared with PWM controllers • Intelligent Auxiliary Heating – Extends battery operation across low-temperature charging and discharging conditions • Adjustable Solar Alignment – Offers six manually selectable angles for improved positioning towards available sunlight • Remote System Management – Supports status monitoring, alerts, firmware updates, rebooting and reset functions • Local and Web Management – Provides local LAN and browser-based system administration • Multiple DC Power Outputs – Supplies up to three compatible DC-powered devices • Outdoor-Ready Construction – Combines IP66 protection with galvanised-steel mounting components, an aluminium panel frame and tempered glass SPECIFICATIONS GENERAL • Product Weight: 15kg • Package Weight: 17.5kg • Package Dimensions: 1,110 × 615 × 225mm SOLAR PANEL • Panel Type: Grade-A Monocrystalline Silicon • Rated Power: 90W • Rated Voltage: 18V • Conversion Efficiency: 21.6% • Rated Service Life: 25+ Years • Dimensions: 998 × 516 × 30mm • Surface Protection: 3.2mm Tempered Glass • Panel Frame: Aluminium • Manual Angle Adjustment: 5°/15°/25°/35°/45°/55° BATTERY • Battery Type: Lithium • Rated Capacity: 31.2Ah • Rated Voltage: 10.8V • Maximum Output Voltage: 12.6V • Cycle Life: More Than 500 Cycles • Intelligent Auxiliary Heating: Supported • Dimensions: 250 × 74 × 74mm • Standard Charging Temperature: 0~45°C • Charging Temperature with Auxiliary Heating: -30~45°C • Standard Discharging Temperature: -20~60°C • Discharging Temperature with Auxiliary Heating: -30~60°C CHARGING AND PROTECTION • Charging Controller: Maximum Power Point Tracking • Load Control: Supported • High and Low-Temperature Protection: Supported • Overdischarge Protection: Supported • Smart Charging Control Range: -30~5°C • Automatic Fault Detection and Restart: Supported INTERFACES • Network Interface: 1× 10/100Mbps RJ45 • Solar Input: 1× Photovoltaic Panel Connector • Load Outputs: 3× 5.5mm DC Power Plugs • DC Output 1: 9~12.6V DC, 2A • DC Output 2: 9~12.6V DC, 2A • DC Output 3: 12V DC, 2A INDICATORS • System Indicator: 1× SYS LED • Network Indicator: 1× LAN LED • Solar Indicator: 1× PV LED • Battery Indicator: 1× BAT LED • Indicator Colour: Blue MANAGEMENT • Web Management: Supported • Local LAN Management: Supported • Mobile Remote Management: Supported • Account Management: Supported • Power-Consumption Statistics: Supported • Real-Time Load Status: Supported • Battery-Level Display: Supported • Remote Message Notifications: Supported • Remote Firmware Updates: Supported • Remote Reboot: Supported • Remote Reset: Supported • Time-Zone Selection: Supported • Region Selection: Supported • Schedule Saving: Supported CONSTRUCTION AND ENVIRONMENTAL • Mounting Material: SGCC Galvanised Steel • Ingress Protection: IP66 • Operating Temperature: -30~60°C with Intelligent Auxiliary Heating • Operating Humidity: 10~90% RH, Non-Condensing COMPLIANCE • System Certifications: CE, FCC, VCCI and IC • Battery Certifications: CB and PSE
