CAMSWITCH 8 MOBILE

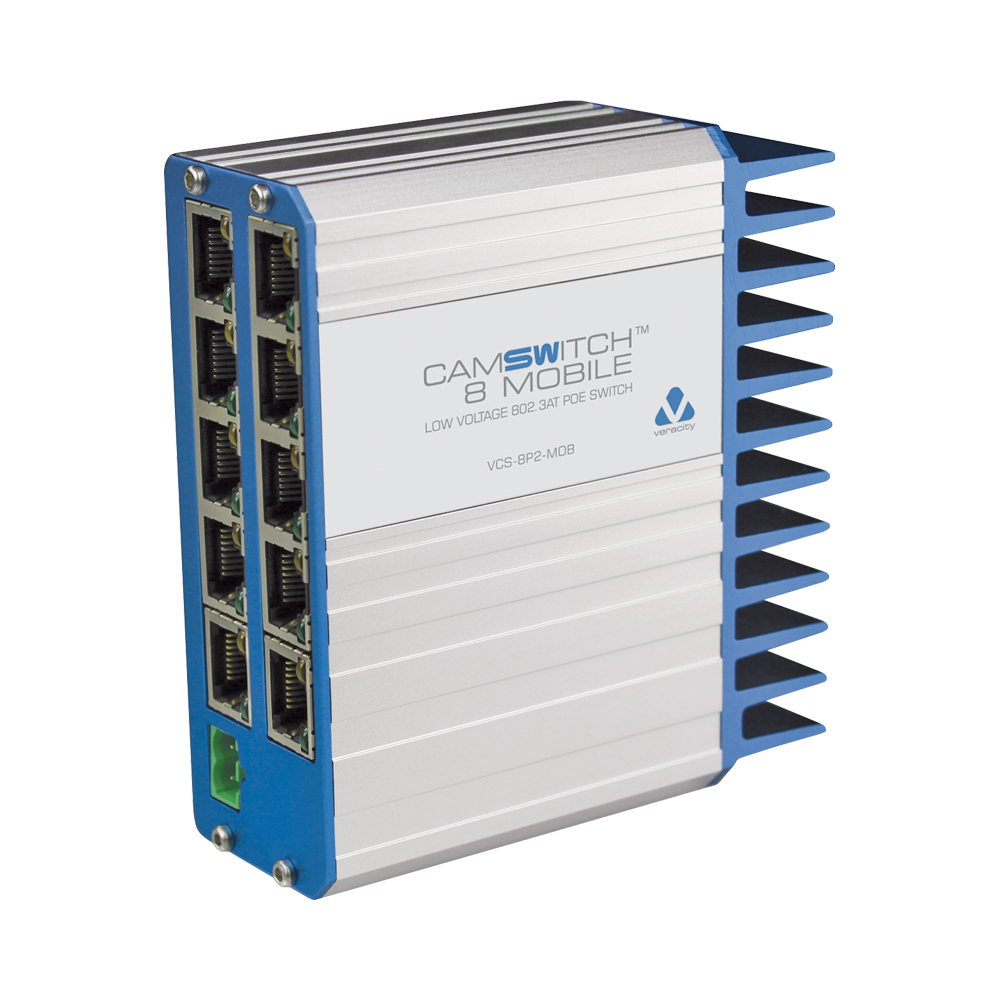

Veracity VCS-8P2-MOB CAMSWITCH 8 Mobile – Low-Voltage 8-Port PoE Network Switch for Mobile Applications Reliable PoE Networking for Mobile Surveillance Systems. The Veracity VCS-8P2-MOB CAMSWITCH 8 Mobile is a rugged 8-port PoE network switch designed specifically for mobile and low-voltage applications such as vehicles and transport surveillance systems. It delivers dependable power and data to multiple IP cameras while operating efficiently in demanding mobile environments, ensuring stable connectivity for onboard security installations.

Key features:
• Designed for Mobile Power Systems – Operates from a 12~24V DC source such as a vehicle battery, ideal for mobile surveillance installations • 8× PoE Camera Ports – Connect and power up to eight IP cameras using IEEE 802.3af / 802.3at PoE and PoE+ outputs • 80W Total PoE Budget – Provides up to 80W of power to connected devices for reliable camera operation • 2× Dedicated Uplink Ports – Additional network ports for connecting devices such as a mobile NVR, NTP time server or 4G modem • Auto-Configuring 10/100 Switch – Plug-and-play Ethernet switching with automatic network configuration • Rugged Mountable Enclosure – Durable housing with adjustable mounting brackets for secure installation in vehicles or mobile environments SPECIFICATIONS OWER INPUT DC CONNECTOR • Detachable Screw Terminal DC VOLTAGE • 8.5~40V DC (Minimum Startup Voltage: 10.5V) • Supports Engine Cranking and Reduced Over-Discharge • DC Only (Contact Veracity for 24VAC Applications) FUSING • Use of an External Fuse is Recommended • Rating: 5A for 24VDC or 10A for 12VDC Supply (Slow Blow Type) DEVICE POWER • 3W POE OUTPUTS POE STANDARD • IEEE 802.3af / IEEE 802.3at Compatible • Not Isolated from DC Input (For Use in Closed System Transport Applications) • Connected Devices Must be IEEE Compliant • Veracity Enhanced PoE Supports Maximum Efficiency and Range POWER BUDGET 24V INPUT • 80W Total Camera Power 12V INPUT • 80W (Reduce to 65W for Max. 30°C Temperature Rise Above Ambient) <12V INPUT • 60W (Reduce to 50W if Voltage Can Drop Below 10V) NOTES • PoE Power Conversion Produces Heat • Above Limits are for Horizontal Mounting with Ventilation • Installation in Enclosed Spaces Will Cause Additional Heating and Power Limiting • Warning: Enclosure May Become Hot in Operation ETHERNET INTERFACE CONNECTOR • RJ45, 8-Port Unmanaged 10/100 Switch RATES • 100Base-TX or 100Base-T • Duplex Auto-Configuring for Speed CABLE • Straight Through or Crossover CAT5, CAT5e or CAT6 Patch • Supports VLAN Trunking LED INDICATORS GREEN – POE PORTS • Constant: PoE Enabled • Off: No PoE Requested GREEN – NON POE PORTS • Constant: Power OK • Off: No Power YELLOW • Constant: Ethernet OK • Blink: Network Activity PHYSICAL / ENVIRONMENTAL DIMENSIONS (L × W × H) • 110mm (131mm with Side Clips) × 100mm (Including Connectors) × 40mm MOUNTING (BRACKETS INCLUDED) • 5mm Mounting Holes on 122mm Centres WEIGHT • 350g OPERATING TEMPERATURE • -10~50°C RELATIVE HUMIDITY • Up to 85%, Non-Condensing COMPLIANCE • CE • FCC • RoHS
