EASY FIBER SC SIM MULTIMODE FIBER OPTIC CONNECTOR

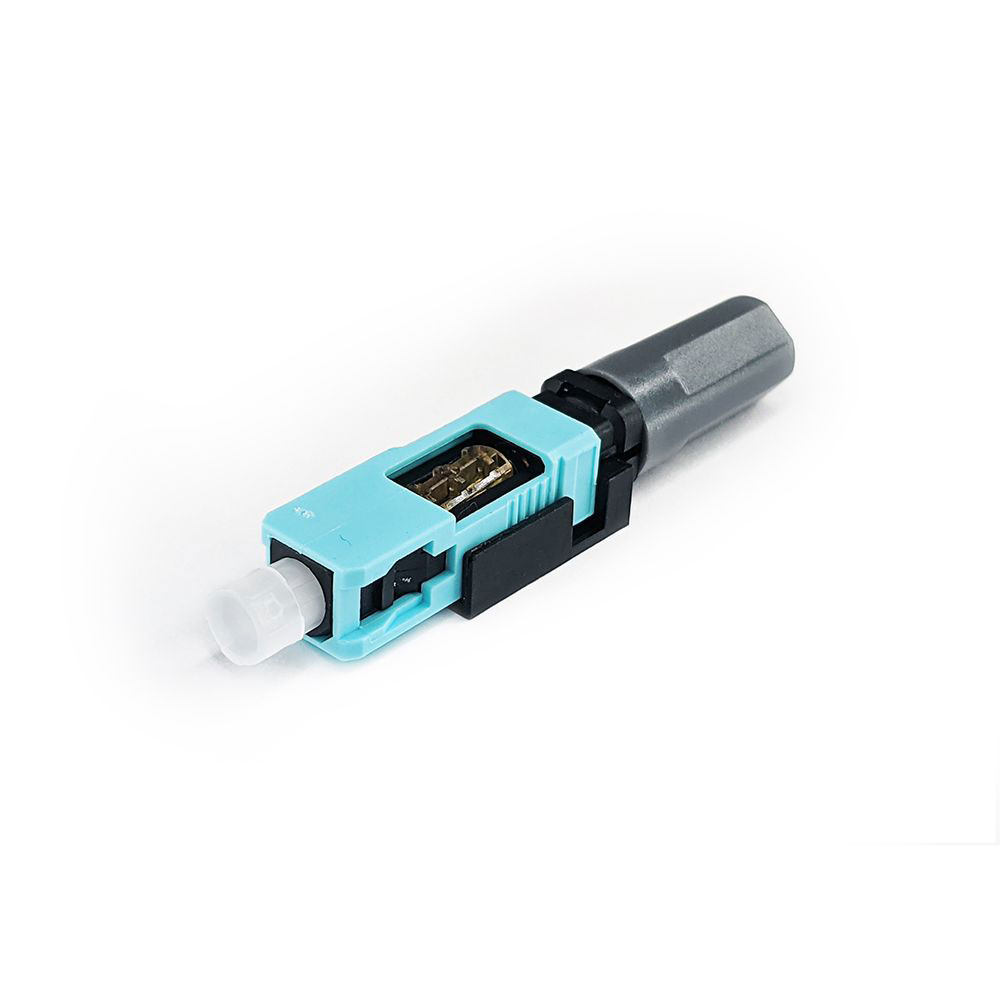

EasyFiber EF-CON-MM-SC Field-Assembly SC Simplex Multimode OM3 / OM4 Fiber Connector The EasyFiber Field‑assembly SC Simplex Multi‑mode OM3 / OM4 Fiber Connector is a field-installable SC-type fiber optic connector designed for quick and reliable termination of multimode optical fiber cable without the need for epoxy, polishing, or special tools. It supports both OM3 and OM4 multimode fiber (as well as other common types) and works with a range of cable formats including 250 µm, 900 µm, 2.0 mm, and 3.0 mm distribution and zip-cord styles. The connector features a pre-polished UPC end face, a built-in verification window for visual confirmation of correct fiber placement, and a self-centering alignment groove that helps ensure a stable connection, making it an excellent option for field installations, repairs, or network upgrades.

Key features:
• SC type connectors • Pre-polished for UPC (standard) & APC (angled) connections • Compatible with single mode (OS1 & OS2) & multimode (OM2, OM3 & OM4) cable • Compatible with 250μm, 900μm, 2.0mm & 3.0mm, including distribution and zipcord formats • No proprietary tools required • No epoxy, crimping or polishing required • Built-in verification window showing proper termination • Self-centering alignment groove for easy & reliable insertion of the fiber optic strand • Built-in button for one click termination & locking jig release • Average termination time around two minutes • Re-usable (five or less termination cycles recommended)
