FANVIL VIK-01 VIDEO INTERCOM KIT I60 AND I504W

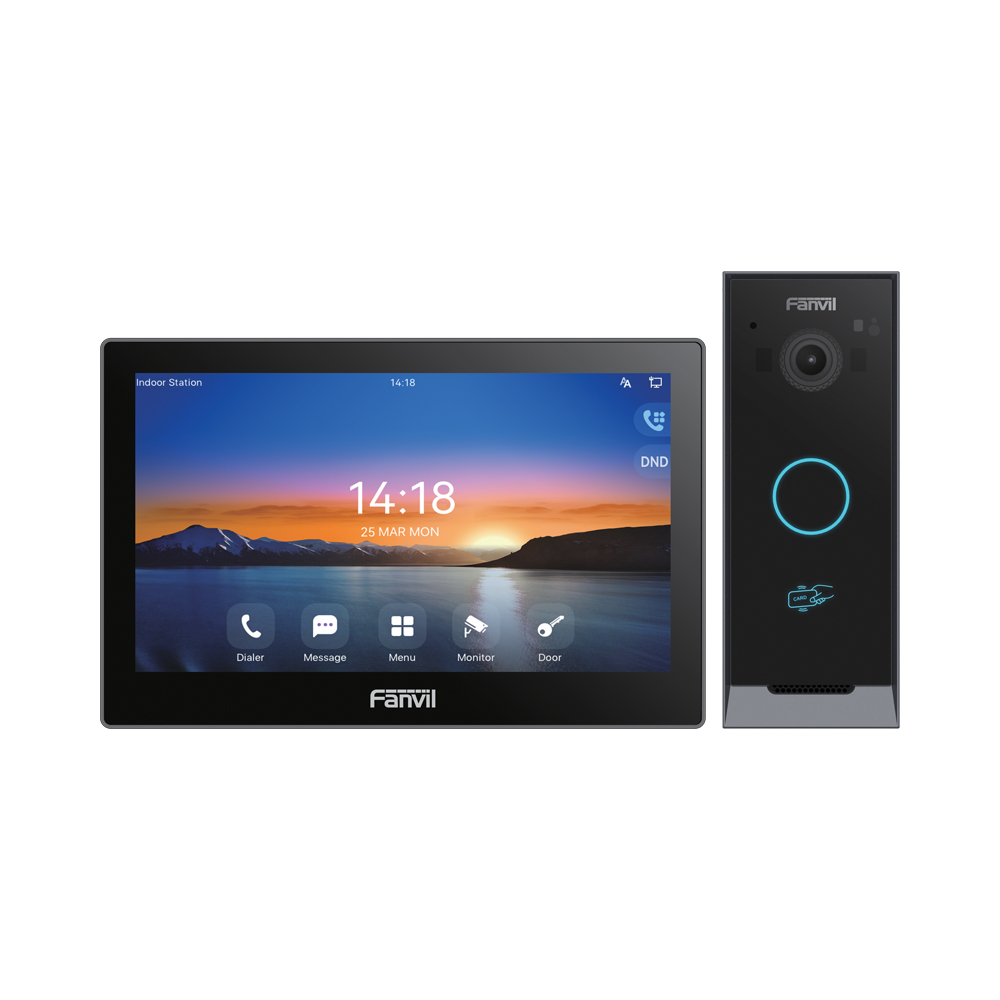

Fanvil VIK-01 Intercom Kit – 7″ Colour Touch Screen Indoor Station, 2W Speaker and 2MP Video Door Phone – Dual-Band Wireless Single-Family Smart Key: Instant Access The Fanvil VIK-01 Video Intercom Kit integrates the i504W SIP Indoor Station, i60 Video Door Phone and Fanvil Link App. Users can make HD video calls and remotely unlock doors via the indoor unit or Fanvil Link App, with multiple unlocking options and 2.4GHz/5.0GHz Wi-Fi support. Achieve plug and play deployment with simple power and network connections.

Key features:
• Plug and play, quickly deployment • Flexible door access methods • Monitor door phone camera footage on both mobile and indoor station • Remote door opening anytime, anywhere • Supports one-touch calling • CCTV integration FANVIL I504W SPECIFICATIONS • Screen: 7″ 1024×600 Colour Capacitive Touch Screen • Body: ABS • Speaker: 2W • Wi-Fi: 2.4GHz/5.0GHz • Interface: 8× Alarm Input, 1× Short -Circuit Output, 1× Doorbell input, 1× RS485 (Reserved) • Network: 10/100Mbps Adaptive • Power Supply: DC12V 1A PoE: 3.65~6.64W • Working Temperature: -10~50°C • Storage Temperature: -40~80°C • Working Humidity: 10~90% • Size (L × W × H): 177.38 × 113.99 × 22.5mm • Installation: Wall-Mounted FUNCTIONAL CAPABILITIES • Supported Protocols: SIP 2.0 over UDP/TCP/TLS • Audio: Narrowband Codec: G.711A/U, G.723.1, G.726-16 / 24 / 32 /40, G.729AB, iLBC Broadband Codec: G.722, OPUS Full-Duplex Hands-Free Calling, Supports Acoustic Echo Cancellation (AEC) • Video: Hardware Decoding: H.264, H.265 (Optional) Video Call Resolutions: QVGA / CIF / VGA / 4CIF / 720p / 1080p • DTMF: In-Band Out-of-Band DTMF (RFC2833) SIP Info • Do Not Disturb (DND): Supported and the Time Can Be User-Defined • Supports: Viewing Video from Third-Party IP Cameras Customising Incoming Call Ringtones Remote Door Unlocking Sending/Receiving Messages FANVIL I60 SPECIFICATIONS • Keyboard: 1× Speed-Dial Button • Body: ABS and PC • Colours: Panel: Black Housing: Gunmetal • Sensor: 1/2.9″, CMOS • Camera: 2MP, Supports Infrared • Viewing Angle: 140° (FOV), 100° (Horizontal), 57° (Vertical) • Output Video: H.264 (Baseline, Main Profile) • Light Sensitivity: 0.1 Lux • Card Storage: 1,0000 • Power Consumption: PoE: 1.63~6.93W Adapter: 1.51~6.16W • Power Supply: DC12V 1A PoE 802.3af Class 3 • Working Temperature: -40~70°C • Storage Temperature: -40~70°C • Dimensions: 50 × 130 × 30mm • IP Level: IP65 • Installation: Wall-Mounted Rain Cover FUNCTIONAL CAPABILITIES • Supported: SIP 2.0 over UDP/TCP/TLS • Lock Opening: IC Card By DTMF Code Remote Door Opening BLE • Interface: Wiegand Input / Output Short-Circuit Input / Output • Supported Wiegand: 26, 34bit • Supported ONVIF: Profile S • Supported Standards: IC Card DTMF Indoor Switch BLE Cards 13.56 MHz • Talking Mode: Full-Duplex (High-Definition Audio) • Supports: Built-In Relay Motion Detection Tamper Alarm TF Card Open API
