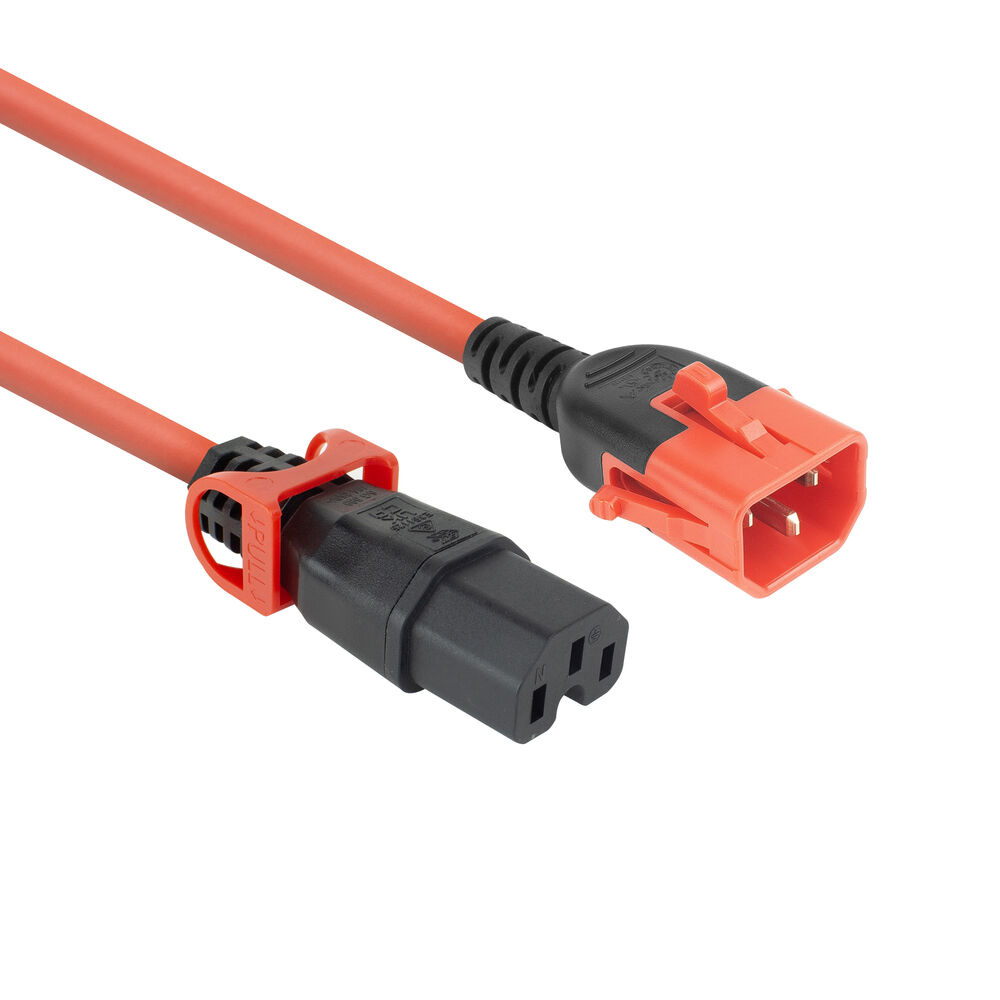

IEC LOCK PC3877 3M C14 DUAL-LOCK TO C15 LOCKING POWER CABLE – RED

IEC Lock PC3877 3m C14 Dual-Lock to C15 Locking Power Cable – Red Secure Power Connections for Critical Equipment. The IEC Lock PC3877 is a 3m locking power cable designed to help prevent accidental disconnection in data centres, server rooms, broadcast systems, medical environments and other critical installations. Its C14 Dual-Lock connector secures into compatible C13 outlets, while the C15 IEC Lock connector helps maintain a secure connection to compatible C16 equipment inlets. Rated at 10A/250V, the cable uses 3-core 1.00mm² H05RN-F construction with high-purity bare copper conductors and a durable red rubber jacket. A lock retention force greater than 100N helps protect connected equipment against cables being pulled loose or disconnected through vibration.

Key features:
• Dual Locking Power Connection – Locking connectors at both ends help protect against accidental cable disconnection • C14 Dual-Lock Connector – Secures the plug into compatible C13 outlets • C15 IEC Lock Connector – Locks securely into compatible C16 equipment inlets • Greater Connection Security – Helps prevent cables from being pulled or vibrated out of connected equipment • Greater Than 100N Lock Retention – Provides a secure mechanical connection for critical installations • 10A Power Rating – Suitable for compatible servers, switches, UPS systems and network equipment • 3m Cable Length – Provides extended reach within racks and equipment installations • H05RN-F Rubber Cable – Provides durable and flexible performance for demanding installations • Red Cable Jacket – Supports quick identification of individual power feeds and circuits • Quick Release Mechanisms – Dedicated release controls allow intentional cable removal • Class I Protection – Includes a protective earth conductor for compatible earthed equipment SPECIFICATIONS • Connector A: 10A C14 Dual-Lock Male Connector • Connector B: 10A C15 IEC Lock Female Connector • Complete Power Cable Rating: 10A/250V • Cable Length: 3m ±30mm • Cable Length Between Connector Bodies: 2857mm ±30mm • Cable Type: 3-Core H05RN-F • Conductor Cross-Sectional Area: 1.00mm² • Number of Conductors: 3 • Number of Strands: 32 • Conductor Material: 99.97% Bare Copper • Core Colours: Brown, Blue and Green/Yellow • Cable Jacket Material: Rubber • Insulation Material: Rubber • Cable Colour: Red, RAL3020 • Overall Cable Diameter: 7.3mm • Jacket Wall Thickness: 0.8mm • Insulation Wall Thickness: 0.6mm • Minimum Bend Radius: 36.5mm • Rated Temperature: -15~60°C • Nominal Resistance: 19.5Ω/km • Lock Retention: Greater Than 100N • Protection Class: Class I • Connector Colours: Black and Red MATERIALS • C14 Housing: PBT • C14 Over-Moulding Cover: PVC • C14 Pins: Brass Strip • C15 Over-Moulding Cover: PVC and TPE • C15 Terminal Housing: Nylon PA66 • C15 Contact Material: Copper Alloy • C15 Handle: Fire-Retardant PA66 • C15 Locking Blade: Hardened Steel • C15 Spring: Spring Steel STANDARDS AND COMPLIANCE • IEC / BS EN 60320-1:2015 • IEC / BS EN 60320-3:2014 • BS EN 50525-2-21 • UK SI 2016 No. 1101 Electrical Equipment Safety Regulations • UK SI 2013 No. 3113 Packaging Waste Regulations • EU 2014/35 Electrical Equipment Safety Regulations • EU 94/62/EC Packaging and Packaging Waste • UKCA, CE, ENEC and VDE Markings • Manufactured Under ISO 9001:2015 Process Controls
