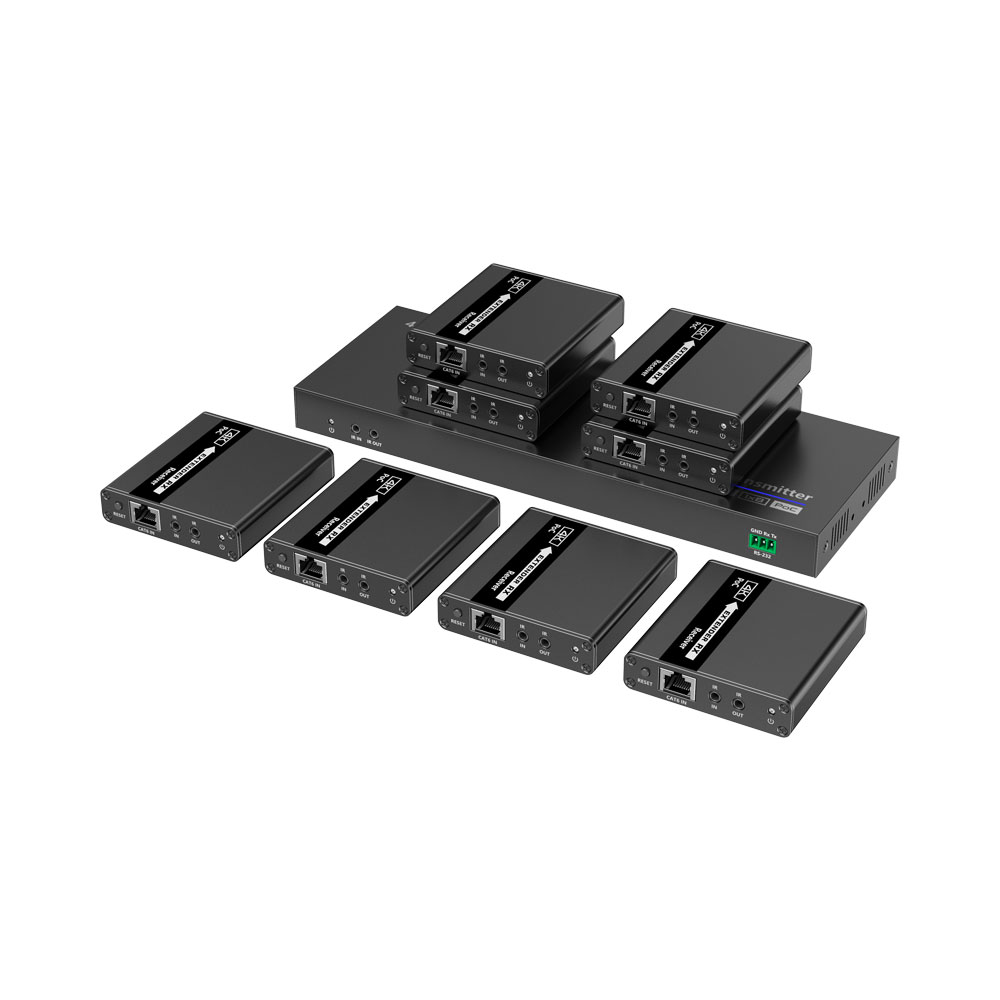

LENKENG 1X8 HDMI EXTENDER 4K@30Hz 40M -1080P@70M
R12 016.17
incl. VAT
LENKENG LKV728P 1×8 40m 4K @30Hz HDMI over CAT6 Extender Splitter Multiply your reach without losing quality.
Secure Payments with Payfast
48 in stock
48 in stock
Additional information
| Weight | 2.2 kg |
|---|---|
| Dimensions | 25.82 × 19.9 × 12.56 cm |
| Brand |
Only logged in customers who have purchased this product may leave a review.
LENKENG LKV728P 1×8 40m 4K @30Hz HDMI over CAT6 Extender Splitter Multiply your reach without losing quality. The LENKENG LKV728P 40m 4K @30Hz Extender Splitter turns one HDMI source into eight crystal-clear displays over a single CAT6/6A/7 cable – up to 40m at 4K @30Hz (or up to 70m at Full HD). With zero-latency transmission, HDR10 support, HDMI loop-out, bi-directional IR passthrough and RS232 control, it’s engineered for seamless installations in classrooms, showrooms, boardrooms or multi-screen AV displays. Easy plug-and-play setup with power-over-cable (PoC) means just one power supply at the transmitter – cleaner, smarter, faster.
Key features:
• Zero-Latency Transmission • Supports up to 4K @30Hz Resolution, Downward Compatible • Supports HDR10 • Distribute 1× HDMI Source to 4× HDMI Displays • Supports CAT6/6A/7 Network Cable, Which Can Transmit 1080p Signal up to 70m and 4K @30Hz Signal up to 40m • Supports Power-over-Cable (PoC), Only the Transmitter Needs to be Powered • The Transmitter Supports HDMI Loop-Out • Supports Bi-Directional IR Passthrough (20~60KHz) • Supports RS232 Command Control • Surge Protection, Lightning Protection and ESD Protection SPECIFICATIONS • Compatibility: HDMI 1.4, HDCP 1.4 • Supported Resolutions: 800×600, 1024×768, 1280×720, 1280×960, 1366×768, 1440×900, 1680×1050, 1920×1080, 480i @60Hz, 480p @60Hz, 576i @50Hz, 576p @50Hz, 720p @50/60Hz, 1080i @50/60Hz, 1080p @24/25/30/50/60Hz, 4K @24/25/30Hz • Audio Formats Supported: PCM, LPCM, DTS‑HD, DTS‑Audio • Transmission Distance over CAT6/6A/7: up to 70m for 1080p @60Hz, up to 40m for 4K @30Hz • IR Passback: Bi‑Directional IR Passback (20–60kHz) • RS232 Control: 3‑Pin (GND‑RxD‑TxD), Default Baud Rate 9600 • Power Supply: TX DC 12V 5A, RX DC 5V 1A (RX Optional) • Power Consumption: TX <34W, RX <2.5W • Housing Material: Metal • Colour: Black • Weight: TX 615g, RX 160g (per Receiver) • Dimensions: Transmitter: 272 × 96.5 × 23mm, Receiver: 75 × 80 × 18mm • Protection: ESD Protection (1a Contact Discharge Level2 ±4kV, 1b Air Discharge Level3 ±8kV), Lightning Protection, Surge Protection
