LENKENG 70M HDMI 2.0 EXT OVER CAT6 – 3.5MM AUDIO

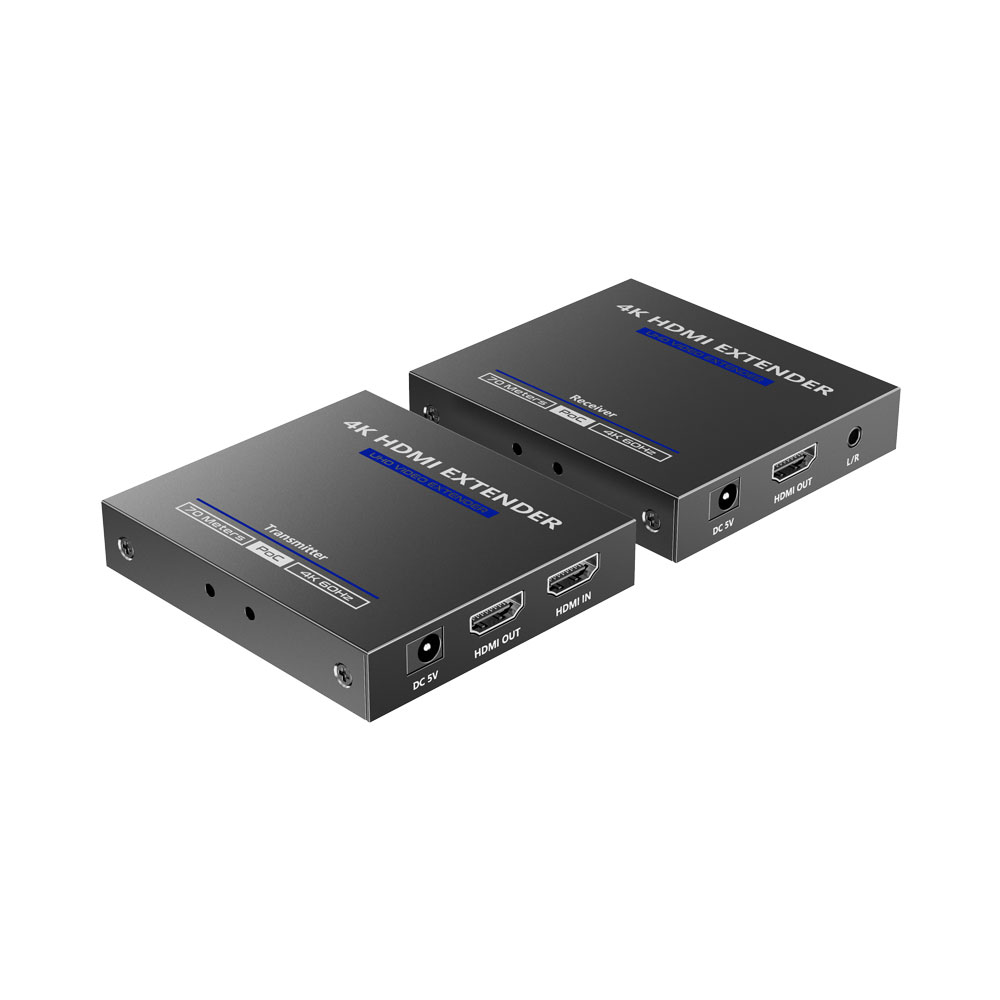

LENKENG LKV565P Ultra-Slim 70m 4K HDMI HDR Point-to-Point PoC Extender Over CAT6/6A/7 Cable with ipcolor IMAGE Extend Smarter, Stream Stronger. Push crystal-clear 4K @60 Hz HDR video up to 70m over a single CAT6/6A/7 cable – with zero latency and visually lossless quality thanks to advanced ipcolor transmission. This ultra-slim, point-to-point kit supports HDMI loop-out, IR passback and 3.5mm audio, making setup clean and intuitive. Powered over cable (PoC) for a neater install, it’s perfect for home theatre setups, security monitoring, corporate training or broadcast environments. Reliable, sleek and plug-and-play – long-range 4K just got easier.

Key features:
• One to One • Zero Latency • Visually Lossless • Distance up to 70m – 4K @60Hz with PoC • HDMI Loop-Out • IR Passback Function • 3.5mm L/R Audio SPECIFICATIONS Video • Input Interface: 1× HDMI Type-A Female (Transmitter) / 1× RJ45 Female (Receiver) • Output Interface: 1× HDMI Type-A Female and 1× RJ45 Female (Transmitter) / 1× HDMI Type-A Female (Receiver) • HDMI Length: <5m • Maximum Transfer Rate: 18Gbps • Maximum Transmission Bandwidth: 600MHz • EDID Passthrough: Yes • Compatibility: HDMI 2.0 (Deep Colour, 4K, HDR, YUV4:4:4), HDCP 2.2 • Resolutions: 720p @50/60Hz, 1080i @50/60Hz, 1080p @50/60Hz, 3840×2160 @24/25/30/50/60Hz, 4096×2160 @24/25Hz, 1280×960, 1280×800, 280×768, 1680×1050, 1360×768, 1366×768, 1600×900, 1024×768, 800×600 Transmission Distance: CAT6/6A/7 ≤70m Audio • Input Interface: 1× HDMI Type-A Female (Transmitter) / N/A (Receiver) • Output Interface: 1× HDMI Type-A Female (Transmitter) / 1× HDMI Type-A Female and 1× 3.5mm L/R Female (Receiver) • Audio Formats: LPCM / DTS-HD / DTS-Audio / Dolby Digital 5.1CH / Dolby Atmos Command Signal • IR Interface: 1× 3.5mm IR OUT Female (Transmitter) / 1× 3.5mm IR IN Female (Receiver) • Receiving Range: ≤5m • Infrared Frequency: 20~60kHz Power • Power Supply: DC 5V 2A • Power Consumption: <4W Operating Environment • Working Temperature: –20~60°C • Storage Temperature: –30~70°C • Humidity: 0~90% RH (No Condensation) Physical Properties • Housing: Metal • Weight: 140g • Colour: Black • Dimensions (L × W × H): 85 × 75.5 × 16.5mm Protection • ESD Protection: Contact Discharge Level 2 (±4kV), Air Discharge Level 3 (±8kV), IEC61000‑4‑2 Standard • Lightning and Surge Protection Certifications • FCC / CE / RoHS 2.0
