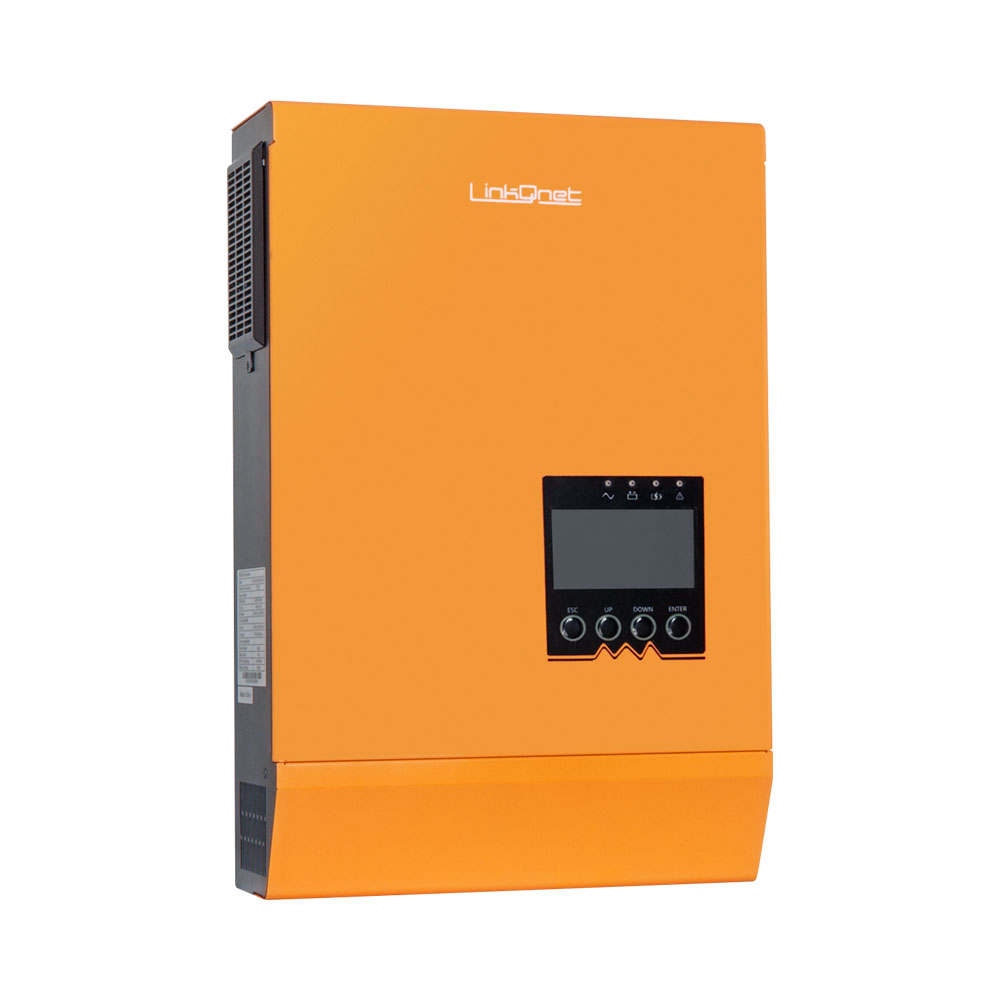

LINKQNET 3KVA 24V INVERTER WITH 1500W 145V MPPT

LinkQnet 3024TG 3kVA 24V Pure Sinewave Off-Grid Hybrid Inverter True Off-Grid Solution: This LinkQnet 3024TG 24V DC to 230V AC Inverter solution includes a 60A AC-DC charger and 60A DC-DC medium voltage MPPT 1500W Solar charger for a combined total charging capability of 120A and 3000W DC-AC pure sinewave inverter in one compact solution. This greatly simplifies installation and uses minimal space. Multiple Deployment Options: With no PV solar panels attached while connected to the utility power grid and battery storage, the unit can function as a power backup source during load shedding or unforeseen utility power failures. The unit can also operate as a hybrid solar storage solution connected to the utility power grid or a generator to assist with charging the batteries when solar levels are low or as an off-grid pure solar storage solution with only the solar panels connected to charge the batteries. The internal electronics and AC relay arrangement make it physically impossible for the inverter to feed power towards the grid or generator. Solid and Reliable: The LinkQnet range of multi-functional inverters have been designed to tolerate African power grid and environmental conditions and are intended to be installed by a qualified electrician or certified solar solution provider in accordance with SANS 10142-1. If you are not qualified then Linkqage will always direct you to one of our many registered installers.

Key features:
• Pure sinewave inverter at full 3000W RMS power • Built-in MPPT medium voltage solar charge controller (145V DC MAX) • Configurable input voltage range for home appliances or UPS transfer ( 80V DC) • Compatible with mains or generator power • Auto restart when AC recovers or PV power is available • Overload / over temperature / short circuit protection • Smart battery charger design for optimised battery performance • Cold start function SPECIFICATIONS INVERTER • Peak Power: 3000VA (6000VA surge for max 10 seconds) • RMS Power: 3000W (PF=1) • AC Voltage: 230V • AC Waveform: Pure Sinewave • Efficiency (peak): 0.935 • DC Voltage: 24V (Can operate without batteries if MPPT voltage > 80V DC) • Transfer Tolerance: 170V to 280V (UPS mode) / 90V to 280V (Appliance mode) • Transfer Time: 10ms (UPS mode) / 20ms (Appliance mode) CHARGING • AC Charge: 60A (Adjustable) • SCC Type: MPPT • SCC Voltage: 30V – 115V DC • Max PV OC Voltage: 145V DC • Max SCC Power: 1500W • SCC Charge: 60A (Adjustable) • Max Combined Charge: 120A (Adjustable) • SCC Efficiency: 0.98 • Standby Power Consumption: 2W OPTIONS • Parallel Capable: No • Communication: RS-232 / USB-A • Battery Types: Flooded, AGM, GEL, Li-Ion, Super capacitor, Custom • BMS Support: No – Third party solution can be used • Warranty: Two years – Conditional PHYSICAL • Weight: 8.20kg • Dimensions (D × W × H): 110 × 300mm × 440mm • Operating Humidity: 5% to 95% Relative humidity (Non-condensing) • Operating Temperature: 0°C to 40°C (Room temperature) INSTALLATION • Installation Environment: Indoor environment with no exposure to direct external air in coastal regions • Input Isolator: 25A–63A dual pole (To be purchased) • Input Circuit Breaker: 20A normal curve (To be purchased) • Output Circuit Breaker: 15A normal curve (To be purchased) • Bypass Switch: 25A–63A dual pole, double throw with centre off (To be purchased) • Output Isolator: 25A–63A dual pole (To be purchased) • Earth Leakage Relay: 40A–63A with 30mA break leakage for plug circuits (To be purchased) • Installation Competency: Not consumer installable. Needs to be wired into building electrical system. Requires qualified electrician with CoC for municipal and insurance compliance.
