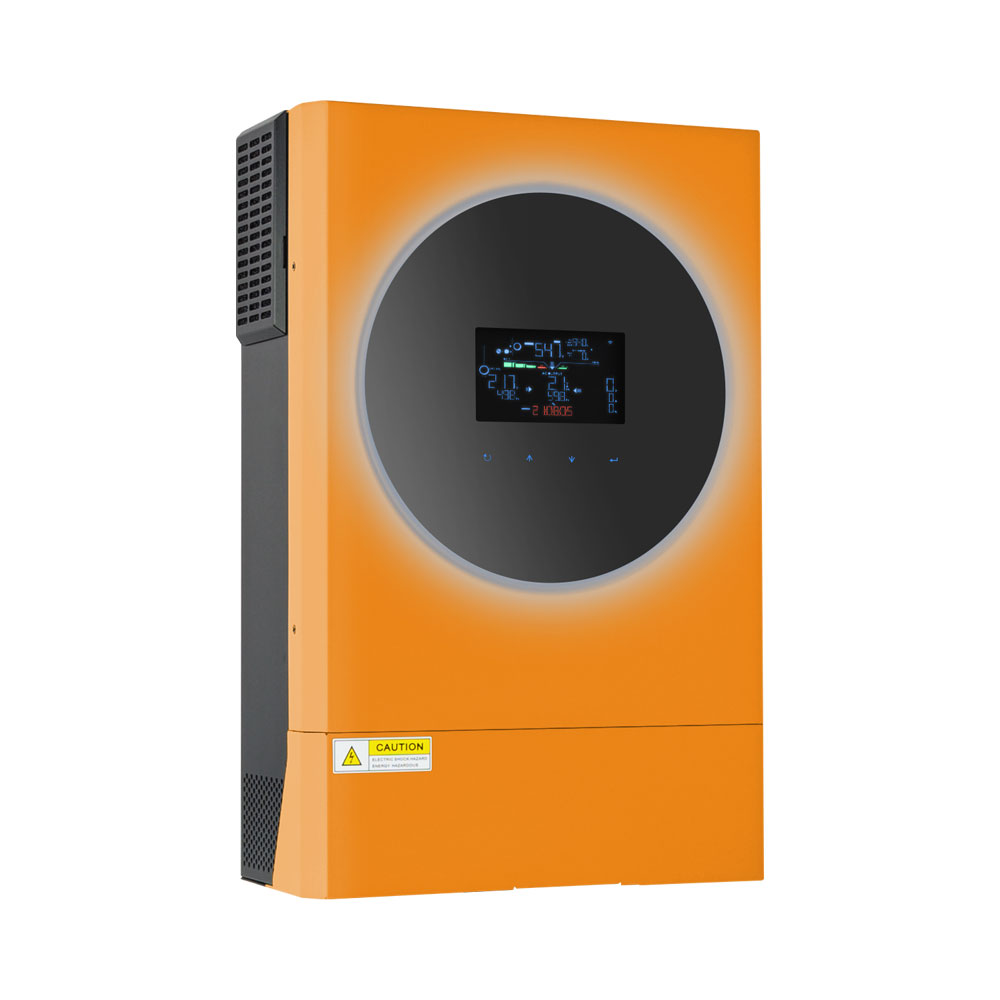

LINKQNET 5.6K PF1 48VDC INVERTER 6000W HV MPPT ..

LinkQnet 5.6kW PF1 48VDC Inverter 6000W HV MPPT With 120A MPPT and 120A Mains Charger This inverter delivers a peak power of 5600VA and an RMS power of 5600W, with an AC output voltage of 230V and a DC input voltage of 48V (battery required). It features a transfer time of 10ms/20ms and an AC charging current of 120A. The built-in MPPT solar charge controller (SCC) supports an ideal input voltage range of 120V to 430V DC, a maximum PV open-circuit voltage of 450V DC, and a maximum SCC power of 6000W, with a charging current of up to 120A. The combined maximum charging current is 120A. This unit supports parallel operation for up to 9 units, with built-in parallel capability. Communication options include USB, RS-232, and RS-485 (BMS). While direct Bluetooth is not supported, Wi-Fi is included, and 3G and SNMP options are available. The inverter supports various battery types, including Flooded, AGM, GEL, Li-Ion, and Custom types, and is compatible with BMS systems.

Key features:
• Peak Power: 5600VA • RMS Power: 5600W • AC Voltage: 230V • DC Voltage: 48V (Battery Required) • Transfer Time: 10ms/20ms • AC Charge: 120A • SCC Type: MPPT • Ideal SCC Voltage: 120V – 430V DC • Max PV OC Voltage: 450V DC • Max SCC Power: 6000W • SCC Charge: 120A Max • Combined Charge: 120A • Parallel Capable: Yes – Parallel Built-In for Up to 9 Units • Communication: USB / RS-232 / RS485 (BMS) • Direct Bluetooth: No • Wi-Fi Option: Yes (Installed) • 3G Option: Yes • SNMP Option: Yes • Battery Types: Flooded, AGM, GEL, Li-Ion, Custom • BMS Support: Yes
