LINKQNET 5KVA D/OUTP 48V INV, 6KW 500V MPPT WiFi

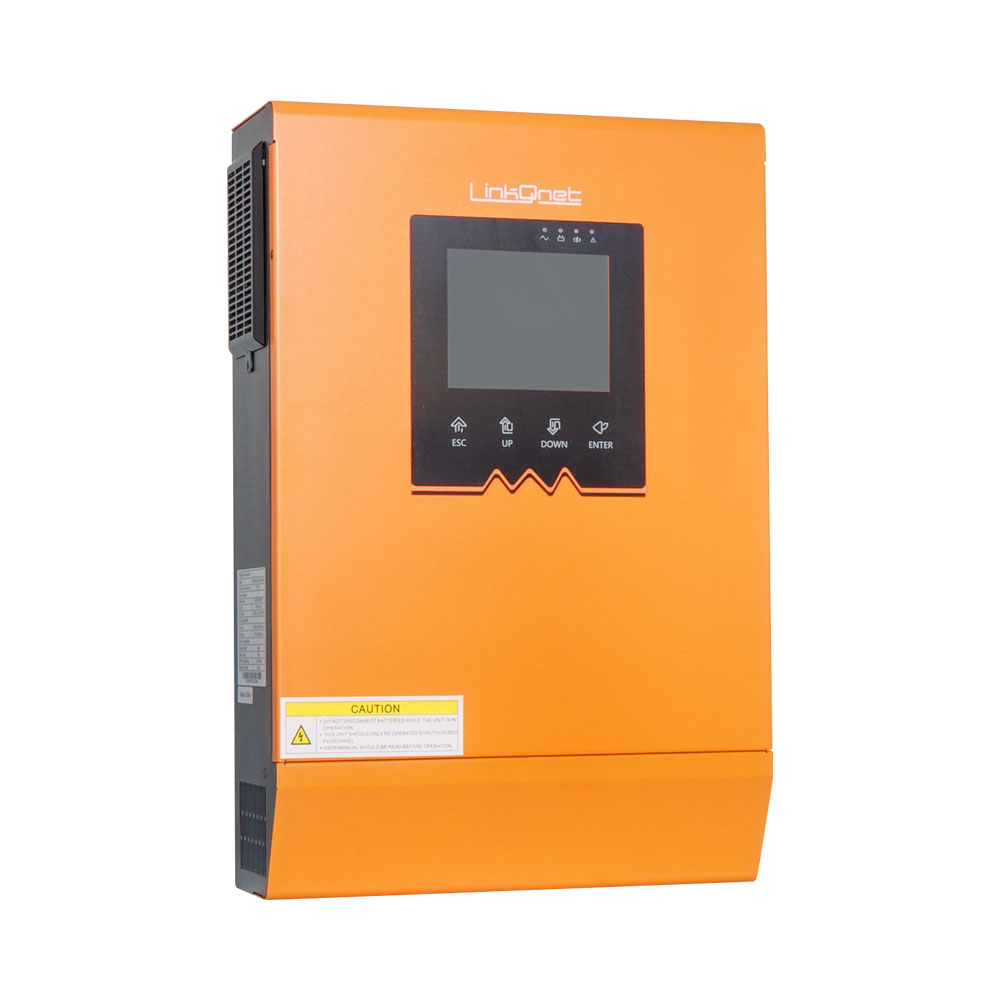

LinkQnet 5048TG2 Premium 5kW Off-Grid On-Grid Backup MPPT Solar Inverter Solid and Reliable: The LinkQnet range of multi-functional inverters have been designed to tolerate African power grid and environmental conditions and are intended to be installed by a qualified electrician or certified solar solution provider in accordance with SANS 10142-1. If you are not qualified then Linkqage will always direct you to one of our many registered installers.

Key features:
• Parallel-Able Pure Sinewave Inverter with Unity Power Factor • Built in 6000W MPPT High Voltage Solar Charge Controller (500V DC MAX) • Configurable Input Voltage Range for Home Appliances or UPS Transfer ( 130V DC – Single Unit Only) • Compatible With Mains or Generator Power • Auto Restart When AC Recovers or PV Power is Available • Overload / Over Temperature / Short Circuit Protection, Quieter Variable Speed Fans • Dual Programmable AC Outlets (Allows You to Split Essential Loads and Critical Loads) • Cold Start Function, Wi-Fi Monitoring Included (Wi-Fi Coverage is Required at Install Site) SPECIFICATIONS INVERTER • Peak Power: 5000VA (10000VA surge for max 10 seconds) • RMS Power: 5000W (PF=1) • AC Voltage: 230V (220V–240V adjustable) • AC Waveform: Pure sine wave (50Hz / 60Hz auto sensing) • Efficiency (Peak): >94% • DC Voltage: 48V (Single unit can operate without batteries if MPPT voltage > 130V DC) • Transfer Tolerance: 170V to 280V (UPS mode) / 90V to 280V (Appliance mode) • Transfer Time: 10ms (UPS mode) / 20ms (Appliance mode) CHARGING • AC Charge: 80A (adjustable) • SCC Type: MPPT • SCC Voltage: 120V–430V DC • Max PV OC Voltage: 500V DC • Max SCC Power: 6000W • SCC Charge: 80A (adjustable) • Max Combined Charge: 80A (adjustable) • SCC Efficiency: 98% • Standby Power Consumption: 2W (inverter can be configured to shut down if no load is present) OPTIONS • Parallel Capable: up to nine units in 1PH or three units in 3PH – parallel kit included • Communication: USB-B, Wi-Fi module included • Battery Types: Flooded, AGM, GEL, Li-Ion, Super capacitor, Custom • BMS Support: Yes – RS485/CANbus port for compatible battery packs • Wi-Fi Support: Wi-Fi cloud data logging dongle included (2.4GHz, WPA2 Wi-Fi is required) • Relay Support: Relay port (NC/NO) for remote control of a generator start or other devices • Warranty: Two years – conditional PHYSICAL • Weight: 8.45kg • Dimensions: 110mm (D) × 300mm (W) × 440mm (H) • Operating Humidity: 5% to 95% relative humidity (non-condensing) • Operating Temperature: 0°C to 50°C (room temperature) INSTALLATION • Installation Environment: Indoor environment with no exposure to direct external air in coastal regions • Input Isolator and Surge Protection Device: 40A–63A dual pole (to be purchased), surge protection device recommended • Input Circuit Breaker: 40A normal curve (to be purchased) • Output Circuit Breaker: 25A normal curve (to be purchased) • Bypass Switch: 40A–63A dual pole, double throw with centre off (to be purchased) • Output Isolator: 25A–63A dual pole (to be purchased) • Earth Leakage Relay: 63A with 30mA break leakage for plug circuits (to be purchased) • PV Configuration and Surge Protection Device: 2 × 20A 600V solar fuse / isolator with surge protection device required if PV panels are installed; typical PV layout is 9 × 380W to 600W panels in series
