LINKQNET SCFC-3420 15M USB3.2 GEN 2×1 USB TYPE-C ACTIVE OPTICAL CABLE WITH DISPLAYPORT ALT MODE AND POWER DELIVERY

LinkQnet SCFC-3420 15m USB3.2 Gen 2×1 USB Type-C Active Optical Cable with DisplayPort Alt Mode and Power Delivery Long-distance USB, Video and Power Through One Unidirectional Cable. The LinkQnet SCFC-3420 is a unidirectional 15m USB Type-C active optical cable designed to carry high-speed data, DisplayPort Alt Mode video and USB Power Delivery over an extended distance. Its adaptive lane allocation supports either four-lane DisplayPort 2.1 with USB2.0 or two-lane DisplayPort 1.4 with USB3.2 at up to 10Gbps, allowing compatible devices to select the appropriate operating mode. In four-lane mode, the cable supports up to 8K @30Hz without DSC or 8K @60Hz HDR with DSC; two-lane mode supports up to 4K @60Hz without DSC or 4K @120Hz HDR with DSC. The optical design helps resist EMI and RFI, while 40W Power Delivery, Plug-and-Play operation and clearly labelled Source and Display connectors simplify installation.

Key features:

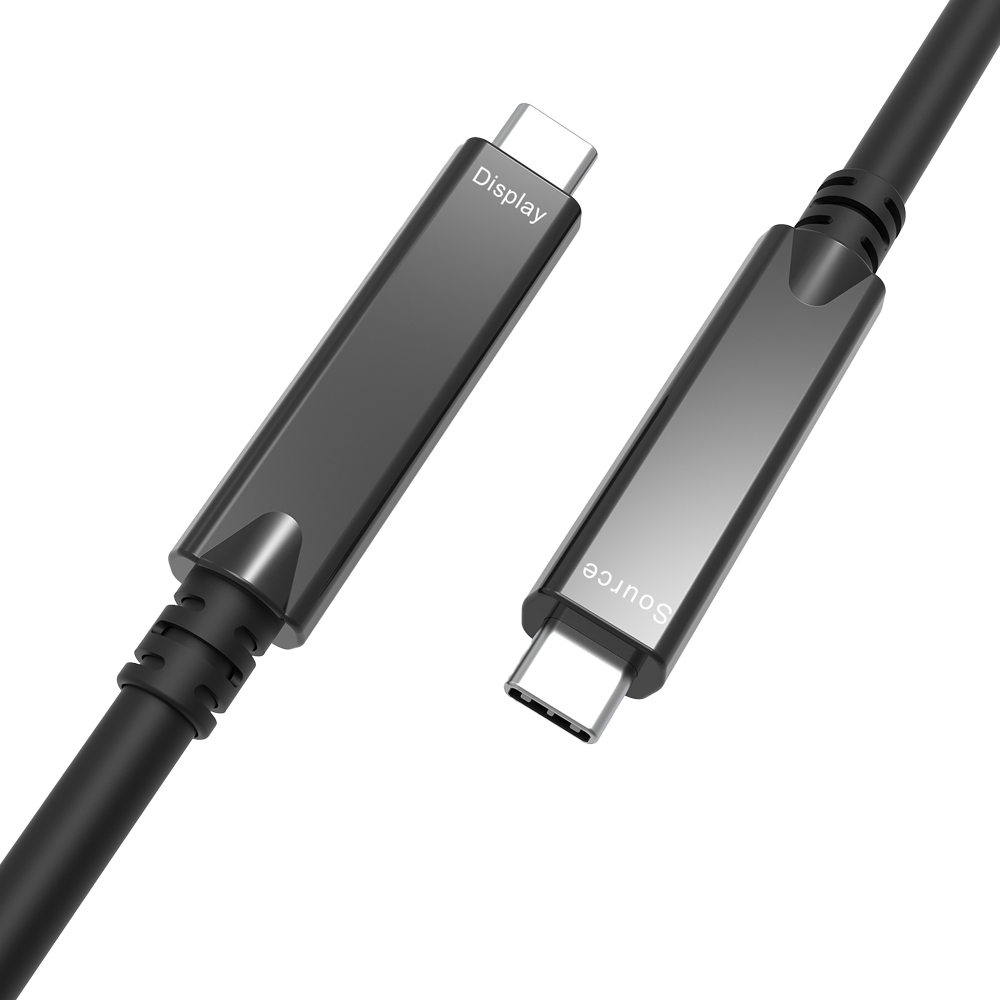

• 10Gbps USB Performance – Supports USB3.2 Gen 2×1 data transfer over a 15m connection • Adaptive DisplayPort Modes – Supports four-lane DisplayPort 2.1 with USB2.0 or two-lane DisplayPort 1.4 with USB3.2 • High-Resolution Video – Supports up to 8K @60Hz HDR with DSC or 4K @120Hz HDR with DSC, depending on the operating mode • 40W Power Delivery – Carries up to 40W for charging compatible USB Type-C devices • Active Optical Construction – Uses optical fibre for high-speed signals to support extended distances and resist EMI and RFI • Unidirectional Connection – Clearly labelled Source and Display connectors help ensure correct installation • Reinforced Cable – TPE jacket and Kevlar filler provide flexibility and mechanical support SPECIFICATIONS CONNECTIVITY • Connector 1: USB Type-C Male, Straight, Source • Connector 2: USB Type-C Male, Straight, Display • Unidirectional: Yes • USB Standard: USB3.2 Gen 2×1 • Maximum USB Data Rate: 10Gbps • Connector Housing: Zinc-Alloy VIDEO • Four-Lane Mode: DisplayPort 2.1 with USB2.0 • Four-Lane Video Bandwidth: Up to 40Gbps • Four-Lane Video Resolution: Up to 8K @30Hz without DSC or 8K @60Hz HDR with DSC • Four-Lane USB Data Rate: Up to 480Mbps • Two-Lane Mode: DisplayPort 1.4 with USB3.2 • Two-Lane Video Bandwidth: Up to 16.2Gbps • Two-Lane Video Resolution: Up to 4K @60Hz without DSC or 4K @120Hz HDR with DSC • Two-Lane USB Data Rate: Up to 10Gbps POWER • USB Power Delivery: Up to 40W • Typical Cable Power Consumption: 1.2W at 5V Input CABLE CONSTRUCTION • Optical Fibre Type: Multimode Fibre • Outer Diameter: 6.5mm • Jacket Material: TPE • Cable Reinforcement: Kevlar Filler • Minimum Bend Radius: 20mm Dynamic; 10mm Static • Tensile Strength: 200N Long-Term; 400N Short-Term ENVIRONMENTAL • Operating Temperature: 0~50°C • Storage Temperature: -40~70°C • Relative Humidity: 10~80% RH NOTES • Connect the Source-labelled end to the host device and the Display-labelled end to the receiving device • DisplayPort Alt Mode, Power Delivery and the stated video resolutions require compatible connected equipment • DSC is required for 8K @60Hz HDR and 4K @120Hz HDR • The cable can operate in USB mode through compatible Thunderbolt ports but is not a Thunderbolt cable and does not support the Thunderbolt 40Gbps protocol
