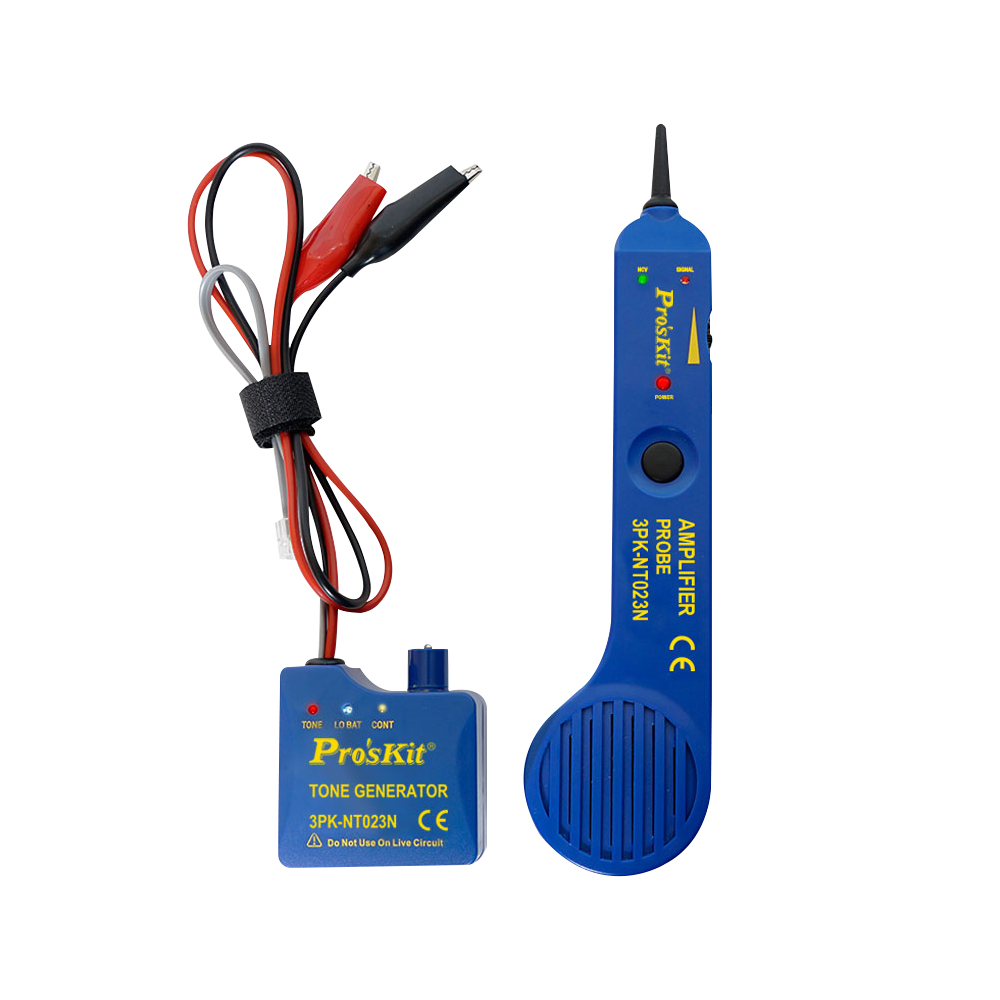

PROSKIT TONE & PROBE KIT

Pro’sKit 3PK-NT023N Tone and Probe Kit The3PK-NT023N Tone & Probe Kit is a rugged cable-tracing tool set designed to help quickly identify wires or cables even in bundles, featuring a tone generator with three selectable outputs and continuity test mode, plus a probe with adjustable volume, visual signal strength indication, and compatibility with standard 9V battery operation

Key features:
• Fast, accurate wire identification • Rugged industrial design • Sends tone to identify wires • Three selectable tone outputs • Two-line polarity indication • Continuity test • Adjustable volume control • Visual signal strength indication • Powerful speaker for noisy environments • Recessed telephone test set connectors SPECIFICATIONS Tone Frequency: 1kHz Max. Testing distance: 1.5km Max. Working Current: ≦20mA Tone Mode: One / Two-note tone Compatible Ccnnectors: De-energized AC wire, telephone/twisted pair wire, all voice Continuity Test: 1 LED (≦10Ω), Coaxial cable & solid/ stranded wire by alligator clips patch cord Max. Signal Voltage: 8Vp-p LED Indicator: 1x Power indicator, 1x Phone line poliarity indicator, 1x Phone line status indicator Voltage Protection: DC 48V Low Battery Indication: 7V (Flashing Power Indication) Battery Type: DC9.0V (NEDA 1604/ 6F22 DC9V×1pc, not include) Dimension (L x W x H): 65 x 58 x 34mm Weight: 62g AMPLIFIER PROBE Frequency: 1kHz Max. working current: ≦70mA Function Selection: 4x Position mode switch (LED. NCV. OFF. SCAN) Earphone Socket: 1x Signal Status Indication: LED & Buzzer NCV Indication: LED (AC 90~1000V) LED Illumination: Yes Power Indication: 1x LED Battery Type: DC9.0V (NEDA 1604/ 6F22 DC9V×1pc, not include) Dimension (L x W x H): 230 x 56 x 25mm Weight: 80g Accessory: 1x Storage bag
