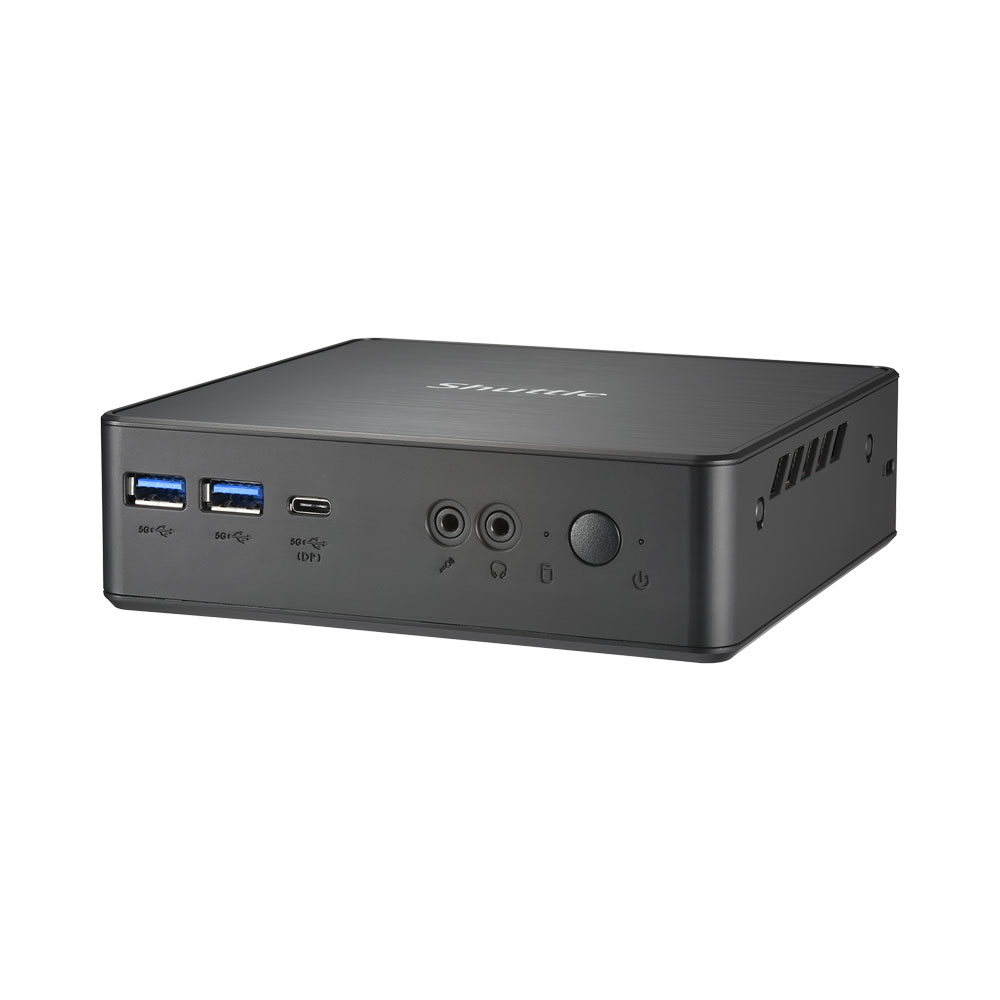

SHUTTLE XPC NANO NC40U PALM-SIZED BAREBONE NUC PC – INTEL I5

Shuttle XPC Nano NC40U Palm-Sized Barebone NUC PC – Intel i5 Multi-Tasking and Superior Performance for Your Business Needs Shuttle’s XPC nano NC40U series houses the performance hybrid architecture of Intel 12th Gen Alder Lake-U platform, capable of multi-tasking and parallelism and with Intel Iris Xe graphics for powering AI workloads, including taking the graphics and multimedia processing to a new level. Despite its 0.85l palm-size design, it can accommodate one 2.5″ hard disk (up to 15mm) and enable additional M.2 SSDs or NVMe SSD installation for flexible storage capacity. Combined with rich I/Os such as USB3.2 Gen2, USB3.2 Gen1 and Intel Gigabit LAN, supporting triple display by the HDMI, DisplayPort and Type-C that increase the functionality to adapt to various business computing to suit digital signage, kiosk, edge computing and video conferencing.

Key features:
• Intel UHD Graphics for 12th Gen Intel Processors • Up to 64GB of DDR4 SO-DIMM memory • 2× NVMe (RAID support), 1× SATA 2.5″ • 1× HDMI 2.0b, 1× DisplayPort 1.4a • 2× M.2-2280, 1× M.2-2230 • Gigabit Ethernet • 2× USB3.2 Gen2 (10Gbps), 4× USB3.2 Gen1 (5Gbps), 1× USB3.2 Gen1 (5Gbps) Type-C • Always-On Jumper • Wall/VESA Mount Included SPECIFICATIONS • Cooling System: Smart Fan • Processor: Intel Celeron 7305 or Intel i3-1215U / i5-1235U / i7-1255U • Graphics: Intel Iris Xe Graphics • Display Resolution Max.: • HDMI: 4096 × 2160 @60Hz • DisplayPort: 4096 × 2160 @60Hz • Display Output: 3× Independent Displays • Video Decoder: WMV9, AVC / H.264, JPEG / MPEG, HEVC / H.265, VP9, AV1 • Memory: 2× DDR4 3200/2933/2666 MHz, Max. 64GB • Storage: 1× 2.5″ HDD/SSD (max. 15 mm) • Expansion Slot: • 2× M.2 2280, M Key • 1× M.2 2230, E Key • Video Output: • HDMI Port: 1× • DisplayPort: 1× • Type-C: 1× • I/O Port: • USB3.2 Gen1/Gen2 (Front): 3× (Includes Type-C) • USB2.0 (Front): No • USB3.2 Gen1/Gen2 (Rear): Yes • USB2.0 (Rear): No • COM Port: No • Line out / Mic in: Yes • Operating System: Windows 10 / 11 64bit, Linux NETWORK • LAN: Intel Gigabit LAN • WLAN: Optional • VESA Mount: Bracket included • Stand: Bracket included • Dimension (L × W × H): 142 × 142 × 42mm • Certification: CB, CE, BSMI, cTUVus, FCC, RCM, RoHS, VCCI • Operating Temperature: 0~50°C • Chassis: Plastic POWER SUPPLY • Power Input: 19V DC • Bundled Adapter: 19V / 3.42A 65W External Adapter
