SUNELL NVR 8CH, 1 BAY, 1X LAN, H.265

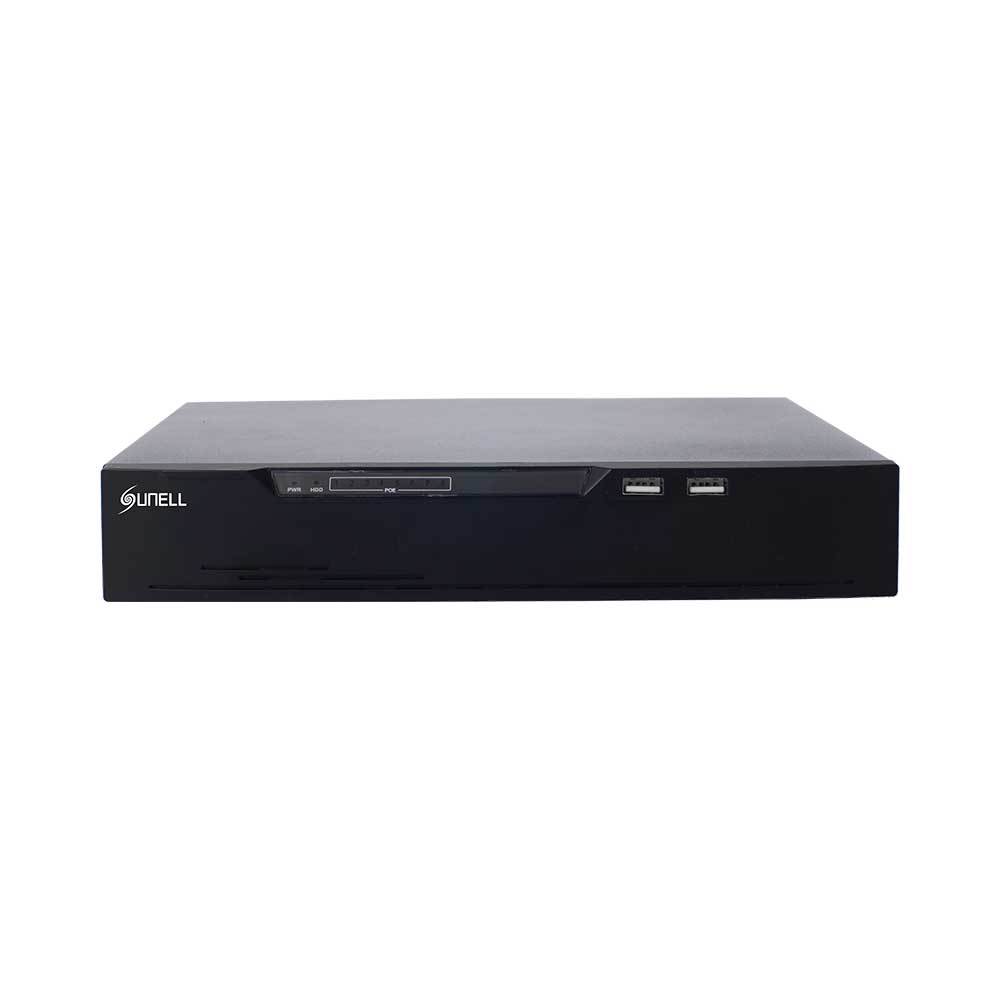

Sunell SN-NVR2508E1-E 8-Channel 1-Bay H.265 NVR The Sunell SN‑NVR2508E1‑E is a solid entry to mid‑level 8‑channel network video recorder, particularly well‑suited for small business or professional surveillance installations that demand high resolution output (4K) and efficient storage via H.265 compression.

Key features:
• Up to 8ch IP cameras access • Easy to use Same Interface of GUI/WEB/Client • 1 SATA hard disk up to 8TB • Simultaneous HDMI&VGA up to 4K output • 2 x 2.0 USB Host • 8ch Alarm In/1ch Alarm Out • 1ch Audio I/O SPECIFICATIONS System • Main Processor: Dual-core embedded processor • Operating System: Embedded LINUX Video and Audio • IP Camera Input: 8 Channel • Audio I/O: 1/1, RCA • Two-way Talk: Yes Display • Interface: 1 HDMI, 1 VGA • Resolution: HDMI: 3840×2160,1920×1080,1440×900, 1280×1024 • Resolution: VGA: 1920×1080, 1280×1024, 1280×720 • Decoding Capacity: 1ch 8MP/4ch 1080P@30fps • Multi-Screen Display: 1/4/9 Recording • Compression: H.265+/ H.265/H.264+/H.264 • Resolution: 8MP/6MP/5MP/4MP/3MP/1080P/720P/ D1 • Record Rate: 80Mbps • Bit Rate: 100Kbps ~ 6Mbps Per Channel • Record Mode: Manual, Schedule (Regular, Continuous), Motion Detection, Video Loss, Camera Tamper, Alarm in • Record Interval: Post-record: 30 ~ 60 sec Video Detection and Alarm • Trigger Events: Recording, Buzzer, Push message, Pop up message • Video Detection: Motion Detection, Video Loss, Camera Tamper • Alarm In/Out: 8/1 Playback and Backup • Sync Playback: 8/4/1 • Search Mode: Time /Date, Alarm, Picture grid, Event • Playback Function: Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Shuffle, Backup Selection, Digital Zoom • Backup Mode: USB Device Network • Network Function: HTTP, HTTPS, TCP/IP, IPv4, UPnP, UDP, RTSP, SMTP, NTP, DNS, DHCP, P2P, IP Filter, DDNS, 802.1X, SNMP • Max. User: Access 9 users • Smart Phone: iPhone, iPad, Android • Interoperability: ONVIF, SDK, CGI Storage • Internal HDD: 1 SATA Ports, up to 8TB for each HDD • eSATA: N/A Interface • Interface: 2 RJ-45 ports (10/100Mbps) • PoE Interface: N/A • PoE Max. Power: N/A • USB: 2 Ports (2× USB2.0) General • Power Supply: DC12V/3A • Power Consumption: <5W (without HDD) • Operating Conditions: -10°C ~ 50°C • Storage Conditions: Less than 90% RH • Certifications: CE/FCC • Dimensions (L × W × H): 255 × 235 × 47.5mm • Net Weight: 0.8kg (No disk)
