TP-LINK 2.4GHZ 300MBPS 12DBI 2X2 OUTDOOR CPE

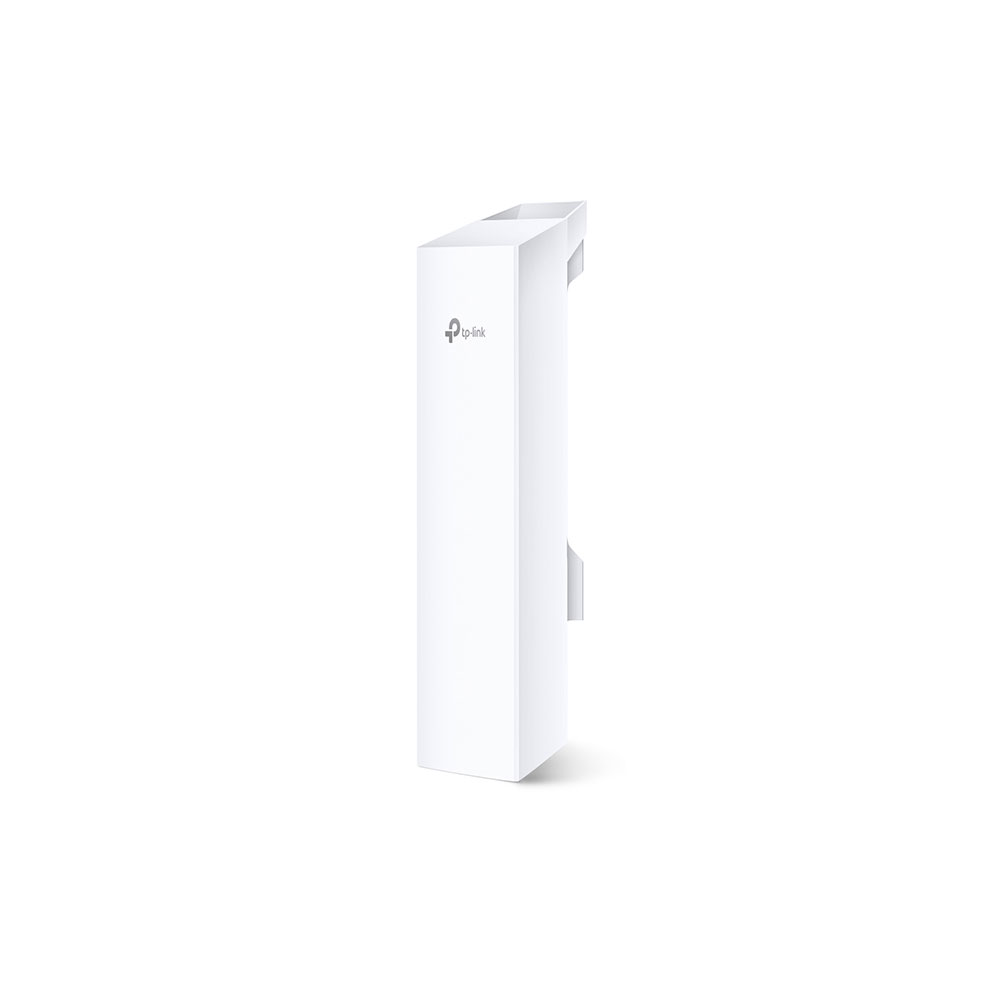

TP-Link CPE220 2.4GHz 300Mbps 12dBi 2ﾗ2 Outdoor CPE ULong-Range Wireless. Rock-Solid Performance. The TP-Link CPE220 delivers stable 2.4GHz connectivity up to 13km+ with its integrated 12dBi directional MIMO antenna and MAXtream TDMA technology – perfect for PTMP and WISP deployments. Rugged, weatherproof and PoE-powered for flexible outdoor installation, it痴 built to perform where it matters most.

Key features:
• Integrated 12dBi 2×2 Dual-Polarised Directional MIMO Antenna – High-gain antenna design for focused, stable long-range connectivity • Adjustable Transmission Power 0~30dBm / 1000mW – Flexible output control to optimise signal strength for different deployment scenarios • Long-Range Wireless Transmission up uo 13km+ – System-level optimisation ensures reliable performance over extended distances • Pharos MAXtream TDMA Technology – Improves throughput, capacity and latency, ideal for high-performance PTMP applications • Centralised Management via Pharos Control – Streamlined configuration, monitoring and maintenance from a single platform • Multiple Operation Modes – Supports AP, Client, AP Router and AP Client Router (WISP) for versatile network deployment • Passive PoE Support up uo 60m – Simplified Power over Ethernet installation with remote reset capability SPECIFICATIONS HARDWARE FEATURES • Processor: Qualcomm Atheros 560MHz CPU (MIPS 74Kc) • Memory: 64MB DDR2 RAM, 8MB Flash • Interface: – 1× 10/100Mbps Shielded Ethernet Port (LAN 0, Passive PoE In) – 1× 10/100Mbps Shielded Ethernet Port (LAN 1, Passive PoE Passthrough) – 1× Grounding Terminal – 1× Reset Button • Power Supply: Passive PoE via LAN 0 (4,5+ Pins; 7,8- Pins), 16~27VDC • Max. Power Consumption: 10.8W • Antenna: Built-In 12dBi 2×2 Dual-Polarised Directional Antenna • Beam Width: 60° (H-Plane) / 30° (E-Plane) • Protection: 15kV ESD Protection, 6kV Lightning Protection • Enclosure: Outdoor ASA Stabilised Plastic, IPX5 Weatherproof • Dimensions: 276 × 79 × 60mm WIRELESS FEATURES • Wireless Standards: IEEE 802.11b/g/n (Pharos MAXtream Disabled) • Proprietary Protocol: TDMA Mode (Pharos MAXtream Enabled) • Frequency: 2.4~2.483GHz • Wireless Speeds: – up to 300Mbps (40MHz) – up to 144.4Mbps (20MHz) – up to 72.2Mbps (10MHz) – up to 36.1Mbps (5MHz) • Transmission Power: up to 30dBm / 1000mW (Adjustable by 1dBm) SOFTWARE FEATURES • Pharos MAXtream TDMA Technology • Selectable Channel Width: 5 / 10 / 20 / 40MHz • Automatic Channel Selection • Transmission Power Control • WDS Enable/Disable • Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP), 64/128/152-bit WEP • Multi-SSID with VLAN Tagging (AP Mode Only) • Wireless MAC Address Filtering • Distance/ACK Timeout Setting MANAGEMENT • Centralised Management via Pharos Control • HTTP/HTTPS Web-Based Management • SNMP v1/v2c • SSH Server • Dynamic DNS • Ping Watchdog • System Logs POE ADAPTER FEATURES • Remote Reset Button • 24V Passive PoE Adapter Included • PoE Deployment: up to 60m • Input: 100~240VAC, 50/60Hz • Output: 24VDC, 1A Max. • Efficiency: >80% ENVIRONMENT • Operating Temperature: -30~70°C • Storage Temperature: -40~70°C • Operating Humidity: 10~90% Non-Condensing • Storage Humidity: 5~95% Non-Condensing
