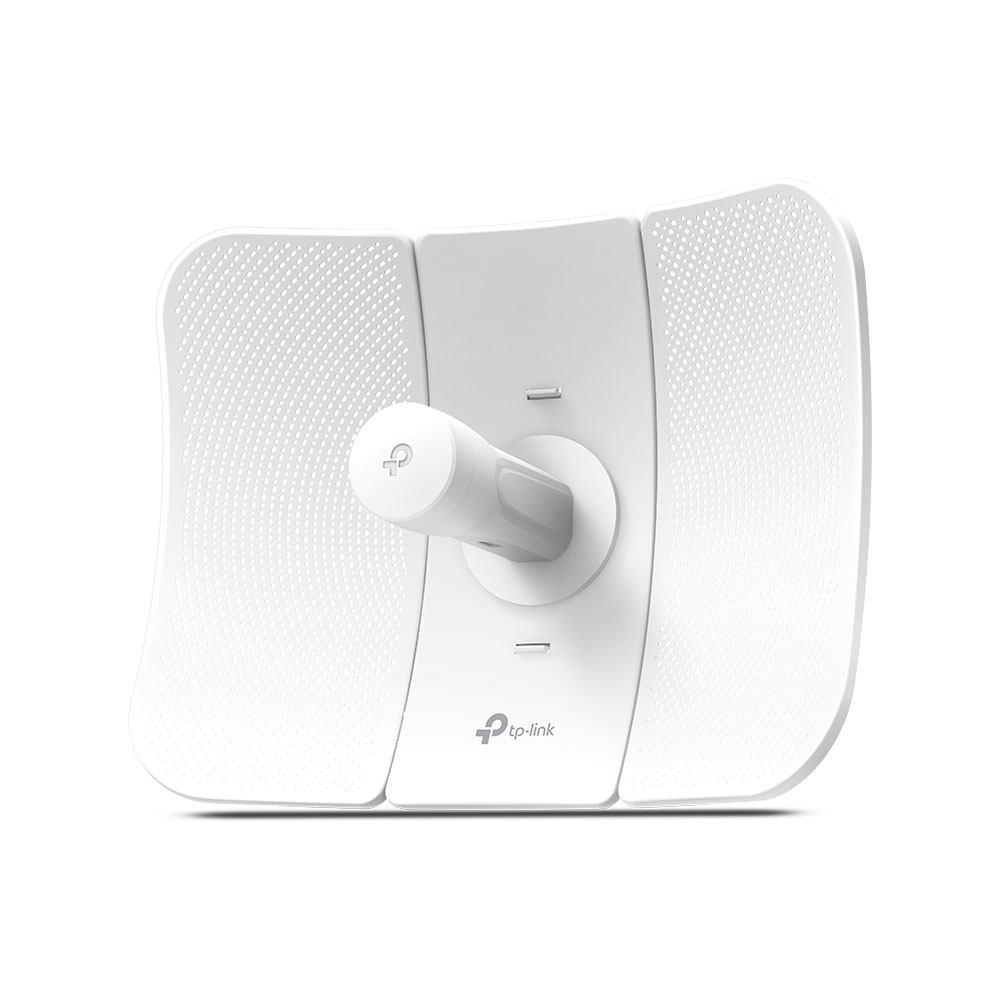

TP-LINK 5GHZ 300MBS OUTDOOR CPE WITH 23DBI ANTENNA

TP-Link CPE610 5GHz 300Mbps 23dBi 2ﾗ2 TDMA Wireless Outdoor CPE Serious range. Precision performance. The TP-Link CPE610 delivers up to 300Mbps on 5.0GHz with a powerful 23dBi directional antenna, purpose-built for long-range point-to-point connectivity. Designed for outdoor deployments, it features IP65 weatherproof protection, advanced TDMA technology for improved throughput and reduced latency, and flexible Passive PoE installation. Built for WISPs, CCTV backhaul and remote site links where reliability and stability are non-negotiable.

Key features:
• High-Speed 5.0GHz Wireless Performance – up to 300Mbps on 5.0GHz for stable long-distance connectivity • 23dBi High-Gain Directional Antenna – Integrated 2×2 MIMO antenna with dedicated metal reflector for extended range links • Optimised Beam Directivity – Improved latency and enhanced noise cancellation for cleaner transmission • Industrial Outdoor Design – IP65 weatherproof enclosure for reliable all-weather deployment and 15kV ESD and 6kV lightning protection for added durability • Sturdy Snap-Lock Assembly – Fast installation with secure structural stability in strong winds • Pharos MAXtream TDMA Technology – Increased throughput, improved capacity and reduced latency in busy environments • Pharos Control Management System – Free centralised platform for easy monitoring and configuration • Passive PoE Support – Flexible deployment with simplified installation and cable management SPECIFICATIONS HARDWARE FEATURES • Processor: Qualcomm 560MHz CPU, MIPS 74KC • Memory: 64MB DDR2 RAM, 8MB Flash • Interface: 1× 10/100Mbps Shielded Ethernet Port (LAN/PoE), 1 × Reset Button • Power Supply: 24V Passive PoE via LAN (+4,5pins; -7,8pins) • Voltage Range: 16~27VDC • Transmit Power: up to 25dBm (Adjustable by 1dBm) ANTENNA • Gain: 23dBi • Type: Integrated 2×2 MIMO Directional Antenna with Reflector • Beamwidth: 9° (Azimuth), 7° (Elevation) WIRELESS • Wireless Standards: IEEE 802.11a/n • Frequency: 5.15~5.85GHz • Max Wireless Speeds: – up to 300Mbps (40MHz, Dynamic) – up to 144.4Mbps (20MHz, Dynamic) – up to 72.2Mbps (10MHz, Dynamic) – up to 36.1Mbps (5MHz, Dynamic) • Proprietary Protocol: TDMA Mode with Pharos MAXtream PROTECTION AND ENCLOSURE • ESD Protection: 15kV • Lightning Protection: 6kV • Enclosure: Outdoor PC Stabilised Plastic • Weatherproof Rating: IP65 DIMENSIONS • Unit Dimensions: 366 × 280 × 207mm MANAGEMENT • Management Platform: Pharos Control Centralised Management • Web Management: HTTP/HTTPS • SNMP: v2c • System Tools: Throughput Monitor, Spectrum Analyser, Speed Test, Ping, Traceroute SECURITY • Wireless Security: WPA/WPA2-PSK (AES/TKIP), 64/128/152-bit WEP • Access Control: MAC Filtering, VLAN Tagging (AP Mode) POE ADAPTER • Input: 100~240VAC, 50/60Hz • Output: 24VDC, 0.6A Max • Ports: 1× 10/100Mbps PoE (Power and Data), 1× 10/100Mbps LAN (Data) • Certifications: CE, FCC, IC, RoHS, IP65 SYSTEM REQUIREMENTS • Windows 98SE/NT/2000/XP/Vista/7/8/10, macOS, Linux • Recommended Browsers: Chrome, Safari, Firefox
