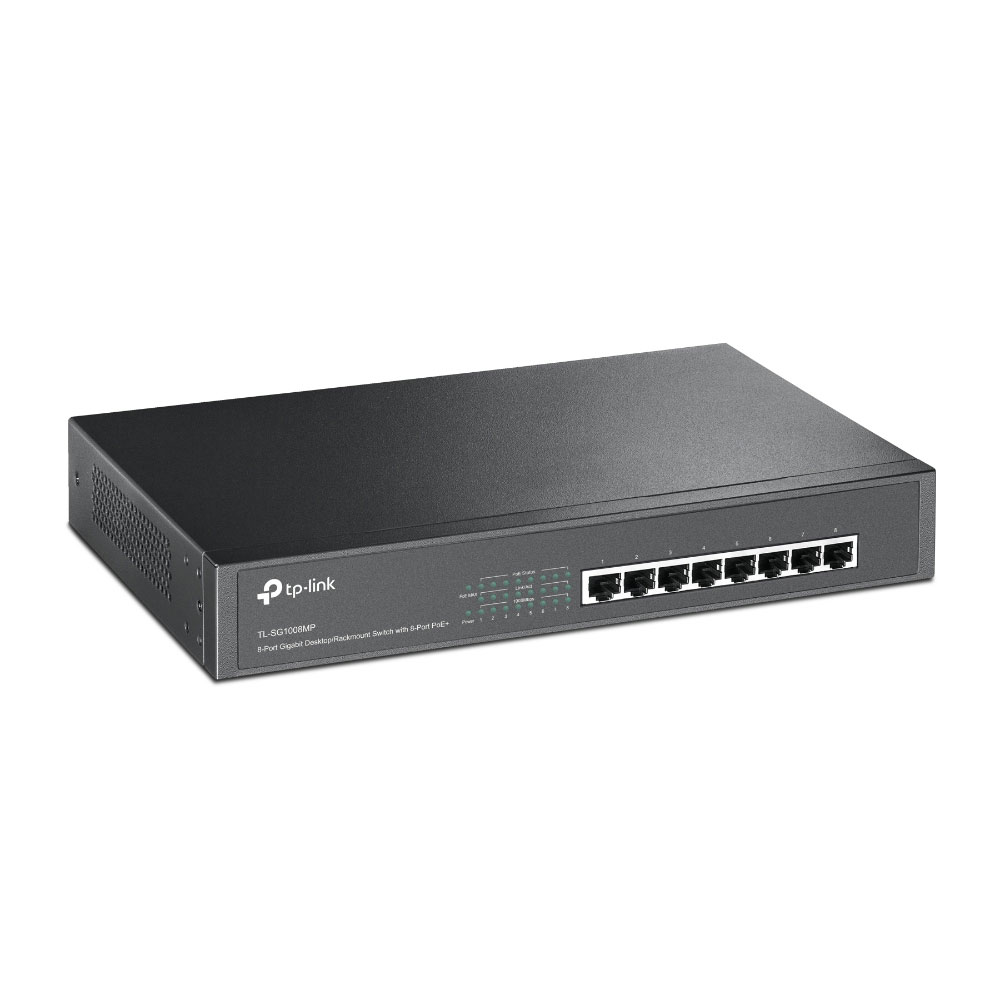

TP-LINK 8-PORT POE+ GIGABIT RACKMOUNT SWITCH

TP-Link TL-SG1008MP 8-Port PoE+ Gigabit Rackmount Switch The TP?Link TL?SG1008MP is an unmanaged switch with 8 Gigabit Ethernet (10/100/1000 Mbps) ports, all of which support PoE+ (802.3af/at). It can be used either as a desktop device or rack-mounted (1U) using the included mounting kit.

Key features:
• 8 10/100/1000Mbps RJ45 ports • Equipped with 8 PoE+ supported ports to transfer data and power over a single cable • Works with IEEE 802.3af/at compliant devices, expanding home and office networks • Innovative energy-efficient technology reduces power consumption by up to 75% • Supports PoE+ standard with total power budget of 126W and up to 30W per port • Plug and play design, no configuration required SPECIFICATIONS HARDWARE FEATURES • Interface: 8 10/100/1000Mbps RJ45 Ports • AUTO Negotiation/AUTO MDI/MDIX • Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • Fan Quantity: 1 • Physical Security Lock: No • Power Supply: 100-240VAC, 50/60Hz • PoE+ Ports(RJ45): Standard: 802.3at/af compliant • PoE+ Ports: 8 Ports • Power Supply: 126W • Backbound Bandwidth: 16Gbps • Mac Address Table: 4K • Buffer Size: 1.5Mbits • Dimensions (WxDxH ): 294 x 180 x 44mm • Mounting: Rack Mountable • Max Power Consumption: 9.89W(220V/50Hz. no PD connected) • 140.67W(110V/60Hz. with 126W PD connected) • Max Heat Dissipation: 33.74BTU/h(no PD connected) • 492.56BTU/h(with 126W PD connected) SOFTWARE FEATURES • Advanced Features: Compatible With IEEE 802.3af/at Compliant PDs • Priority Function • Mac Address Auto-Learning And Auto-Aging • IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode • Transfer Method: Store-And-Forward OTHERS • Certification: FCC, CE, RoHS
