USB TYPE-C 4-IN-1 HUB, HDMI, TYPE-C PD, USB A, AUD

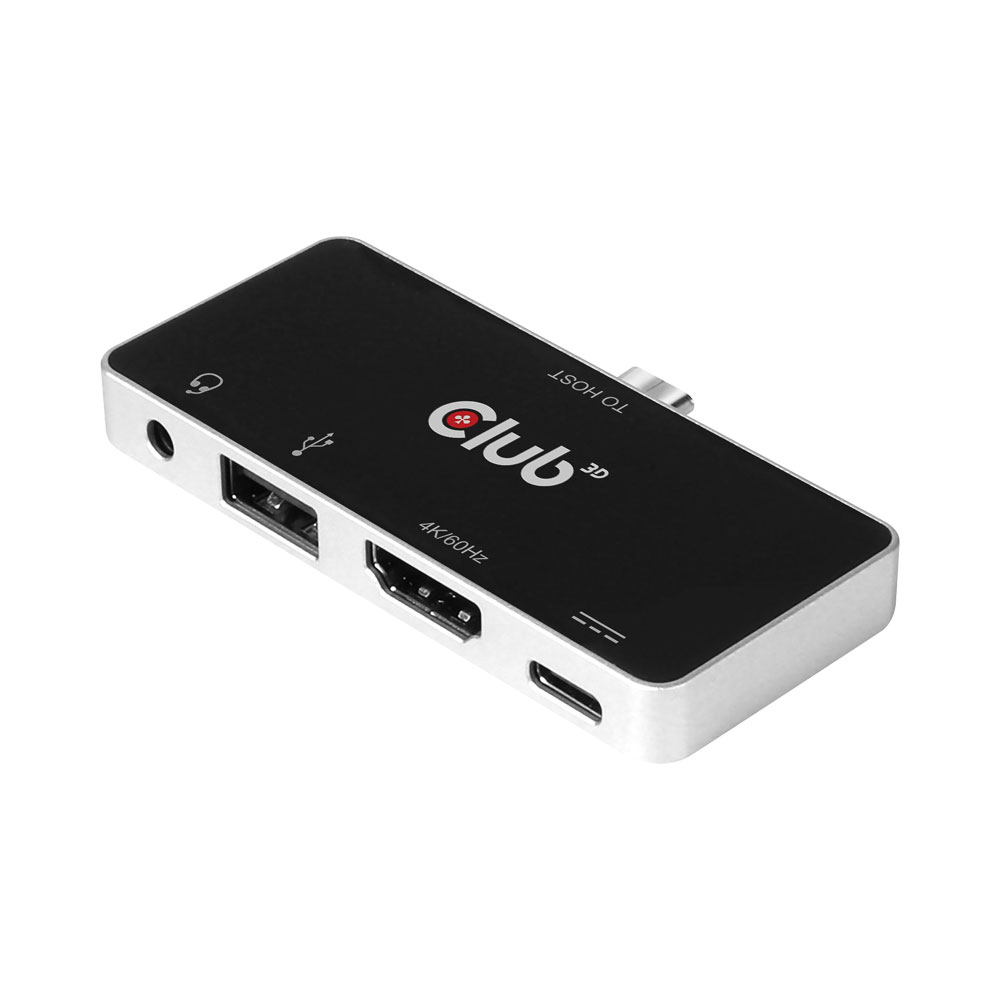

Club D USB Type-C 3.2 4-in-1 Port Replicator – HDMI, Type-C PD, USB-A & Audio (CSV-1591) The Club3D CSV-1591 is a 4-in-1 USB Type-C hub with HDMI, USB Type-A 2.0, 3.5mm audio and USB Type-C PD charging, the design perfectly suits all DP Alt-mode capable devices. With this hub, you can enjoy ultra-high definition video of your host on big screen, enjoy fantastic music, transmit USB 2.0 data and connect USB Type-C PD Adapter to charge the host. This hub can work on all USB Type-C and Thunderbolt 3 hosts that supports DP Alt mode. When working on Thunderbolt 3 host, this product transmits DP signal.

Key features:
• Upstream • 1x USB Type-C Male (Connection to host) Support DP1.2 Alt mode, with bandwidth max 5.4Gbps per lane, 4 lanes 21.6Gbps • Downstream • 1x HDMI Female • Support HDMI max 4K/60Hz 4:4:4 8bit with 18Gbps Bandwidth • Support 6/8/10/12 bit color depth output • Support output pixel format RGB4:4:4/YCbCr4:4:4/YCbCr4:2:2 • Support HDCP 2.2 & HDCP1.4 • Support HDR • 1x USB Type A 2.0, Max 480Mbps bandwidth • Support BC 1.2 with max 7.5W([email protected]) downstream charging • 1x 3.5mm combo audio* • Support 48K/44.1KHz sampling rate • Audio output • *Note: Audio can be output from HDMI or 3.5mm audio port, below explanation illustrates the priority of audio output when both HDMI and 3.5mm audio ports are connected • When source device is connected to this product prior to sink devices, audio outputs from the port that is connected last • When sink devices are connected prior to source device connection, audio outputs from 3.5mm audio port • Available Interfaces • Upstream: 1x USB Type C Male (Host connection) • Downstream • 1x HDMI 4K60Hz Female for connecting to Monitor • 1x USB type A, BC1.2 charging • 1x USB Type-C Female, PD Charging only (Max 100W) • 1x.3.5mm combo audio
