USB TYPE C KVM SWITCH TO HDMI 4K

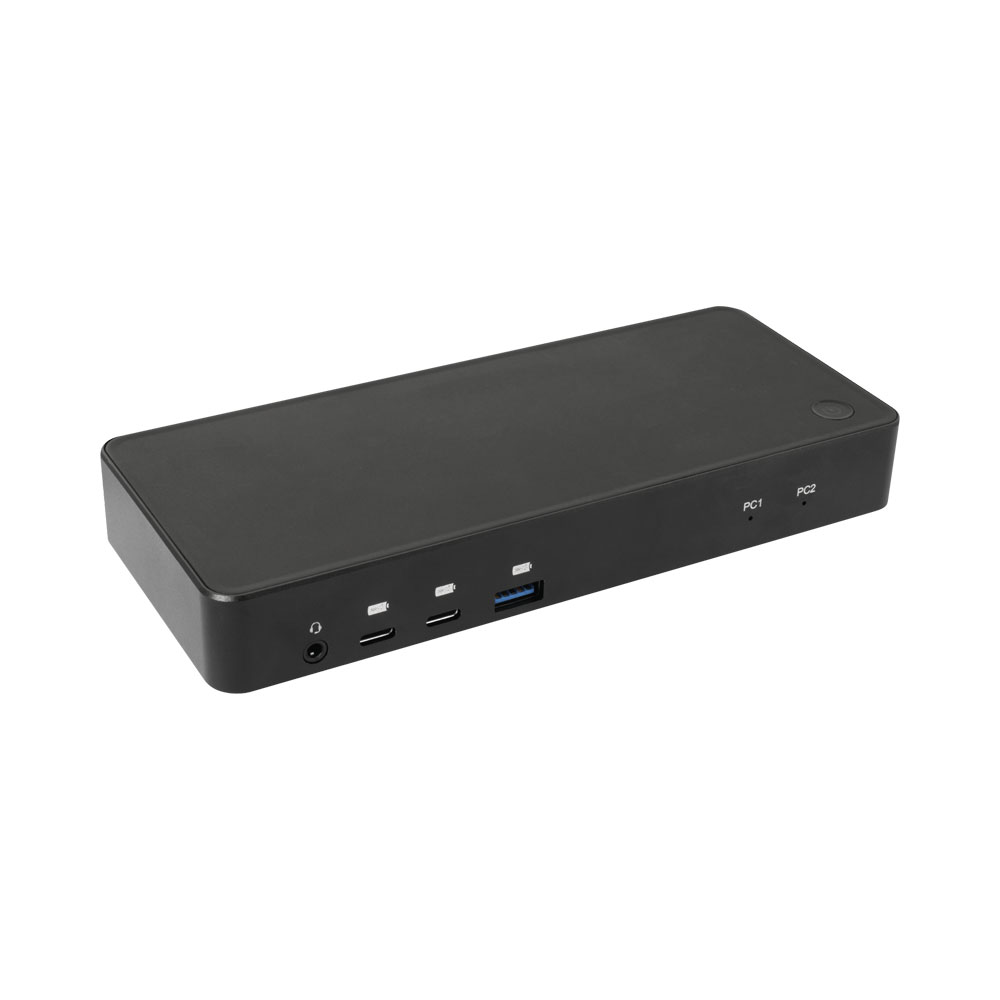

CLUB3D CSV-1585 4K @60Hz MST DisplayPort/HDMI KVM Switch for USB Type-C Hosts The Club3D CSV-1585 is a MST dual (HDMI+DP) display dock with KVM functionality. Two USB Type-C inputs for connecting two different hosts to improve the productivity between the two hosts quickly, just one click on the top button or by clicking the connected cable remote button. 3× USB Type-A plus 3× USB Type-C provides enough connection for external devices with up to 5Gbps data transfer. 120W DC power supply provides 65W Power Delivery (PD) to charge your USB Type-C laptop or host devices. Compatible with any USB Type-C port DP Alt Mode enabled devices, like laptop, desktop PC, tablet, Phone, etc. Supports charging with PC1 and PC2 port, press the POWER SWITCH key to switch input power. Using a 20V 6A 120W DC power adapter to supply power for docking station, along with 65W power charging for PC2 host at the same time. Supply External power for PC1 via USB Type-C1 port, the charging power depends on the PD adapter. Includes a Kensington Lock.

Key features:
• Dual USB Type-C Inputs • Dual DisplayPort/HDMI Output up to 4K @60Hz • Compatible with DP Alt Mode • MST Functionality • Supports KVM function • Dual PD Connections via Power Supply and USB Type-C Connector • Support for Switching LED Indications SPECIFICATIONS Input: • PC 1 USB Type-C • PC 2 USB Type-C • DC 20V 120W from Power Supply Unit Output: • 1× HDMI Female • 1× DisplayPort Female • 1× USB Type-C PD3.0 (100W) for Charging PC1 • 2× USB Type-C Gen1 Data (5Gbps) • 2× USB Type-A Gen1 Data (5Gbps) • 1× USB Type-A Gen1 Data (5Gbps) BC1.2 • 1× Headset 3.5mm Stereo Port • Remote Switching • Ethernet Gigabit RJ-45 Dimensions: • Device Size: 18.5 × 7.9 × 2.8cm • Package Size: 21 × 25 × 5cm Weight: Device: 248g Power Supply: 592g Package: 1078g
