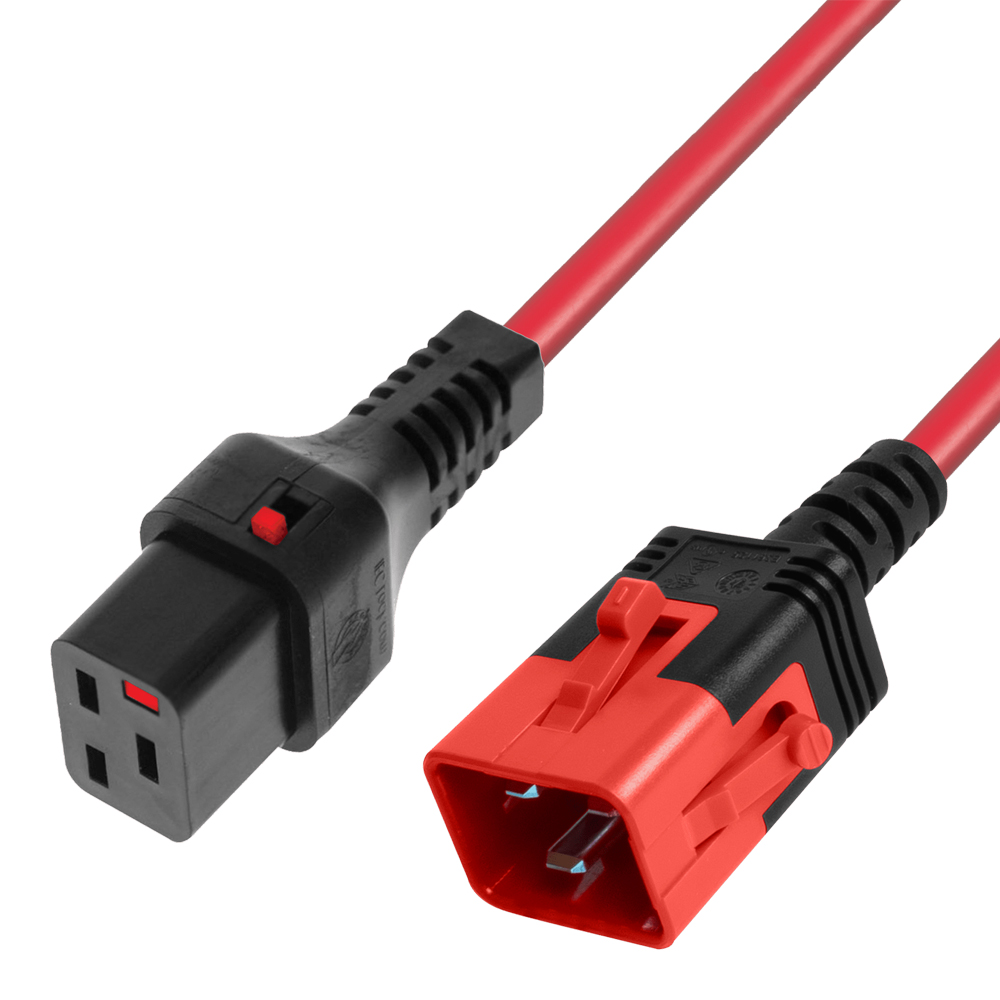

2M C19F-C20 M DUAL LOCKABLE POWER CABLE RED

IEC Lock PC3637 2m C20 Dual-Lock to C19 Locking Power Cable – Red Secure Power Connections for Critical Equipment. The IEC Lock PC3637 is a 2m locking power cable designed to help prevent accidental disconnection in data centres, server rooms, broadcast systems, medical environments and other critical installations. Its C20 Dual-Lock connector secures into compatible C19 outlets using side and bottom locking tabs, while the C19 IEC Lock connector helps maintain a secure connection to standard C20 equipment inlets. Rated at 16A/250V, the cable uses 3-core 1.50mm² H05VV-F / 15AWG SJT construction with bare copper conductors and a durable red PVC jacket. A lock retention force greater than 100N helps protect connected equipment against cables being pulled loose or disconnected through vibration.

Key features:
• Dual Locking Power Connection – Locking connectors at both ends help protect against accidental cable disconnection • C20 Dual-Lock Connector – Side and bottom locking tabs secure the plug into compatible C19 outlets • C19 IEC Lock Connector – Locks securely into compatible standard C20 equipment inlets • Greater Connection Security – Helps prevent cables from being pulled or vibrated out of connected equipment • Greater Than 100N Lock Retention – Provides a secure mechanical connection for critical installations • 16A High-Current Rating – Suitable for compatible servers, PDUs, UPS systems and network equipment • 2m Cable Length – Provides practical reach within racks and equipment installations • Universal Cable Construction – Uses 3-core 1.50mm² H05VV-F / 15AWG SJT cable • Red Cable Jacket – Supports quick identification of individual power feeds and circuits • Quick Release Mechanisms – Dedicated release controls allow intentional cable removal • Class I Protection – Includes protective earth conductor for compatible earthed equipment SPECIFICATIONS • Connector A: 16A C20 Dual-Lock Male Connector • Connector B: 16A C19 IEC Lock Female Connector • Complete Power Cable Rating: 16A/250V • Cable Length: 2m ±20mm • Cable Length Between Connector Bodies: 1833mm ±20mm • Cable Type: 3-Core H05VV-F / SJT • Conductor Cross-Sectional Area: 1.50mm² / 15AWG • Number of Conductors: 3 • Number of Strands: 83 • Conductor Material: 99.9% Bare Copper • Core Colours: Brown, Blue And Green/Yellow • Cable Jacket Material: PVC • Insulation Material: PVC • Cable Colour: Red, RAL3020 • Overall Cable Diameter: 9mm • Jacket Wall Thickness: 0.9mm • Insulation Wall Thickness: 0.76mm • Minimum Bend Radius: 45mm • Rated Temperature: -20~105°C • Lock Retention: Greater Than 100N • Protection Class: Class I • Connector Colours: Black and Red MATERIALS • C20 Housing: PBT • C20 Over-Moulding Cover: PVC • C20 Pins: Brass Strip • C19 Terminal Housing and Handle: Nylon PA66 • C19 Over-Mould: PVC • C19 Lock Lever and Release Button: Polycarbonate STANDARDS AND COMPLIANCE • IEC / BS EN 60320-1:2015 • IEC / BS EN 60320-3:2014 • BS EN 50525-2-11 • UL 60320-1 • UL 60320-3 • CSA C22.2 60320-1-11 • CSA C22.2 60320-3 • AS/NZS 60320-1:2012 • AS/NZS 60320-3:2014 • AS/NZS 60227.5:2003 • UL62 • UL1581 • C22.2 No. 49 • UKCA, CE, UL, CSA, ENEC and RCM Markings • Manufactured Under ISO 9001:2015 Process Controls
